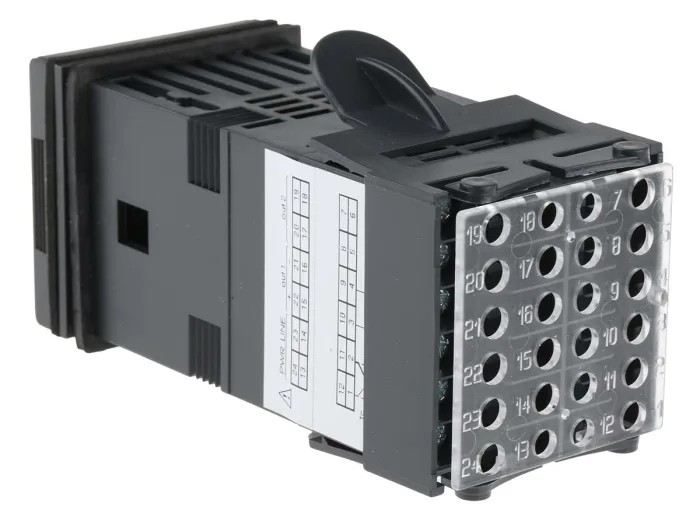

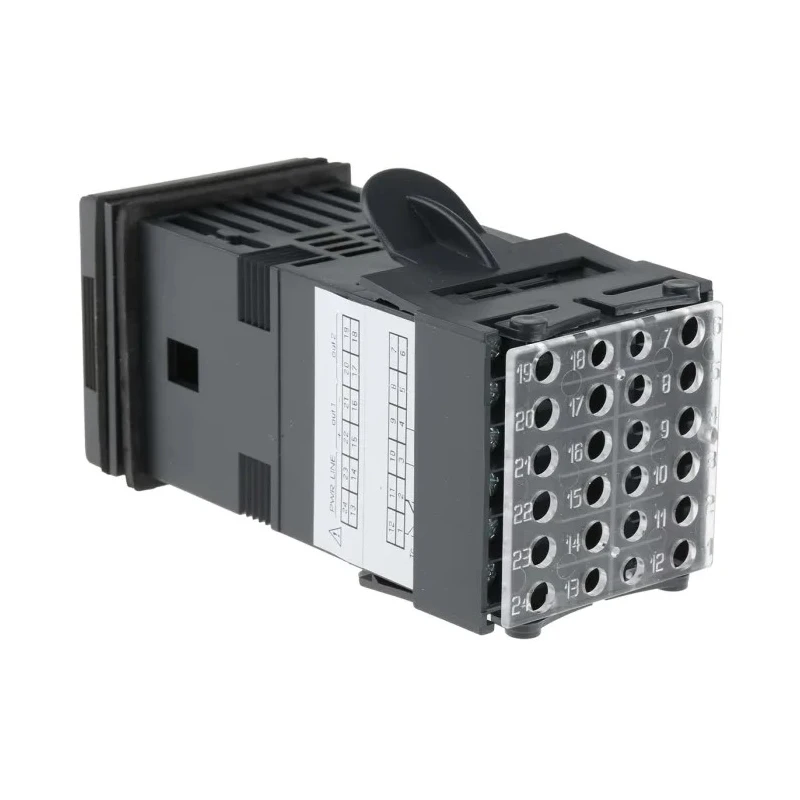

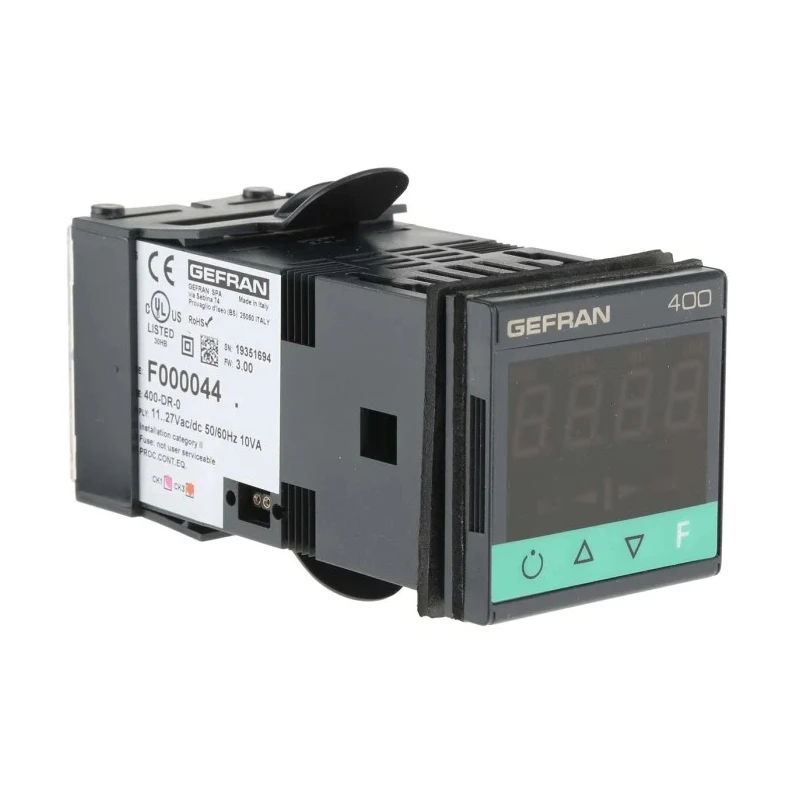

Gefran 400 DIN Rail PID Temperature Controller 8 Input, 2 Output Relay Logic 27V On-Off 400-DR-0-000

Free Delivery in India | Lowest Global Shipping Charges

Gefran 400 DIN Rail PID Temperature Controller 8 Input, 2 Output Relay Logic 27V On-Off 400-DR-0-000

Name: Gefran 400 DIN Rail PID Temperature Controller 8 Input, 2 Output Relay Logic 27V On-Off 400-DR-0-000
Brand: Gefran
SKU: 372871
Price: 461.33 USD
Availability: InStock



Category Temperature Controller Brand Gefran Condition New

Specifications

Country of Origin	Italy
Display Type	Single
Brand	Gefran
Length	48mm
Model	400-DR-0-000
IP Rating	IP65
Width	48mm
Mount Type	DIN Rail
Number of inputs	8
Output type	Relay, Logic
Series	400
Input Type	RTD, Thermocouple, PTC
Maximum Operating Temperature	50°C
Control Type	On-Off
Minimum Operating Temperature	0°C
Maximum Current	5A
Number of outputs	2
Terminal type	Screw
Maximum Voltage	240V
Standards/Approvals	CE, UL
Maximum Supply Voltage	27V
Digital Comms	RS232
Panel Depth	99mm

Key Features

Supports universal input types including RTD, Thermocouple, and PTC sensors.
Equipped with 2 relay outputs suitable for hot, cold, or alarm functions.
Operates with 11 to 27 V ac/dc auxiliary power supply ensuring flexible integration.
IP65 rated facia provides robust protection for industrial environments.
Compact 48 x 48 mm dimension with DIN Rail mount for streamlined installation.
Includes user-configurable alarms and a two-colour LED deviation bar graph for program deviation indication.
Features auto and manual control functions with soft start and self-tuning capabilities.
Complies with CE and UL standards ensuring quality and safety compliance.

Product Description

Gefran 400-DR-0-000 is a DIN Rail mounted PID Temperature Controller designed with 8 universal inputs and 2 relay outputs featuring logic On-Off control with a 27V rated supply. It supports various sensor inputs, including RTD, Thermocouple, and PTC types, offering high versatility in process temperature control.

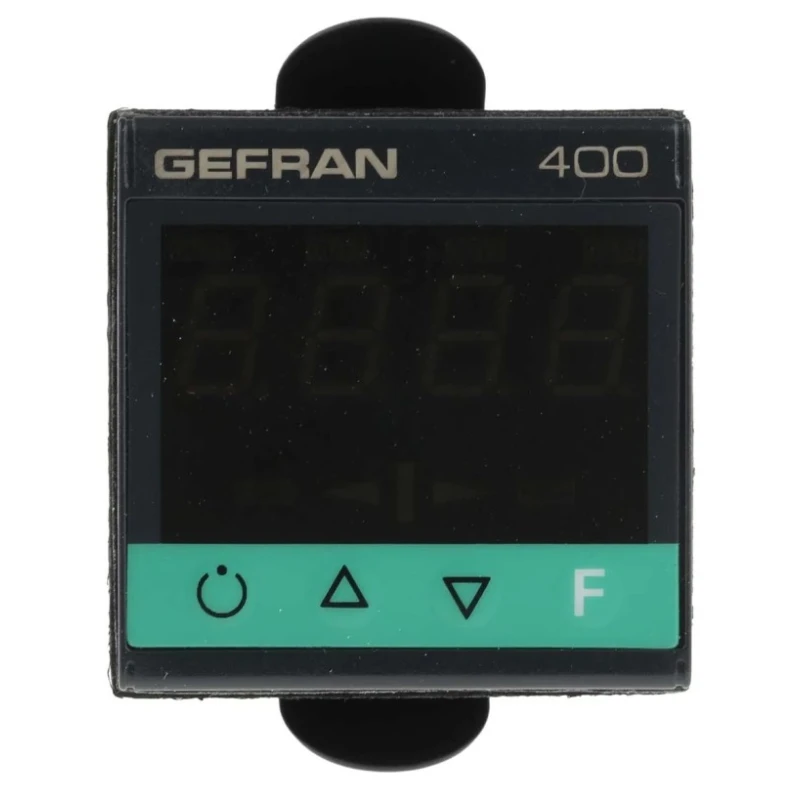

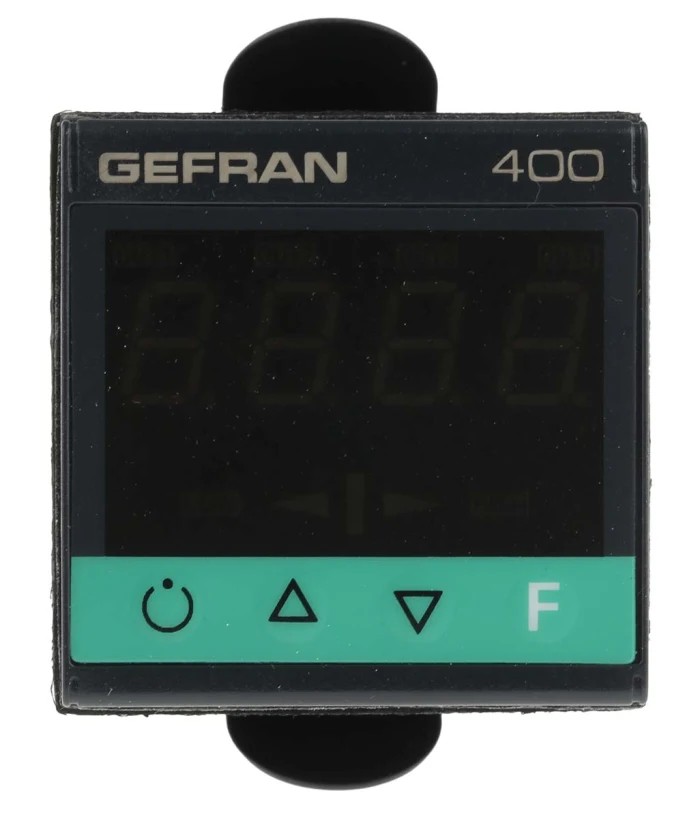

This model includes an easy-to-read facia with a 4-digit green LED display and control keys allowing straightforward configuration. The two-colour LED deviation bar graph provides visual feedback on program deviations. Equipped with both auto and manual operational modes alongside soft start and self-tune functions, this controller ensures precise temperature regulation and flexible operation.

The 400 series controller is IP65 rated on the facia making it well-suited to industrial and manufacturing environments requiring robustness against dust and water. Its compact footprint (48 mm width x 48 mm height) and DIN Rail mounting simplify panel integration. User-configurable alarms enhance safety and process monitoring capabilities.

Typical industries and applications include packaging machinery, ovens, jewelers' equipment, rubber presses, labelling machines, food processing plants, and magnetic card printing machines. The controller is powered by an auxiliary 11 to 27 V ac/dc supply and accepts a maximum voltage of 240 V with a maximum current of 5 A.

Supports multiple universal input sensors (RTD, Thermocouple, PTC). Two relay outputs for heating and cooling control or alarms. Robust IP65 facia for harsh industrial settings. Auto/manual control modes with soft start and self-tuning.

CE and UL approved for international compliance. Compact 48 x 48 mm housing for easy DIN Rail installation. Digital communication via RS232. User-configurable alarms for process safety monitoring. Suitable for varied temperature control applications.

EnvMart offers detailed listings in the Temperature Controllers category for industrial automation solutions like the Gefran 400 series, providing reliable and precise control devices for diverse temperature regulation tasks.
