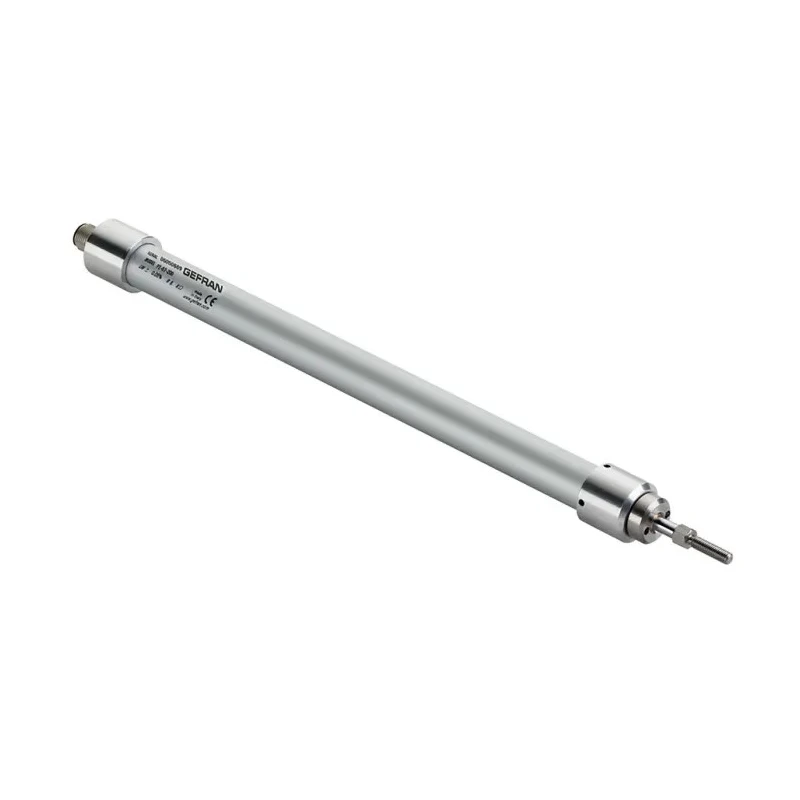

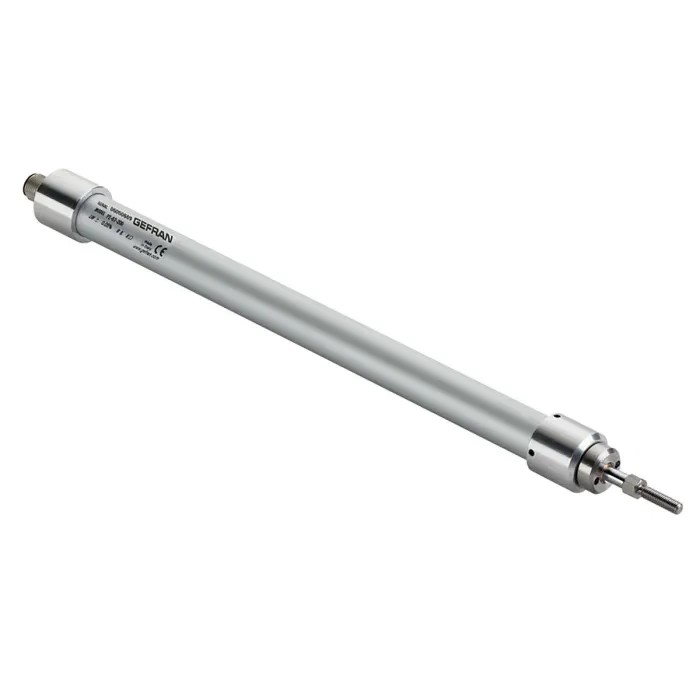

Gefran Series Linear Transducer Connector With Anodised Aluminium and Polyamide 66 Housing, 40V Maximum Supply Voltage PZ67

Gefran PZ67 Linear Transducer Connector PZ67 series is a potentiometric sensor with cylindrical housing constructed from anodised aluminium and polyamide 66, offering excellent mechanical strength and corrosion resistance. It operates at a maximum supply voltage of 40V and maintains a resistance of 5kΩ with tolerance of ±20 %. The device has an overall width of 168.5mm, height of 34mm, and depth of 25.5mm, designed with a compact form factor suitable for industrial automation uses.

Featuring an IP67 protection rating, this Linear Transducer connector is well-suited for applications exposed to liquids, dust, and steam environments such as in cutting, glass washing, grinding, and sand-blasting machines. The maximum operating temperature rating of 100°C makes it reliable in elevated thermal conditions commonly found in manufacturing and processing industries.

The sensor connects via a connector interface and includes terminal blocks for secure and straightforward attachment. It complies with CE and RoHS environmental and quality standards, ensuring the device meets regulatory requirements for safety and sustainability.

Manufactured in Italy, the Gefran PZ67 exemplifies high craftsmanship and precision engineering, designed to deliver reliable linear sensing performance in industrial automation systems. This product is ideal for integration into machines requiring robust, accurate position feedback in demanding environments.

This transducer features a robust anodised aluminium and polyamide 66 housing for durability. Compact design ensures versatile installation in confined spaces. High IP67 rating protects against liquids and dust ingress, suitable for harsh environments.

Resistance of 5kΩ with ±20 % tolerance for precise measurements. Maximum operating temperature of 100°C allows use in elevated temperature conditions. Ideal for cutting, glass washing, grinding and sand-blasting machinery applications.

CE and RoHS compliant, ensuring adherence to industry standards. Connector interface type with terminal blocks supplied for easy attachment. Manufactured in Italy with stringent quality control. Explore the Gefran range and related sensors on EnvMart for comprehensive automation solutions.
