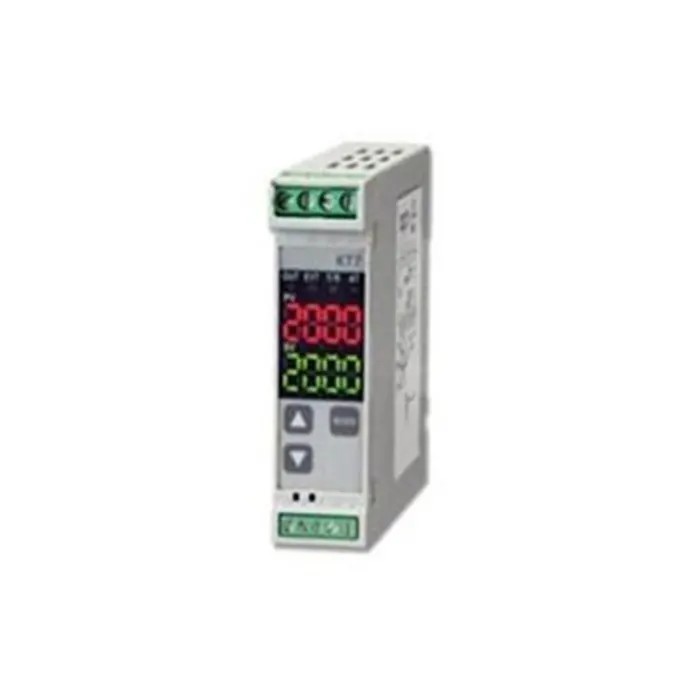

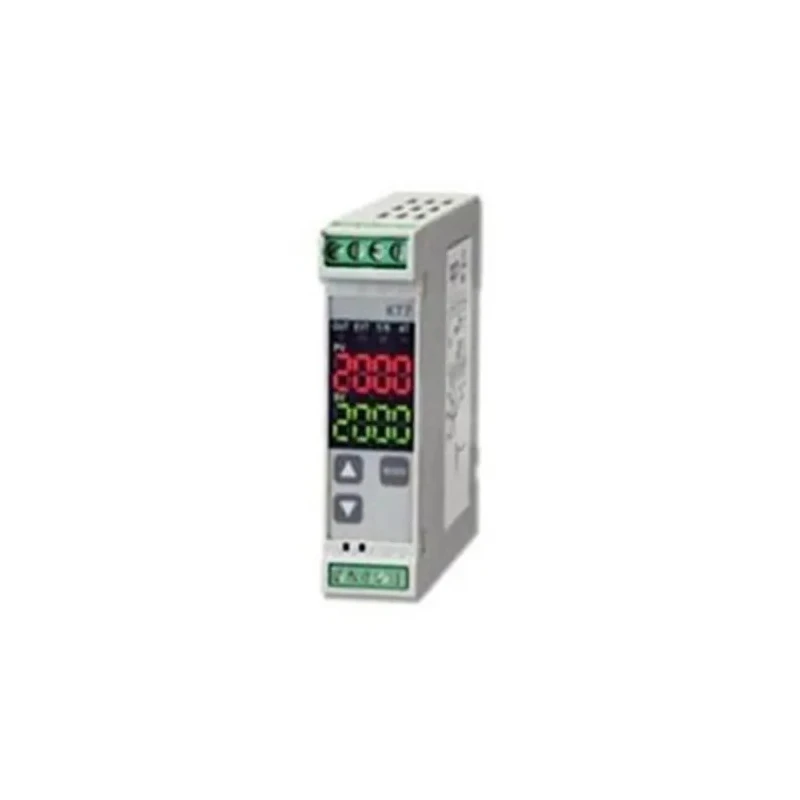

Panasonic KT7 DIN Rail PID Temperature Controller 1 Input 1 Output Relay 24V AC/DC On-Off AKT7211100

Panasonic AKT7211100 KT7 DIN Rail PID Temperature Controller is a professional-grade device ideal for precise temperature regulation in industrial automation, process control, and HVAC systems. This model features a single input and a relay output, supporting thermocouple sensors and delivering reliable on-off control with 24V AC/DC supply voltage.

The device includes a dual LED LCD display and membrane sheet keys, allowing users to view actual and reference temperature values at a glance and configure parameters easily. It is IP66 rated, offering robust protection against dust and water, which makes it suitable for harsh industrial environments.

Utilizing advanced P-, PD, PI, and PID control algorithms, the controller provides accurate temperature management and includes an auto-tuning feature for swift installation and adjustment. It supports RS485 digital communication enabling integration into larger control systems and remote monitoring capabilities.

The compact design mounts conveniently on a DIN rail, with overall dimensions of 22.5 mm length, 75 mm width, and 100 mm panel depth. The KT7 series by Panasonic offers an energy-efficient solution without compromising performance and includes optional software from Panasonic for parameter setting and data logging.

This temperature controller operates effectively within an ambient temperature range of 0°C to 50°C and meets CE standards, ensuring compliance with global quality benchmarks. Installation requires vertical mounting to maintain the IP66 rating and reliable operation.

This controller supports 1 input and 1 relay output for flexible temperature control. Equipped with an LCD display and membrane sheet keys for user-friendly interface. IP66 rating protects the unit in challenging industrial conditions.

RS485 communications allow integration and monitoring within industrial networks. Features multiple control algorithms including PID and auto-tuning for accuracy. Compatible with thermocouple and other standard temperature sensors.

Compact DIN rail mount fits standard electrical panels and control cabinets. Wide operational temperature range from 0°C to 50°C ambient conditions. Low power operation based on 24V AC/DC supply voltage. Certified with CE mark for international industrial use.

Panasonic KT7 series Temperature Controllers are widely used across industrial manufacturing, HVAC, laboratory equipment, process control, and automation sectors. These reliable controllers help maintain process quality, enhance equipment lifespan, and support energy management strategies. Explore more high-quality temperature control solutions with EnvMart’s comprehensive industrial catalog.
