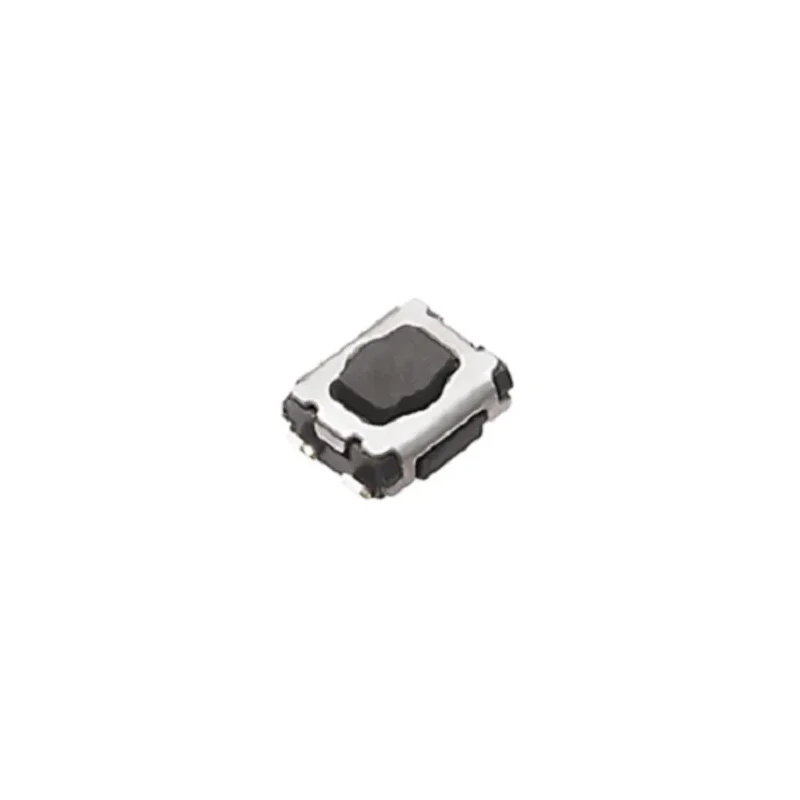

Panasonic Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAU02Q
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.7mm |
| Model | EVPAAU02Q |
| Mount Type | Surface |
| Series | EVPA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | Grey |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 7N |
| Mechanical Life | 100000Cycles |
Key Features
- The switch features a push-on operation and J bend terminal type for easy mounting.
- Its actuator length is 2.2 mm with straight orientation for consistent performance.
- The maximum operating temperature is 85°C, suitable for various industrial environments.
- The operating force required is 7 N with a mechanical life rated at 100000 cycles.
- This tactile switch is ideal for use in portable electronic equipment and keyless entry systems.
- The compact dimensions enable surface mounting with a height of 1.7 mm.
- The contact configuration is SPST ensuring simple single-pole single-throw switching functionality.
Product Description
Panasonic EVPAAU02Q Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface mount tactile switch is designed for reliable operation in industrial and electronic applications.
This tactile switch comes with a grey push plate actuator measuring 2.2 mm in length and features a push-on switch operation. The switch contacts have a rating of 20 mA at 15 V DC, making it suitable for low voltage control circuits.
Its compact design features an external dimension of approximately 3.5 mm by 2.9 mm, and a height of 1.7 mm, allowing it to be surface mounted on various electronic devices and circuit boards.
The actuator orientation is straight with a J bend terminal type for ease of mounting and soldering. It can operate at temperatures up to 85°C and has a mechanical life expectancy of 100,000 cycles, ensuring longevity and durability in demanding environments.
Panasonic's EVPA series tactile switches are ideal for use in portable electronic equipment, keyless entry systems, and other industrial applications requiring snap action/push-on SPST switching. The switch requires an operating force of 7 N to actuate.
The push plate actuator offers a grey color for clear visual identification. Designed for surface mounting to optimize PCB real estate. Operates reliably across a wide temperature range from -40°C to +85°C. Rated for switching small currents and voltages in control applications.
Mechanical endurance rated for 100,000 actuations or cycles. Compact size supports use in compact and portable electronic assemblies. Manufactured in Japan ensuring high quality and standards.
The Panasonic EVPAAU02Q Tactile Switch is an essential component for engineers and designers looking for high quality push-button switch options. Its proven reliability and compact design make it well-suited for industrial automation, consumer electronics, and other demanding applications.Explore the extensive range of Panasonic switches and other electrical components on EnvMart for trusted quality and industrial-grade performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this tactile switch is 85°C, making it suitable for various industrial environments.
The actuator length of this model is 2.2 mm, designed for push-on operation.
The contact configuration of this switch is SPST, which ensures simple single-pole single-throw switching functionality.
The operating force required to actuate this tactile switch is 7 N.
This tactile switch has a mechanical life rated at 100,000 cycles, ensuring longevity in use.
The external dimensions of this tactile switch are approximately 3.5 mm by 2.9 mm, with a height of 1.7 mm, allowing for surface mounting.
This model features a J bend terminal type, which facilitates easy mounting and soldering.
The contact current rating for this tactile switch is 20 mA at 15 V DC, suitable for low voltage control circuits.
The actuator color of this model is grey, providing clear visual identification.
This tactile switch is ideal for use in portable electronic equipment and keyless entry systems.
The compact design allows for surface mounting, optimizing PCB real estate in electronic devices and circuit boards.
The actuator orientation of this model is straight, which contributes to its consistent performance.
