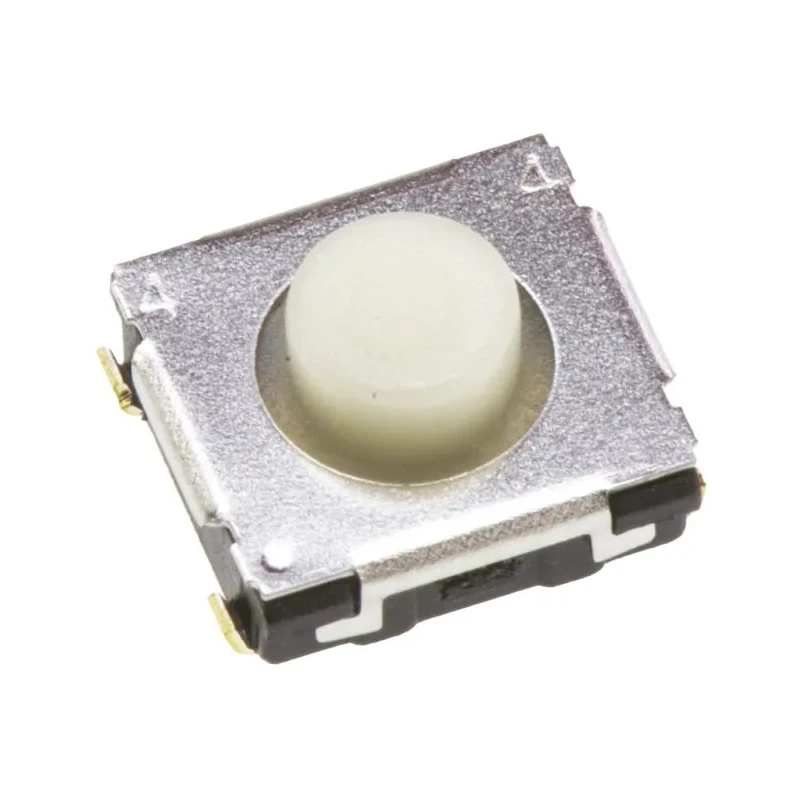

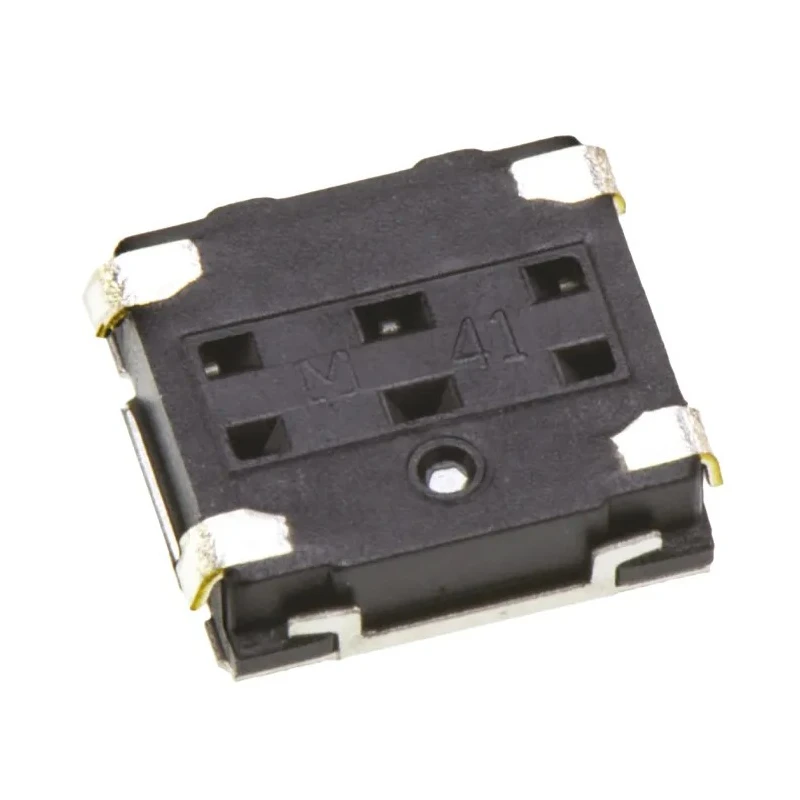

Panasonic White Tactile Switch Push Plate, 3.1 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQQ2P03W

Name: Panasonic White Tactile Switch Push Plate, 3.1 mm Actuator Length, SPST 20mA 15 V dc Surface Mount EVQQ2P03W
Brand: Panasonic
SKU: 430672
Price: 32.91 INR
Availability: InStock



Category Tactile Switches Brand Panasonic Condition New

Specifications

Country of Origin	India
Brand	Panasonic
Height	3.1mm
Length	6.5mm
Model	EVQQ2P03W
Width	6mm
Mount Type	Surface
Series	EVQQ2
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	White
Actuator Length	3.1mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA
Operating Force	1.6N
Mechanical Life	1000000Cycles

Key Features

Provides a sharp and clear tactile click feel for reliable switching.
Single Pole Single Throw (SPST) normally open contact configuration.
Compact surface mount design measuring 6.5 mm length and 6 mm width.
Operates under temperatures ranging from -40°C to 85°C.
Switch contact current rating of 20mA at 15 V dc for low power applications.
White push plate actuator style for easy user interface.
Mechanical life rated at 1,000,000 cycles ensuring durability.
Operating force is 1.6 Newtons for consistent actuation.

Product Description

Panasonic EVQQ2P03W White Tactile Switch Push Plate is designed for compact surface mount applications requiring a momentary snap action switch. Featuring a 3.1 mm actuator length and a push plate style actuator, it delivers a sharp, distinct click with each actuation. This tactile switch utilizes a SPST contact configuration allowing for single pole single throw operation rated at 20mA and 15 V dc, suitable for low current signaling and control circuits.

The compact physical dimensions include a length of 6.5 mm, width of 6 mm, and height of 3.1 mm, making it ideal for space-constrained electronic devices. It is rated for a long mechanical life of 1,000,000 cycles ensuring sustained reliability in industrial and consumer electronics. The operating force of 1.6 Newtons offers consistent tactile feedback for the end user.

This switch performs reliably across a wide temperature range from -40°C to 85°C, making it suitable for various environments including industrial automation, consumer electronics, and instrumentation. The surface mount terminal type facilitates automated PCB assembly processes, improving manufacturing efficiency.

Panasonic’s EVQQ2 series tactile switches are known for low contact resistance and minimal bounce noise, enhancing signal integrity in sensitive applications. They are RoHS compliant, meeting environmental regulations and standards for hazardous substance restrictions.

Sharp tactile click feel enhances user experience. SPST contact configuration for simple on/off control. Compact surface mount design saves PCB space. Durable construction rated for 1,000,000 mechanical cycles. Wide operating temperature range from -40°C to 85°C.

Low operating force at 1.6N for easy actuation. RoHS compliant for environmental safety. Suitable for industrial, automation, consumer electronics, and laboratory applications.

The set of tactile switches offers versatility and durability suited for industrial, laboratory, electronics manufacturing, and automation applications. Panasonic’s reliable quality combined with precise mechanical design ensures optimal performance in control panels, keyboards, and user interface circuits.
