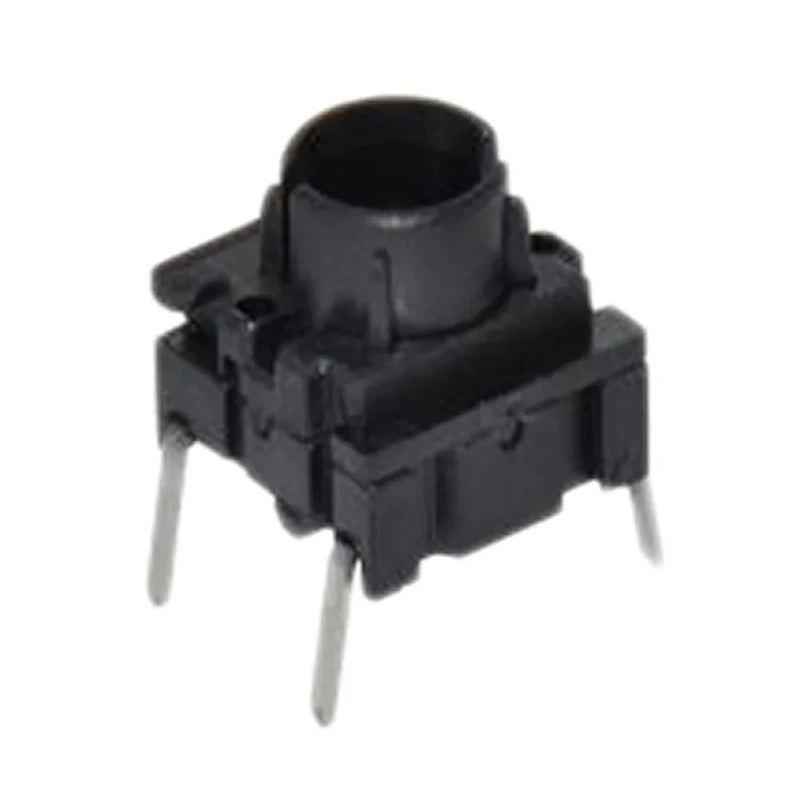

MEC IP67 Tactile Switch Side Cap 6.5 mm, SPST 50mA 24 V dc, PCB Mount IP67 3F Series

Free Delivery in India | Lowest Global Shipping Charges

MEC IP67 Tactile Switch Side Cap 6.5 mm, SPST 50mA 24 V dc, PCB Mount IP67 3F Series



Category Tactile Switches Brand MEC Condition New

Specifications

Country of Origin	Denmark
Brand	MEC
Height	10mm
Length	12.5mm
Model	IP67
IP Rating	IP67
Width	10.4mm
Mount Type	PCB
Series	3F
Maximum Operating Temperature	160°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-40°C
Terminal type	Terminal
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Length	6.5mm
Contact DC Voltage	24V dc
Actuator Style	Side Cap
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	3.5N
Mechanical Life	10000000Operations

Key Features

The switch features a side cap actuator with 6.5 mm length for precise tactile feedback.
It supports a contact DC voltage rating of 24 V dc at 50 mA current.
The switch has an IP67 rating, making it highly resistant to dust and water ingress.
Operating temperature ranges from -40°C to 160°C ensuring reliability in extreme environments.
Mechanical life expectancy of 10 million operations guarantees long-term durability.
The actuator orientation is straight, with a momentary on-off switch configuration.
Illuminated design enhances visual confirmation during operation.
Compact dimensions include length 12.5 mm, width 10.4 mm, and height 10 mm suitable for tight PCB layouts.

Product Description

MEC IP67 model 3FTH98020 tactile switch features a side cap actuator measuring 6.5 mm, designed for PCB mounting with a Single Pole Single Throw (SPST) momentary on-off configuration.

This switch is rated for 24 V dc contact voltage and 50 mA switching current, making it ideal for low power electronic control circuits.

The IP67 ingress protection rating ensures the switch is fully dust-tight and protected against temporary immersion in water, suitable for harsh industrial and electronic applications.

Key physical dimensions include a length of 12.5 mm, width of 10.4 mm, and height of 10 mm, enabling compact installations on printed circuit boards. Operating in temperatures from -40°C up to 160°C, the switch withstands demanding thermal conditions.

The actuator is illuminated and mechanically rated for 10 million operations, ensuring durability and reliable tactile feedback with a 3.5 N operating force. MEC 3FTH98020 is compliant with RoHS standards, confirming it meets environmental safety requirements.

The switch integrates a side cap actuator with precise 6.5 mm length for effective manual operation. It provides durable performance with a mechanical life of 10 million operations. Its IP67 rating guarantees dust and water resistance for demanding environments.

Illuminated design aids in operation visibility and status indication. Compact size facilitates use in space-constrained PCB assemblies. Supports momentary on-off switching with a consistent operating force of 3.5 N. Wide operational temperature range from -40°C to 160°C ensures reliability.

Complies with RoHS environmental standards.

This tactile switch is suitable for use in industrial controls, consumer electronics, instrumentation, and other applications requiring reliable, compact, and sealed momentary switches.
