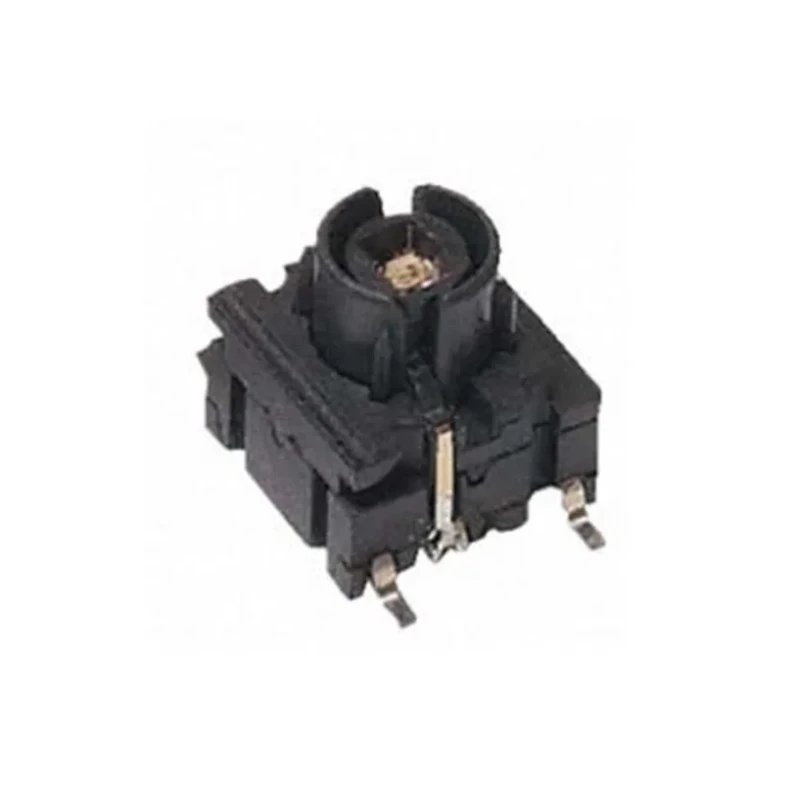

MEC IP67 Blue Tactile Switch Push Button, 10.4 mm Actuator Length, SPST 50mA 24V DC Surface Mount IP67 4F Series

MEC IP67 Blue Tactile Switch model 4FSH901 is a high-quality, surface mount push button switch designed for electrical, automation, and industrial control applications. Featuring a blue actuator with a length of 10.4 mm, this momentary SPST switch supports a contact current of 50mA at 24 V DC power, suitable for various low-current switching tasks.

The switch benefits from an IP67 ingress protection rating, ensuring superior resistance against dust and immersion in water, making it ideal for demanding environments. It is part of the 4F series and includes integrated LEDs to provide high luminous intensity for enhanced visibility during operation.

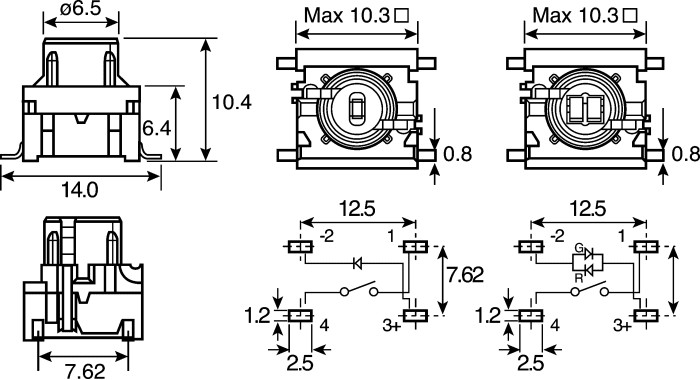

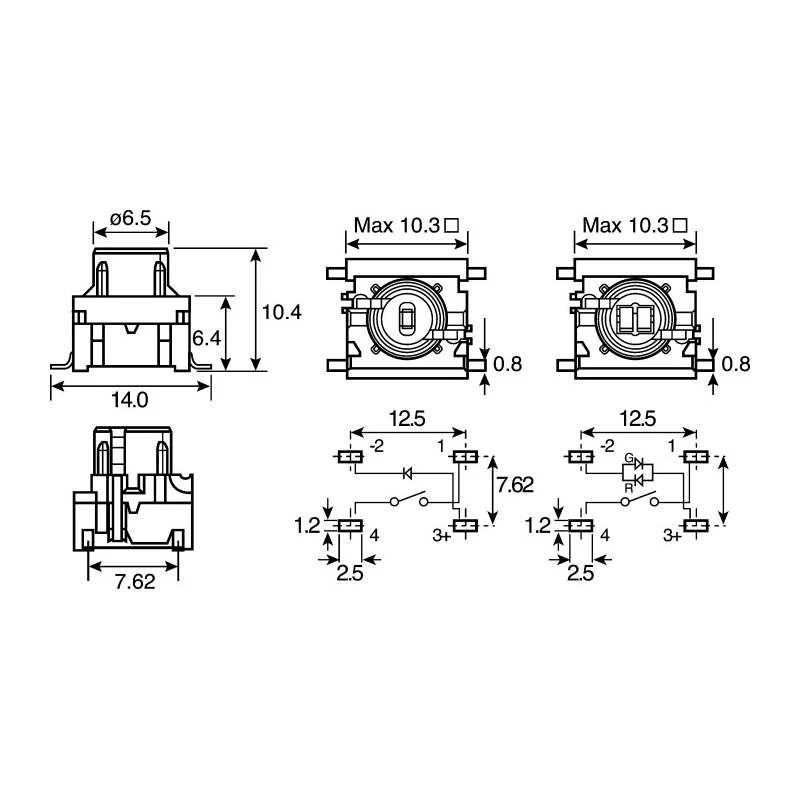

With a compact form factor measuring 14 mm in length, 10.3 mm in width, and 10.4 mm in height, the switch easily mounts on surface mount terminals and features a right angle push button actuator style. The illuminated actuator and right angle orientation improve user interface clarity and accessibility in control panels and keyboards.

The mechanical durability of this switch is exceptional, rated for 10 million operations, assuring long-term reliability in industrial and commercial applications. It operates effectively within a wide temperature range from -40°C up to 125°C, suitable for harsh environmental conditions. Actuation requires an operating force of 2.5N, balancing responsiveness and accidental operation prevention.

Compliant with RoHS standards and manufactured in Denmark, this tactile switch reflects high quality and environmentally responsible manufacturing processes. Its precise design and ruggedness make it well-suited for use in automation systems, electrical equipment, instrumentation, and various industrial machinery requiring momentary tactile feedback and reliable switching performance.

The switch has a single-pole-single-throw (SPST) contact configuration. Terminal type is surface mount, facilitating PCB assembly. Includes an integrated LED for illumination. IP67 sealing protects against dust and water ingress.

Mechanical life rated at 10 million operations for extended durability. Compact dimensions allow for versatile mounting options. Operates across a broad temperature range of -40°C to 125°C. Operating force is 2.5 Newtons for reliable tactile feedback.

Manufactured to RoHS compliance standards. Explore more Tactile Switch options in the Electronics & Electricals category at EnvMart for advanced control solutions and high-quality components.
