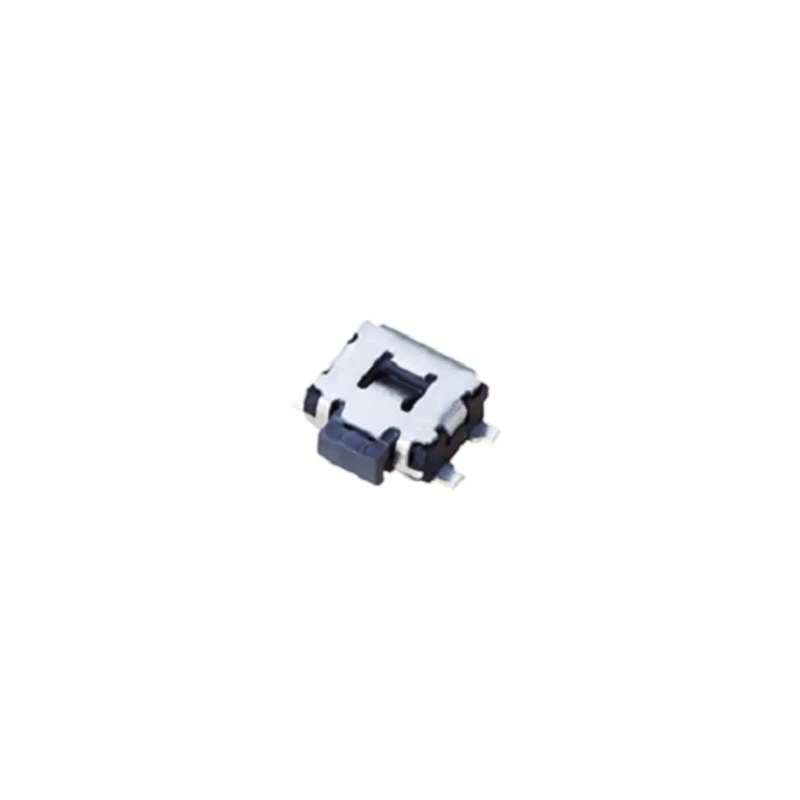

Panasonic Black Grey Tactile Switch Push Plate SPST 50mA 12 V dc Surface EVQP7C01P

Name: Panasonic Black Grey Tactile Switch Push Plate SPST 50mA 12 V dc Surface EVQP7C01P
Brand: Panasonic
SKU: 430320
Price: 24.19 INR
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	China
Brand	Panasonic
Height	1.35mm
Model	EVQP7C01P
Mount Type	Surface
Series	EVQP
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Terminal type	Straight
Switch Operation	Push-On
Actuator Colour	Black, Grey
Actuator Length	1.7mm
Contact DC Voltage	12V dc
Actuator Style	Push Plate
Switch Contact Current	50mA

Key Features

The switch provides robust push-on operation with a push plate actuator style.
Designed for low current applications with a contact DC voltage of 12 V dc and contact current of 50mA.
It features a surface mount type with a maximum operating temperature of 70°C.
The tactile switch is part of the EVQP series, offering high reliability for portable electronic equipment.
Its slim height of 1.35 mm enables compact integration in devices.
Electrically rated for resistive loads and mechanical operating forces of 1.6 N or 2.2 N.
Manufactured in China and suitable for various electrical and automation applications.

Product Description

Panasonic EVQP7C01P is a black and grey tactile switch push plate designed with a 1.7 mm actuator length and SPST contact configuration. This surface mount tactile switch supports a contact DC voltage of 12 V dc and a contact current of 50mA, making it ideal for low power electronic devices.

The push plate actuator style ensures a reliable push-on operation with a mechanical operating force between 1.6 N and 2.2 N. Its compact dimensions include a height of 1.35 mm, allowing seamless integration into slim portable electronic equipment.

Part of the EVQP series, the switch offers enhanced push plate strength and is built to operate within a temperature range from -20°C to +70°C, ensuring performance stability in diverse environments.

This switch is specifically designed for resistive load applications and features straight terminal types for easy PCB mounting. It is manufactured in China with consistent quality standards.

The switch has a black and grey actuator color, offering good visibility and differentiation. Its surface mount design simplifies installation on printed circuit boards. Electrical rating supports 10 μA 2 V DC to 50 mA 12 V DC resistive loads.

Mechanical forces ensure tactile feedback suited for portable and industrial applications. Maximum operating temperature of 70°C supports use in moderate thermal environments. Push plate style actuator enhances durability during repeated use.

This Panasonic tactile switch is widely applicable in electronics, electrical automation, and keypad switching systems, providing reliable contact control in compact form factors. Explore EnvMart’s extensive range of Panasonic Tactile Switches and other electronic components to suit your industrial and laboratory automation needs.
