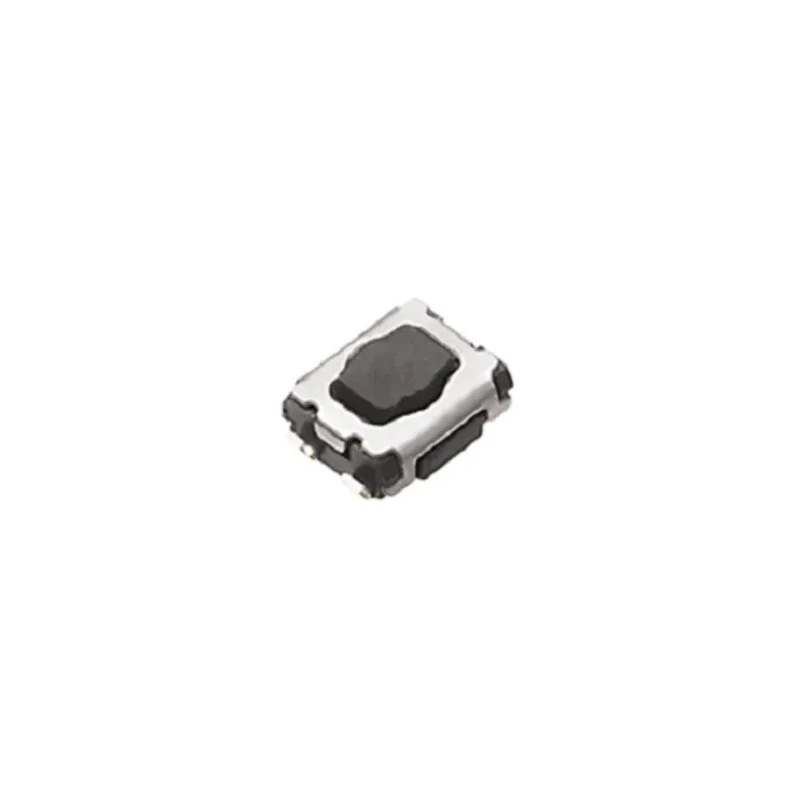

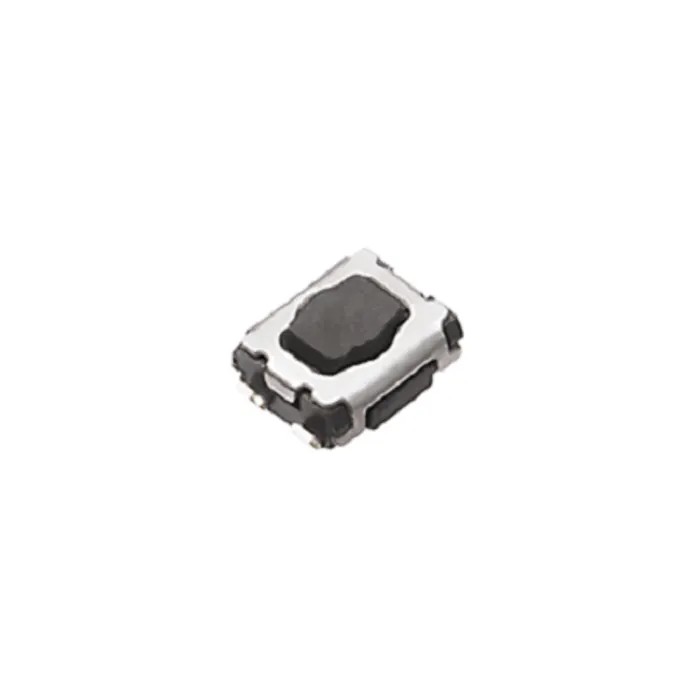

Panasonic Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAN02Q

Free Delivery in India | Lowest Global Shipping Charges

Panasonic Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAN02Q

Name: Panasonic Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAN02Q
Brand: Panasonic
SKU: 430311
Price: 62.47 INR
Availability: InStock



Category Tactile Switch Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Height	1.7mm
Model	EVPAAN02Q
Mount Type	Surface
Series	EVPA
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Terminal type	J Bend
Switch Operation	Push-On
Actuator Colour	Grey
Actuator Length	2.2mm
Contact DC Voltage	15V dc
Actuator Style	Push Plate
Switch Contact Current	20mA
Operating Force	5N

Key Features

The actuator has a length of 2.2 mm and is colored grey.
This SPST switch supports a maximum contact current of 20 mA at 15 V dc.
The switch operates with a push plate actuator style and J bend terminal type.
It features a maximum operating temperature of 85°C ensuring reliability in demanding conditions.
The compact height of 1.7 mm and dimensions of 3.5 mm by 2.9 mm enable use in small electronic devices.
The switch operates with an operating force of 5 N for precise tactile feedback.
Manufactured in Japan, the switch is suitable for portable electronic equipment and keyless entry systems.
This model is part of Panasonic's EVPA series and is non-illuminated.

Product Description

Panasonic EVPAAN02Q is a Grey Tactile Switch Push Plate with a compact form factor, featuring a 2.2 mm actuator length and SPST configuration suitable for low power switching applications. Designed for surface mounting, this switch offers a reliable push-on operation with a J bend terminal type, making it ideal for integration in portable electronics and automation equipment.

The switch can handle a contact current of 20 mA at 15 V dc and operates reliably in temperatures up to 85°C, ensuring stable performance in various industrial and consumer environments. Its snap action push plate style actuator offers a tactile feedback with 5N operating force, providing precise control in keyless entry systems and other control panels.

With external dimensions of approximately 3.5 mm by 2.9 mm and a height of only 1.7 mm, the switch is designed for space-constrained applications while maintaining durability and ease of mounting. Manufactured in Japan, the EVPAAN02Q switch adheres to Panasonic’s stringent quality standards ensuring long-term reliability and consistent performance.

The actuator is grey colored and styled as a push plate for clear identification and ease of use. Surface mount design facilitates assembly automation and compact PCB layouts. Supports electrical ratings from 10 µA 2 V DC to 20 mA 15 V DC for a range of resistive load applications.

Operating temperature window from -40 °C to +85 °C exceeds typical industrial requirements. Designed for both commercial electronics and industrial automation switch controls. The non-illuminated switch options reduce power consumption and complexity in circuit design.

This tactile switch is ideally suited for industrial, laboratory, and electronic manufacturing markets requiring compact, reliable user interface components. Explore more Panasonic Tactile Switches and related products on EnvMart for efficient and high-quality automation and control solutions.
