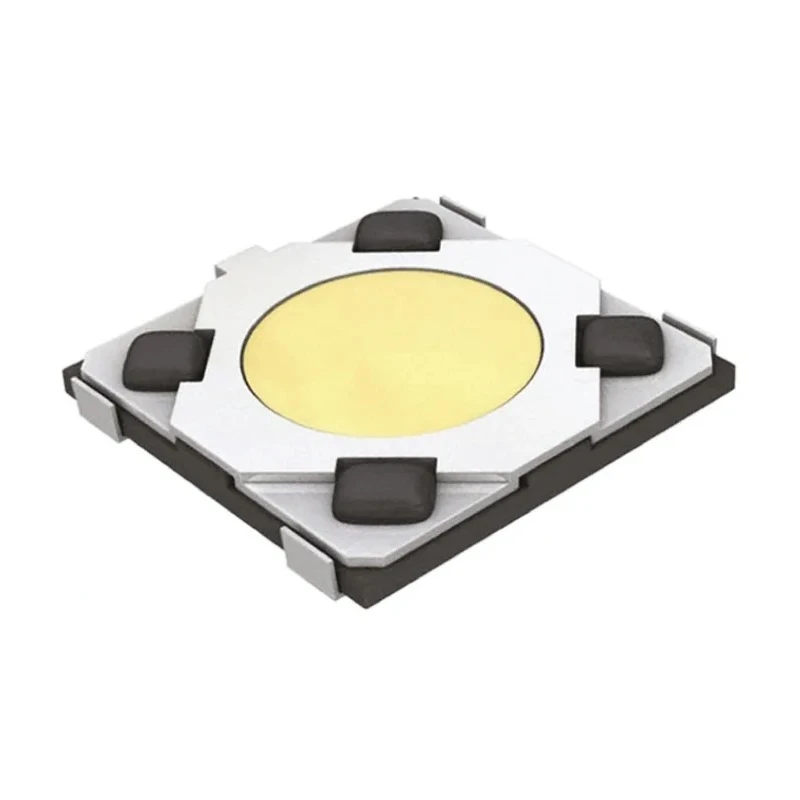

Panasonic Tactile Switch SPST 20mA 15 V dc Surface Mount EVQ6P6B40
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 430μm |
| Length | 430μm |
| Model | EVQ6P6B40 |
| Width | 4.1mm |
| Mount Type | Surface |
| Series | EVQ |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -20°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Contact DC Voltage | 15V dc |
| Switch Contact Current | 20mA |
| Operating Force | 1.6N |
| Mechanical Life | 1000000Cycles |
Key Features
- Compact tactile switch with dimensions of 430μm length and 4.1mm width.
- Single pole single throw (SPST) momentary action rated for 20mA at 15 V dc.
- Operating force of 1.6N providing a distinct and sharp tactile feedback.
- Mechanical life rated at 1,000,000 cycles for reliable long-term use.
- Surface mount terminal type for easy integration on PCBs.
- Non-illuminated design suitable for compact, space-saving applications.
- Operates reliably in temperatures ranging from -20°C to 70°C.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Panasonic EVQ6P6B40 is a surface mount tactile switch featuring a single pole single throw (SPST) momentary operation with a contact current rating of 20mA at 15 V dc. It is designed for compactness, with dimensions of 430μm length and 4.1mm width, making it ideal for applications requiring precise and reliable switch action.
This tactile switch provides a distinct clicking sensation due to a 1.6N operating force, ensuring operator feedback and enhanced user experience. The switch is designed with durability in mind, offering a mechanical life expectancy of 1,000,000 cycles.
Operating temperature range from -20°C to 70°C makes it suitable for various electrical, automation, and industrial environments. The non-illuminated design and surface mount terminal type simplify assembly and integration into printed circuit boards and compact devices.
Panasonic’s EVQ series Tactile Switches are recognized for their high contact reliability, low contact resistance, and minimal contact bounce noise, suitable for equipment in consumer electronics, industrial controls, and other precision machinery.
The switch is manufactured under RoHS compliance ensuring environmental safety. Its small size and surface mount compatibility provide excellent space-saving advantages in device design. These switches are widely used in HVAC controls, industrial automation systems, laboratory instruments, and telecommunications equipment due to their precision and reliability.
Choose the Panasonic EVQ6P6B40 tactile switch for dependable, long-lasting switch performance in electronic device applications. Explore more Panasonic switches and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating is 20mA at 15 V dc.
It has a length of 430μm and a width of 4.1mm.
The operating force is 1.6N, providing distinct tactile feedback.
It has a mechanical life rated for 1,000,000 cycles.
The operating temperature range is from -20°C to 70°C.
It features a single pole single throw (SPST) momentary operation.
Yes, it is compliant with RoHS standards, ensuring environmental safety.
It supports surface mount terminal type for easy integration on PCBs.
It is suitable for applications in consumer electronics, industrial controls, and telecommunications equipment.
The maximum operating temperature is 70°C.
The country of origin is India.
The switch operates on a momentary action basis.
