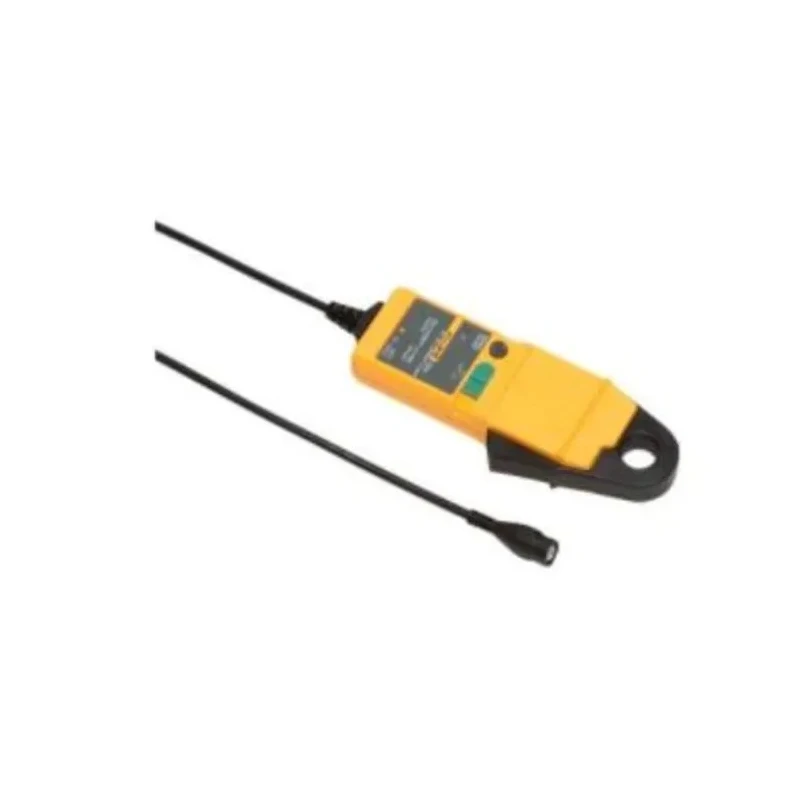

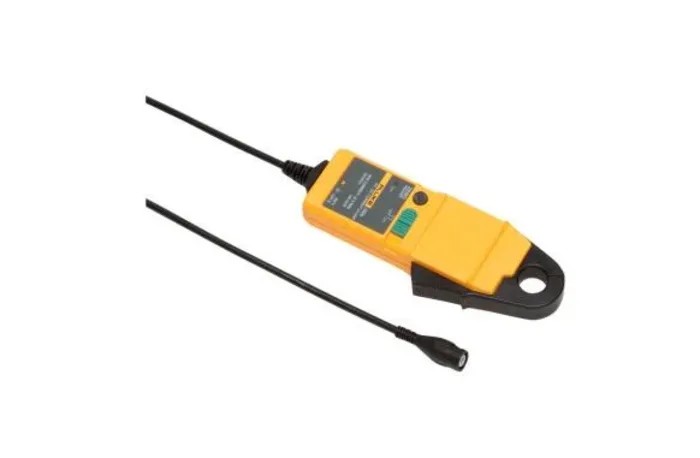

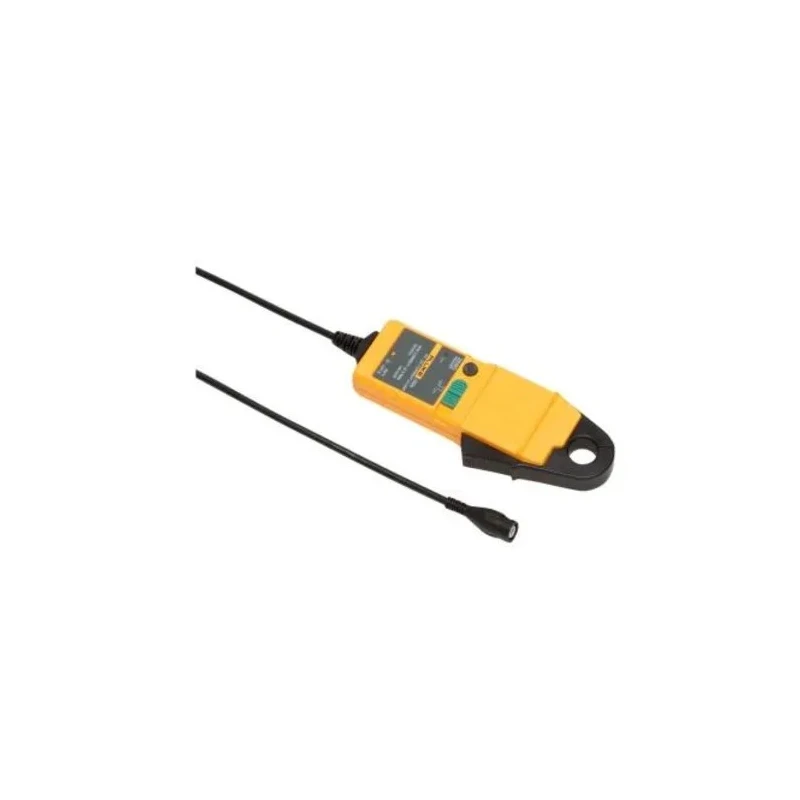

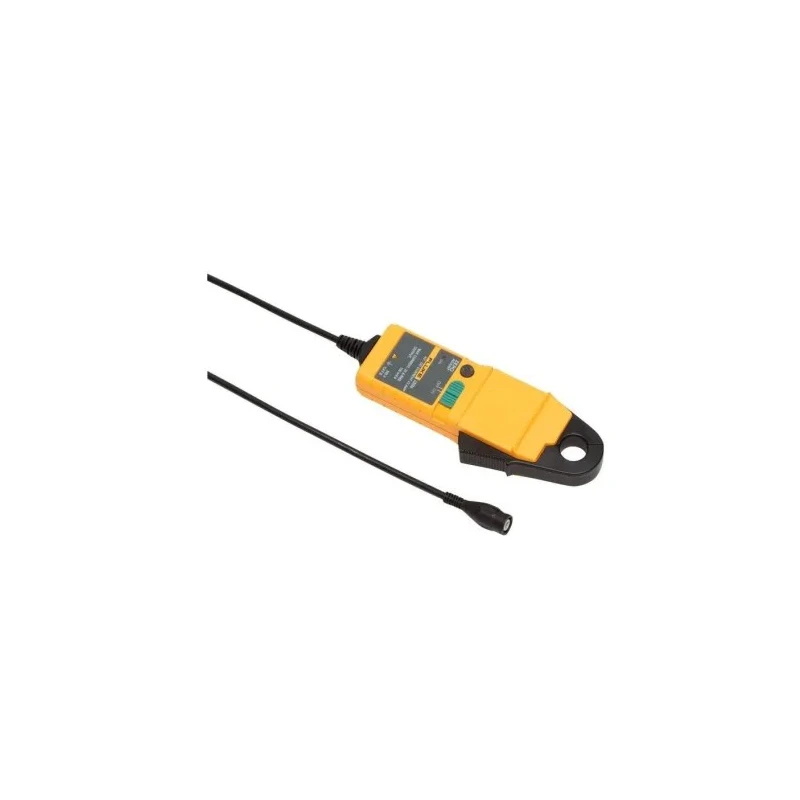

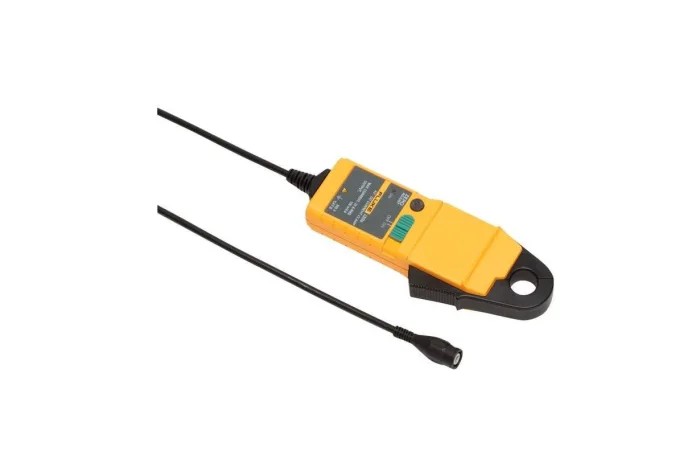

Fluke AC/DC Current Clamp with Voltage Output, 20 A DC Max, 20 A AC Max, BNC Connector, Model I30S

Free Delivery in India | Lowest Global Shipping Charges

Fluke AC/DC Current Clamp with Voltage Output, 20 A DC Max, 20 A AC Max, BNC Connector, Model I30S

Name: Fluke AC/DC Current Clamp with Voltage Output, 20 A DC Max, 20 A AC Max, BNC Connector, Model I30S
Brand: FLUKE
SKU: 416099
Price: 20.22 USD
Availability: InStock



Category Current Clamps Brand FLUKE Condition New

Specifications

Country of Origin	China
Accuracy	±1% + 2 mA
Brand	Fluke
Battery Life	30h
Battery type	Alkaline
Model	I30S
Cable Length	2m
Connector Type	BNC
Output type	Voltage
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Adapter Type	AC/DC
Standards/Approvals	IEC 61326-1
Safety Category Level	CAT III
Safety Category Voltage	300V
Maximum DC Current	20A
Maximum Conductor Size	19mm

Key Features

Measures AC and DC currents using Hall-effect sensing for safe, non-intrusive readings.
Supports conductor sizes up to 19mm diameter for versatile applications.
Offers output sensitivity of 100mV per ampere compatible with voltage input instruments.
Provides ±1% accuracy plus 2 mA at 25°C for precise measurements.
Includes a 2 meter cable with BNC connector for secure oscilloscope connections.
Operates between 0°C and 50°C with 30 hours battery life powered by a 9V alkaline battery.
Manual zero adjustment enables baseline correction prior to measurement.
Meets IEC 61326-1 EMC standards and CAT III 300V safety rating.

Product Description

Fluke I30S AC/DC Current Clamp (Model I30S) is designed for accurate measurement of AC and DC currents up to 20 A DC max and 20 A AC max. Utilizing Hall-effect sensing technology, it offers safe, non-intrusive current measurements ideal for both field and bench applications requiring electrical isolation.

The clamp accommodates conductor diameters up to 19mm, enabling versatile use in various electrical circuits and control systems. It features an output sensitivity of 100mV per ampere, producing a voltage output compatible with oscilloscopes and other voltage input test instruments. With an accuracy of ±1% plus 2 mA at 25°C and a frequency response up to 100kHz, the device ensures precise monitoring even at high-frequency waveform capture.

An included 2 meter cable with BNC connector ensures secure connections while the clamp operates safely within a temperature range of 0°C to 50°C. A manual thumbwheel allows zero calibration before measurements to eliminate baseline offsets.

The Fluke I30S current clamp meets stringent IEC 61326-1 standards for electromagnetic compatibility (EMC) and carries a CAT III 300V safety rating, suitable for many industrial, laboratory, and field applications. It is particularly useful for diagnosing DC motor drive currents, validating control circuits up to 30A, and monitoring power electronics signals.

Package includes the current clamp, alkaline PP3 battery, a 4mm shrouded plug adaptor, and an operator’s manual. Use caution with uninsulated conductors exceeding 300 V AC RMS or DC and above 1 kHz frequency.

Measures both AC and DC current utilizing Hall-effect sensing for safe, isolated measurements. High accuracy and frequency response suitable for power electronics and motor diagnostics. 2m cable and BNC connector facilitate reliable instrument interfacing.

Compact clamp fits conductors up to 19 mm diameter. Battery powered with long operation time and low-battery indication. Complies with IEC 61326-1 and rated CAT III 300V for safety.

This current clamp serves industrial maintenance, electronic testing, HVAC systems diagnostics, laboratory use, and electrical manufacturing quality control. Explore more Fluke electrical test instruments on EnvMart for comprehensive measurement solutions.
