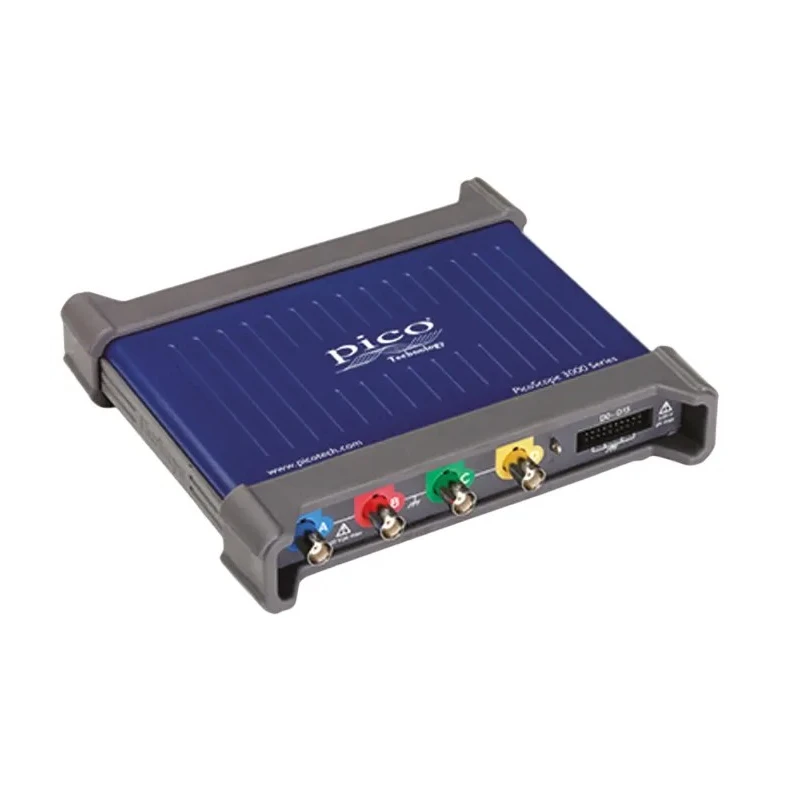

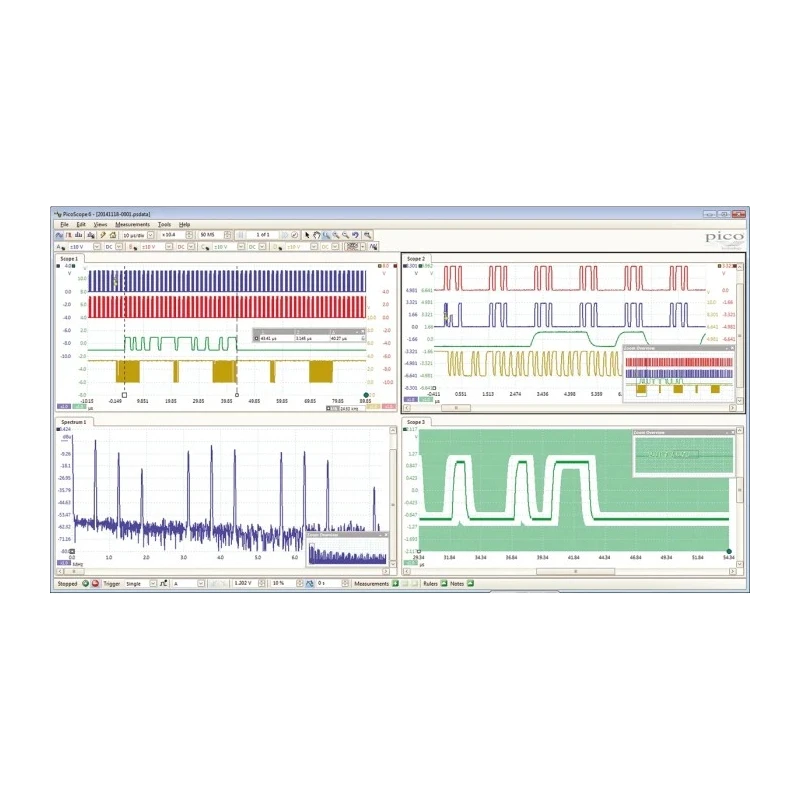

Pico Technology PC Based Oscilloscope 200 MHz Bandwidth 16-Channel USB Interface PicoScope 3206D MSO
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Pico Technology |
| Height | 40mm |
| Length | 210mm |
| Model | PicoScope 3206D MSO |
| Width | 140mm |
| Bandwidth | 200MHz |
| Series | PicoScope 3000 |
| Interfaces | USB 3 |
| Number Of Channels | 16 |
| Vertical Resolution | 8 bit |
| Rise Time | 1.75ns |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 10mV/div |
| Minimum Time Base | 500ps/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
| EN 61010-1 | 2010 |
| EN61326-1 | 2006 |
Key Features
- Offers 1 GS/s real-time sampling rate for accurate signal capture.
- Includes a 512 MS buffer memory to store extensive waveform data.
- Supports USB 3.0 connectivity for high-speed data transfer and powered operation.

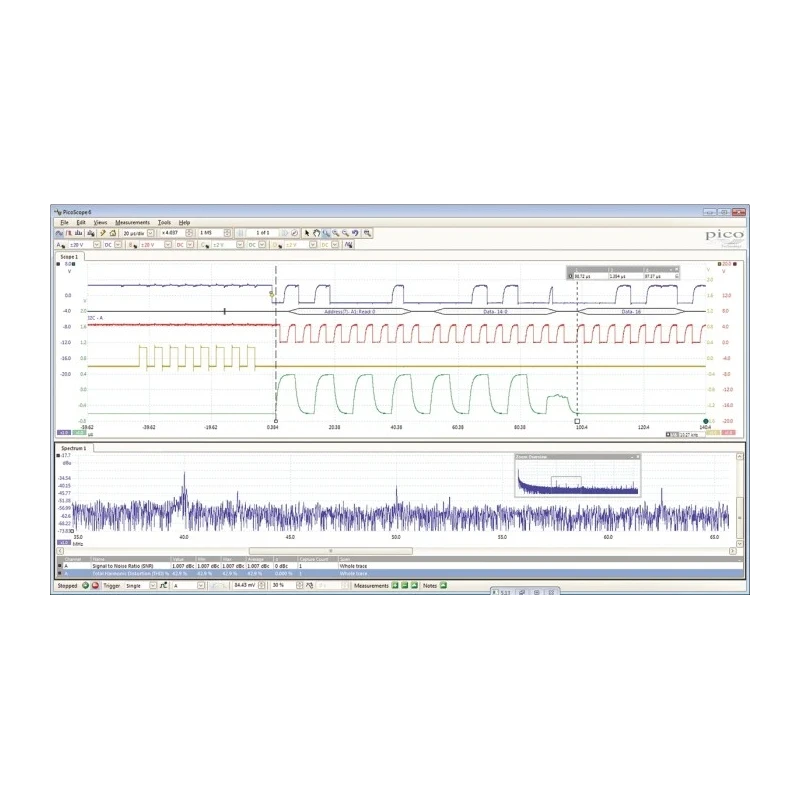

- Features serial decoding for protocols such as SPI, I2C, UART, CAN, and LIN.

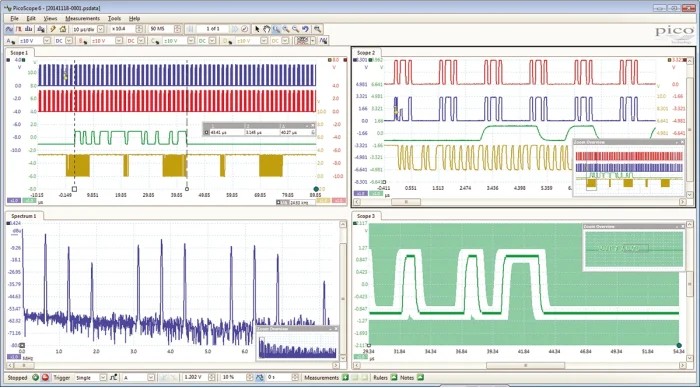

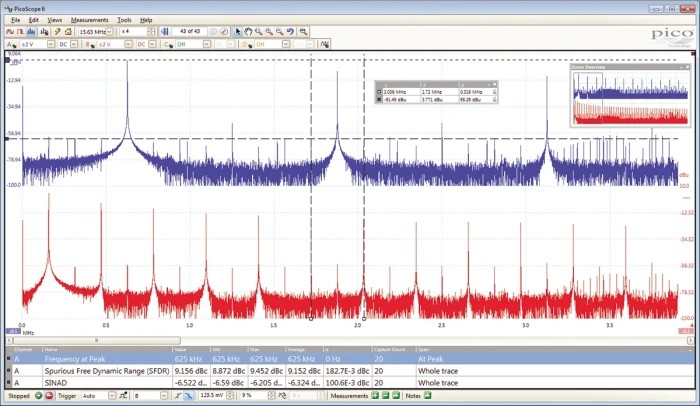

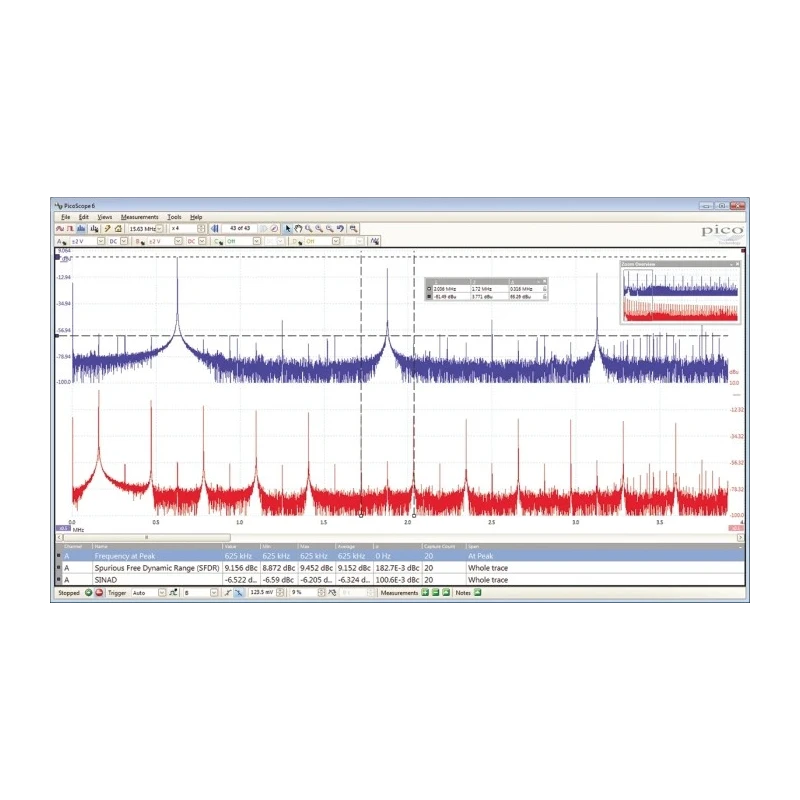

- Equipped with automatic measurements, spectrum analysis, and advanced digital triggering.

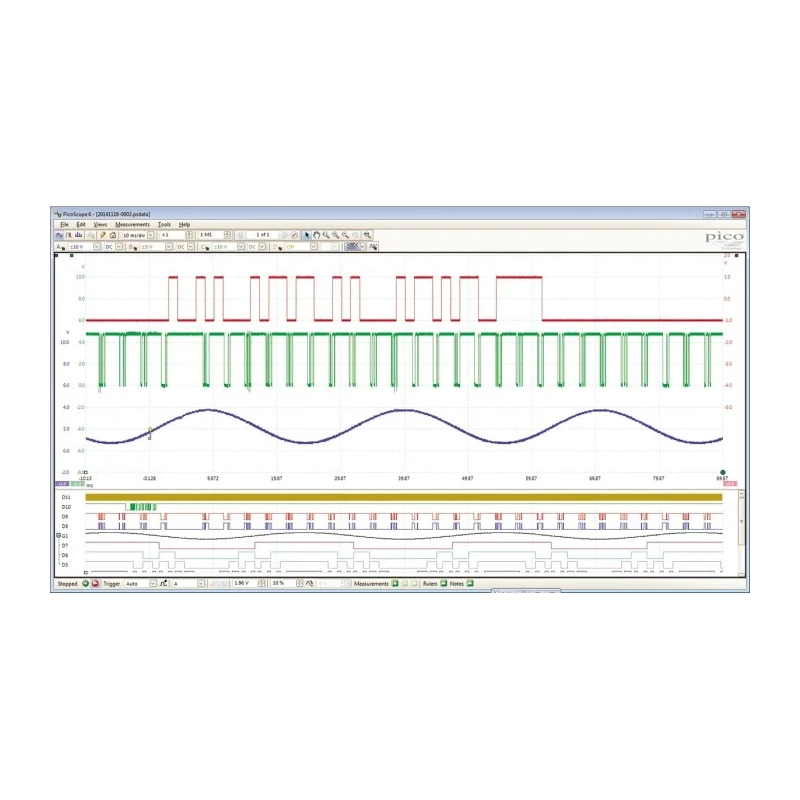

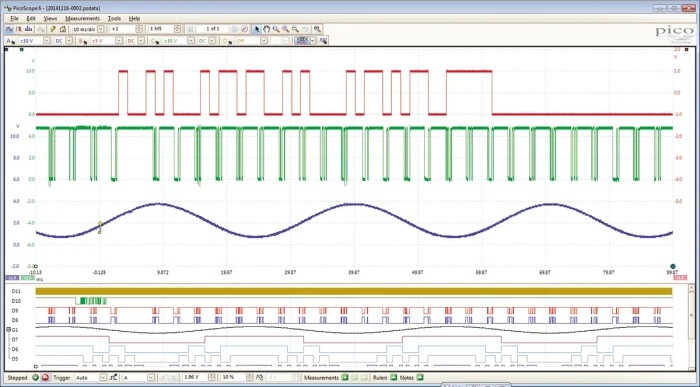

- Provides a 16-channel logic analyser for detailed digital signal inspection.
- Compact and portable design suitable for use with laptops.
- Compatible with PicoScope6 software for enhanced analysis and usability.
Product Description
Pico Technology PicoScope 3206D MSO is a PC based mixed signal oscilloscope with a bandwidth of 200 MHz and 16 input channels. It offers advanced features for detailed waveform analysis and signal debugging, making it ideal for electronic design, test, education, and repair applications.
This compact and USB-powered oscilloscope connects directly to a laptop, displaying waveforms on the PC screen with high resolution and clarity. Its 1 GS/s real-time sampling rate and 512 MS buffer memory enable capture of complex and rapid signals with precision.
The device features a 16-channel logic analyser and supports serial decoding for SPI, I2C, UART, CAN, LIN, and FlexRay protocols simultaneously across mixed analogue and digital inputs. Automatic measurements with statistics, spectrum analysis, and multiple triggering options including pulse width and digital pattern triggers enhance its diagnostic capabilities.
Included in the package are switchable x1/x10 probes for each analogue channel, a carrying case, a Quick Start guide, software and reference CD, USB cables, and a power adaptor for models with 4 analogue channels. The PicoScope 3206D MSO is an advanced test instrument certified to EN 61010-1:2010 and EN61326-1:2006 standards.
Its industrial applicability ranges across design, servicing, fault finding, monitoring, and repair in laboratory, manufacturing, construction and educational environments. Offers 1 GS/s real-time sampling rate for accurate signal capture.
Includes a 512 MS buffer memory to store extensive waveform data. Supports USB 3.0 connectivity for high-speed data transfer and powered operation. Features serial decoding for protocols such as SPI, I2C, UART, CAN, and LIN.
Equipped with automatic measurements, spectrum analysis, and advanced digital triggering. Provides a 16-channel logic analyser for detailed digital signal inspection. Compact and portable design suitable for use with laptops.
Compatible with PicoScope6 software for enhanced analysis and usability. Explore a wide range of Oscilloscopes and test equipment from Pico Technology on EnvMart to find instruments tailored to your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 3206D MSO has a bandwidth of 200 MHz.
This model supports 16 input channels for comprehensive signal analysis.
It offers a maximum real-time sampling rate of 1 GS/s for accurate signal capture.
The oscilloscope utilizes a USB 3.0 interface for high-speed data transfer and powered operation.
The vertical resolution of the PicoScope 3206D MSO is 8 bits.
The dimensions are 210 mm in length, 140 mm in width, and 40 mm in height.
It supports serial decoding for protocols including SPI, I2C, UART, CAN, and LIN.
The minimum vertical sensitivity is 10 mV/div.
The rise time of the PicoScope 3206D MSO is 1.75 ns.
It is compatible with PicoScope6 software for enhanced analysis and usability.
This model is certified to EN 61010-1:2010 and EN 61326-1:2006 standards.
Included accessories are switchable x1/x10 probes for each analogue channel, a carrying case, a Quick Start guide, software and reference CD, USB cables, and a power adaptor for models with 4 analogue channels.
