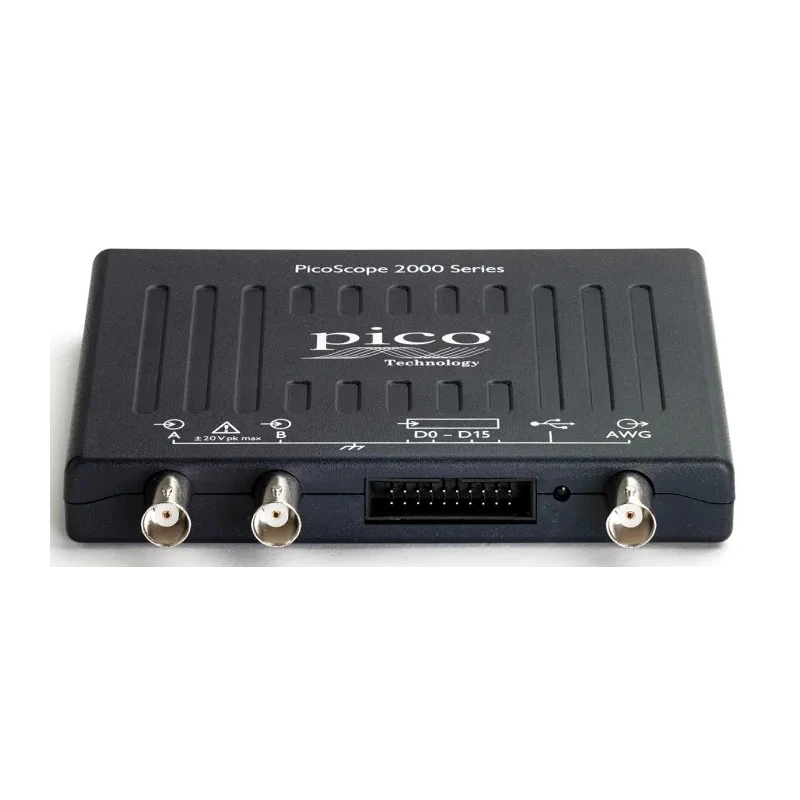

Pico Technology 50 MHz PC Based Mixed Signal Oscilloscope 16-Channel USB Powered PicoScope 2206B MSO
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Pico Technology |
| Height | 18.8mm |
| Length | 130mm |
| Model | PicoScope 2206B MSO |
| Width | 104mm |
| Bandwidth | 50MHz |
| Sampling rate | is 1GSa/s with 32MS buffer |
| Series | PicoScope 2000 |
| Interfaces | USB connected and powered |
| Number Of Channels | 16 |
| Vertical Resolution | 8 bit |
| Rise Time | 7ns |
| Interface Type | CAN, IIC, LIN, RS232, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 4mV/div |
| Minimum Time Base | 2ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
| EN 61010-1 | 2010 |
| pico Technology 2206A PicoScope 2000 Series USB Digital Oscilloscope, 50MHzBrand | Pico Technology |
Key Features
- Features 2 analogue and 16 digital channels for comprehensive signal capturing.
- Includes built-in spectrum analysis, arbitrary waveform generation, and serial bus analysis features.
- Supports serial decoding and frequency plots for in-depth waveform examination.
- USB connected and powered for convenient PC interfacing and portability.
- Sampling rate of 1 GSa/s with a 32 MS buffer for high-resolution data capture.
- Portable design with dimensions 130 mm length, 104 mm width, and 18.8 mm height.
- Maximum vertical sensitivity of 4 V/div and minimum vertical sensitivity of 4 mV/div with 8-bit vertical resolution.
- Compatible with PicoScope 6 software for Windows with SDK and example programs included.
Product Description
Pico Technology PicoScope 2206B MSO is a 50 MHz PC Based Mixed Signal Oscilloscope featuring 16 digital channels, designed for precise waveform visualization and measurement in industrial, educational, laboratory, and service environments.

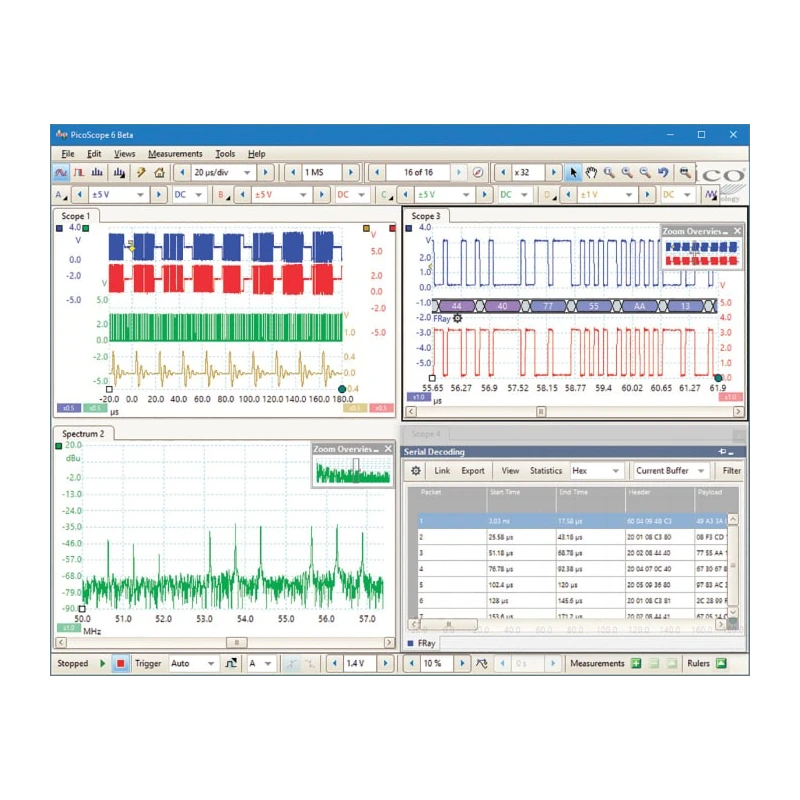

This device combines 2 analogue channels and 16 digital channels, enabling thorough mixed signal analysis with integrated spectrum analysis and arbitrary waveform generation utilities. It supports advanced waveform update rates and serial decoding, ideal for engineering, fault finding, and monitoring tasks.

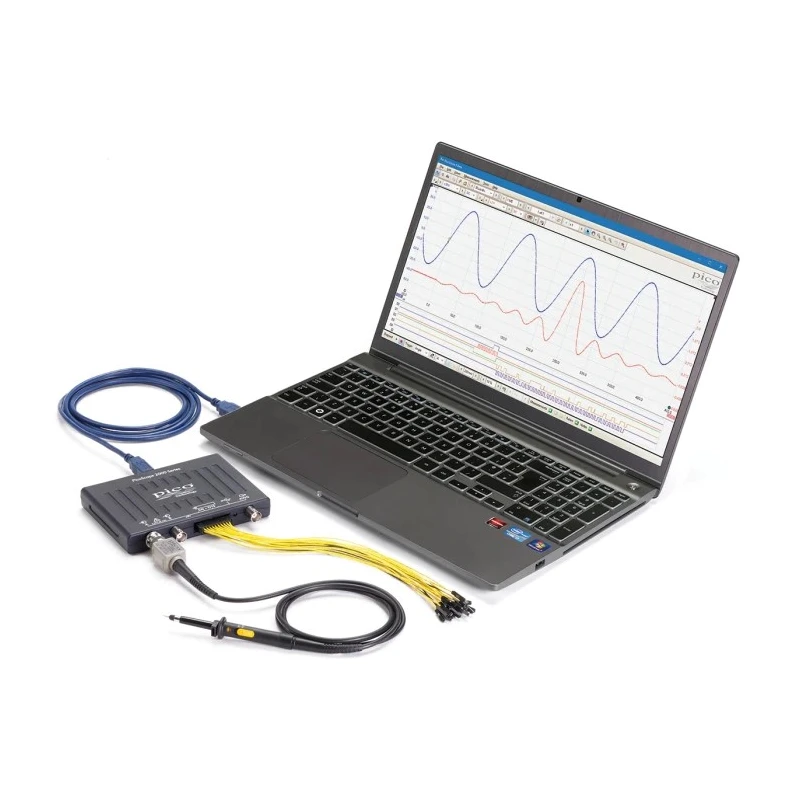

The oscilloscope connects and powers via USB, facilitating easy data transfer and operation with PC software PicoScope 6 for Windows platforms. The included SDK and example programs support integration and automation in diverse test setups.
Compact and lightweight, with physical dimensions of 130 mm (length), 104 mm (width), and 18.8 mm (height), the instrument suits bench or field use. Technical details include a 1 GSa/s sampling rate with a 32 MS buffer, vertical resolution of 8 bits, rise time of 7 ns, and vertical sensitivities ranging from 4 mV/div to 4 V/div.
Suitable applications include product design, educational training, servicing, fault detection, and real-time monitoring across electronics development and quality testing scenarios.

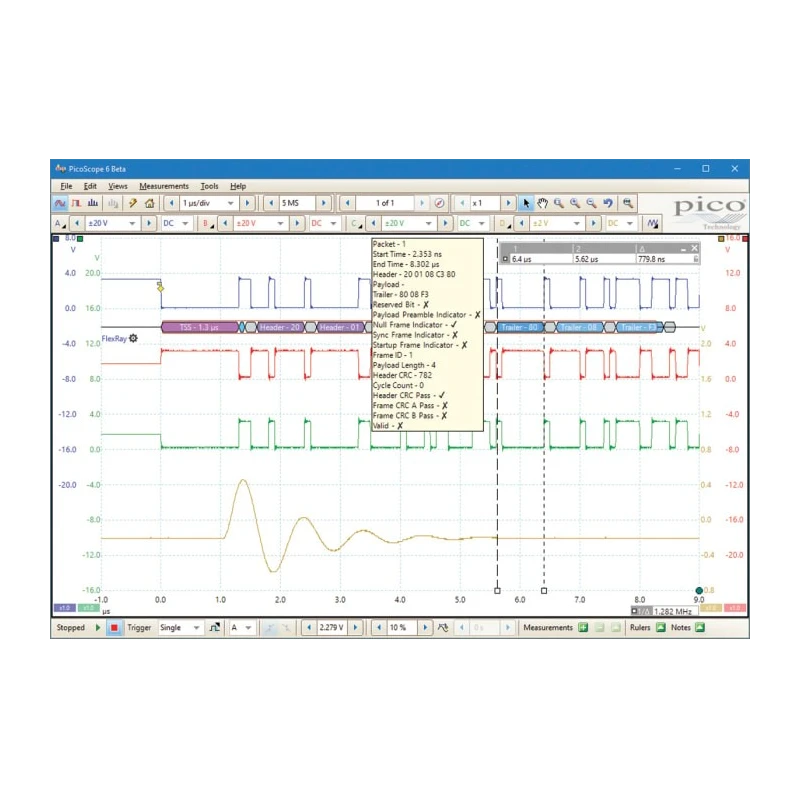

Two analogue and sixteen digital input channels for mixed signal analysis. Integrated spectrum analyser and waveform generator functionalities. Robust serial bus analysis including CAN, IIC, LIN, RS232, SPI, UART protocols.
USB connectivity for powering and data transfer with compatible software. High sampling rate with large buffer for detailed waveform capture. Comprehensive software suite included for Windows with SDK and multi-language support.
Compact size and lightweight for easy transport and bench use. Operating temperature suitable for industrial and educational environments. Certification compliant with EN 61010-1:2010 standards ensuring safety. Supplied with probes, cables, test clips, and documentation to facilitate immediate deployment.
Explore the range of Pico Technology Oscilloscopes and accessories on EnvMart for reliable, precision measurement solutions tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 2206B MSO has a bandwidth of 50 MHz, suitable for a range of mixed signal applications.
This model features 2 analogue channels and 16 digital channels, allowing for comprehensive mixed signal analysis.
The maximum sampling rate is 1 GSa/s, which supports high-resolution data capture.
The dimensions of the PicoScope 2206B MSO are 130 mm in length, 104 mm in width, and 18.8 mm in height.
The vertical sensitivity ranges from a minimum of 4 mV/div to a maximum of 4 V/div.
This model supports interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB.
The rise time of this oscilloscope is 7 ns, enabling accurate signal capture.

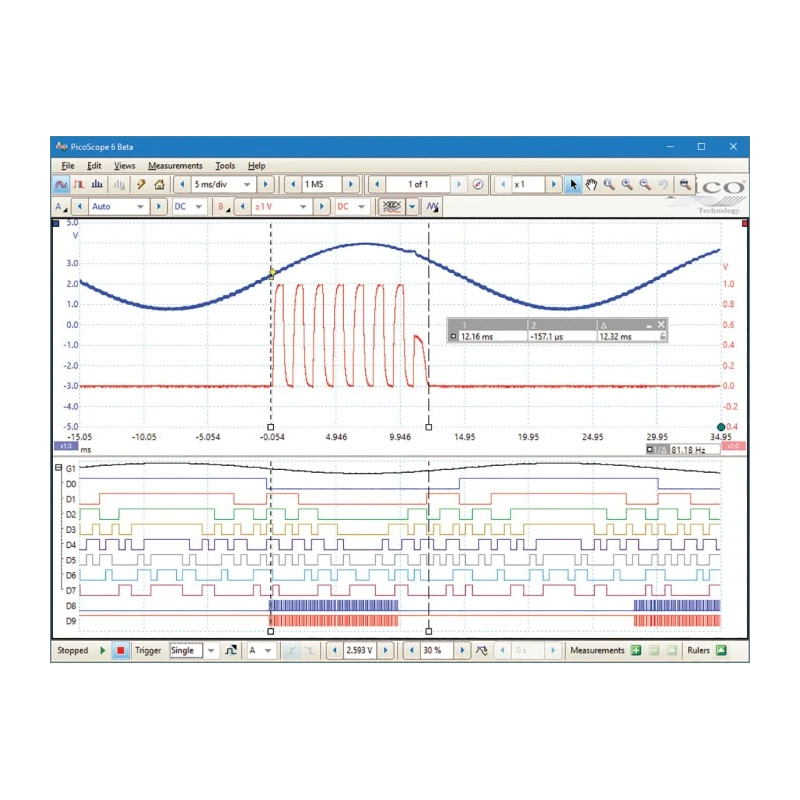

It is compatible with PicoScope 6 software for Windows, which includes an SDK and example programs for integration.
The minimum time base for the PicoScope 2206B MSO is 2 ns/div, allowing for detailed time resolution in waveform analysis.
It complies with the EN 61010-1:2010 safety standards, ensuring safe operation in various environments.
This oscilloscope is suitable for applications including product design, educational training, servicing, fault detection, and real-time monitoring.

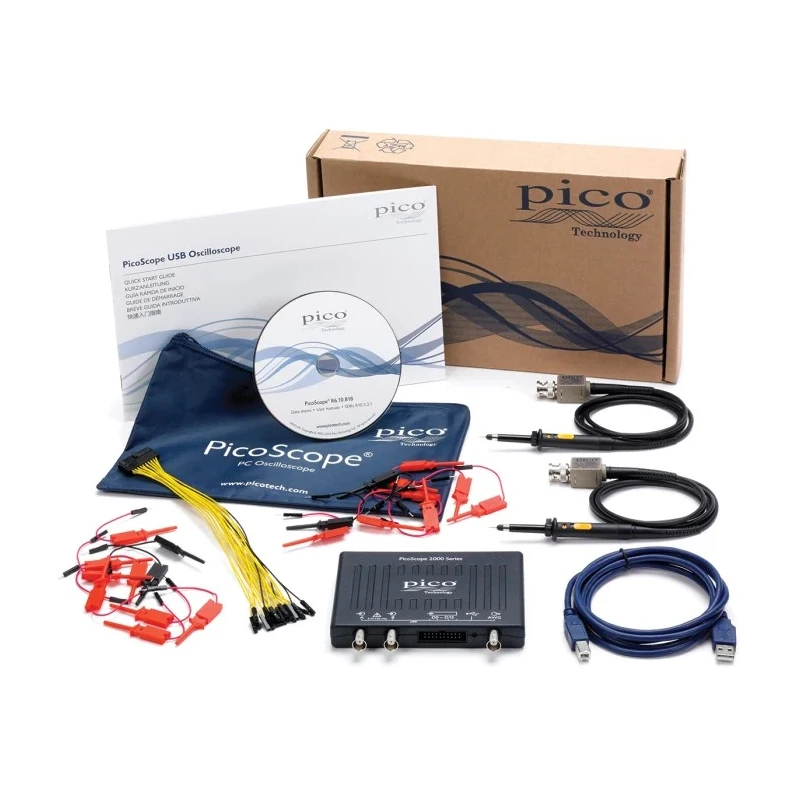

The oscilloscope is supplied with probes, cables, test clips, and documentation to facilitate immediate deployment.
