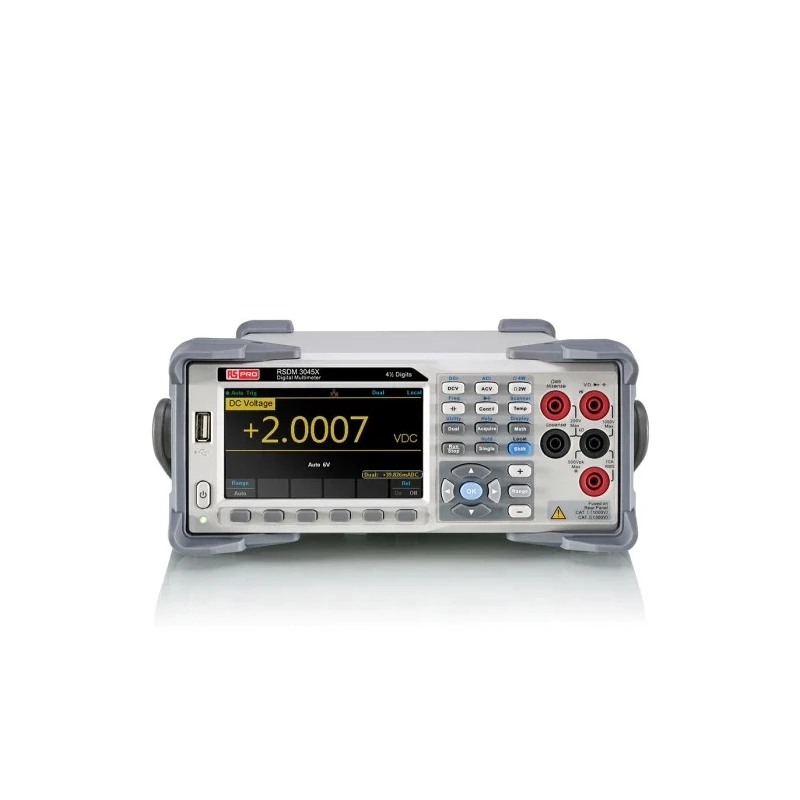

RS PRO Bench Digital Multimeter True RMS 10 A AC/DC 750 V AC RSDM3045X

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Bench Digital Multimeter True RMS 10 A AC/DC 750 V AC RSDM3045X

Name: RS PRO Bench Digital Multimeter True RMS 10 A AC/DC 750 V AC RSDM3045X
Brand: RS PRO
SKU: 304480
Price: 975.74 USD
Availability: InStock



Category Digital Multimeter Brand RS PRO Condition New

Specifications

Country of Origin	China
Frequency Measurement	20 Hz - 500 KHz
Display Type	Digital
Diode Test	Adjustable range is 0-4 V
Brand	RS PRO
Height	107.21mm
Length	293.75mm
Model	RSDM3045X
Gross Weight	3.8kg
Temperature	Support for TC and RTD sensor
Width	260mm
AC Current	True-RMS,60 mA - 10 A
Maximum Operating Temperature	50°C
Capacitance	2 nF - 10000 μF
DC Current	600 μA - 10 A
AC Voltage Resolution	0.01mV ac
Minimum Operating Temperature	0°C
DC Current Accuracy	±0.25 % rdg + 4 Digits
Standard Interface	USB Device, USB Host, LAN
Continuity Test	Rang e is fixed at 2 kΩ
DC Voltage Resolution	0.01 mV dc
Resistance Measurement Accuracy	±1.75 % rdg + 3 Digits
AC Current Accuracy	±2.5 % rdg + 25 Digits
AC Voltage	True-RMS, 600 mV - 750 V
Resistance Resolution	10mΩ
AC Current Resolution	1μA ac
DC Voltage	600 mV - 1000 V
DC Current Resolution	0.01μA dc
Multimeter Type	Bench
Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature
Maximum Resistance Measurement	100mΩ
Maximum AC Current Measurement	10A ac
Maximum DC Voltage Measurement	1kV dc
Maximum DC Current Measurement	10A dc
Maximum AC Voltage Measurement	750V ac
Maximum Frequency	500kHz
Safety Category Level	CAT I, CAT II
Safety Category Voltage	1kV
Easy, convenient and flexible any sensor measurement control software	Ultra Sensor
2/4-Wire Resistance	600 Ω - 100 MΩ
Period Measurement	2 μs - 0.05 s
Teledyne LeCroy T3DMM Bench Multimeter True RMS, 10 A ac, 10 A dc, 750 V acBrand	Teledyne LeCroy

Key Features

Features 4 ½ digit resolution with 66000 counts for high precision.
Supports measurements of AC/DC current, voltage, resistance, capacitance, frequency, temperature, and more.
Includes true RMS measurement capability for AC voltage and current.
Equipped with a 4.3 inch TFT-LCD dual display with USB Device, USB Host, and LAN interfaces.
Enables remote control and mass storage via a 1GB NAND flash memory.
Offers a built-in cold terminal compensation for thermocouple measurements.
Accurate measurement with DC current accuracy of ±0.25% reading plus 4 digits.
Designed for robust operation in temperatures from 0°C to 50°C.

Product Description

RS PRO RSDM3045X is a bench digital multimeter designed for precise electrical measurements in industrial, laboratory, and manufacturing environments. It provides accurate readings with 4 ½ digit resolution and true RMS capability, supporting a wide range of electrical parameters including AC and DC currents up to 10 A, AC voltage up to 750 V, DC voltage up to 1 kV, resistance, capacitance, frequency, temperature, and diode testing.

The device features a large 4.3 inch TFT-LCD dual display that displays measurements clearly and supports a user-friendly interface with USB Device, USB Host, and LAN connectivity for efficient data management and remote monitoring. A 1GB NAND flash memory enables mass storage of configuration and data files.

This multimeter includes built-in cold terminal compensation facilitating accurate thermocouple temperature measurements, making it versatile for numerous applications ranging from electrical testing to temperature monitoring in electronic and HVAC systems.

Designed to operate reliably in industrial settings, it supports operating temperatures between 0°C and 50°C, and carries CAT I and CAT II safety ratings with up to 1 kV safety category voltage, ensuring safe operation in various electrical environments.

The RSDM3045X's compact size and moderate weight of 3.8 kg make it suitable for benchtop use in industrial test labs, electrical maintenance, and quality control. It is ideal for manufacturing, industrial measurement, repair workshops, and educational labs requiring high precision and multifunctional digital measurement.

Features 4 ½ digits readings resolution with 66000 counts. True RMS AC Voltage and Current measurements for accurate AC readings. Supports extensive measurement functions including voltage, current, resistance, capacitance, frequency, and temperature.

Multiple interfaces USB Device, USB Host, and LAN for connectivity and remote control. 1GB NAND flash memory for file management and storage. Built-in cold terminal compensation enhances temperature measurement accuracy.

Robust safety ratings CAT I and CAT II with maximum 1 kV safety voltage. Compact and portable design for convenient benchtop use. Explore our range of Digital Multimeters for precise electrical measurements suited to your industrial and laboratory needs at EnvMart.
