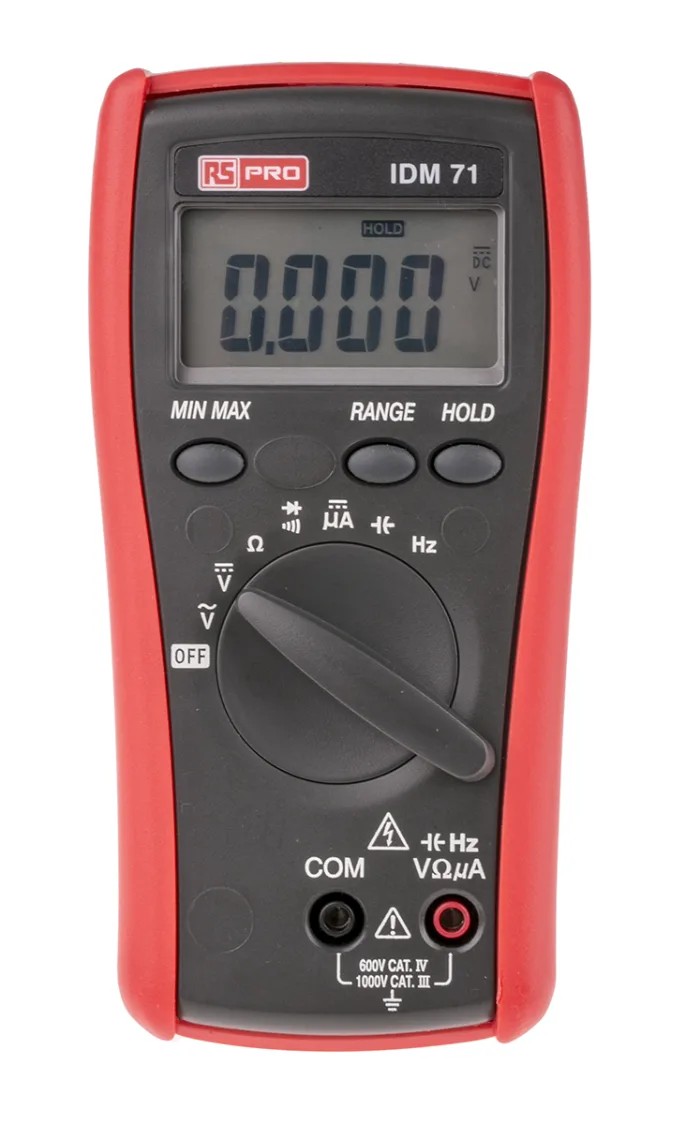

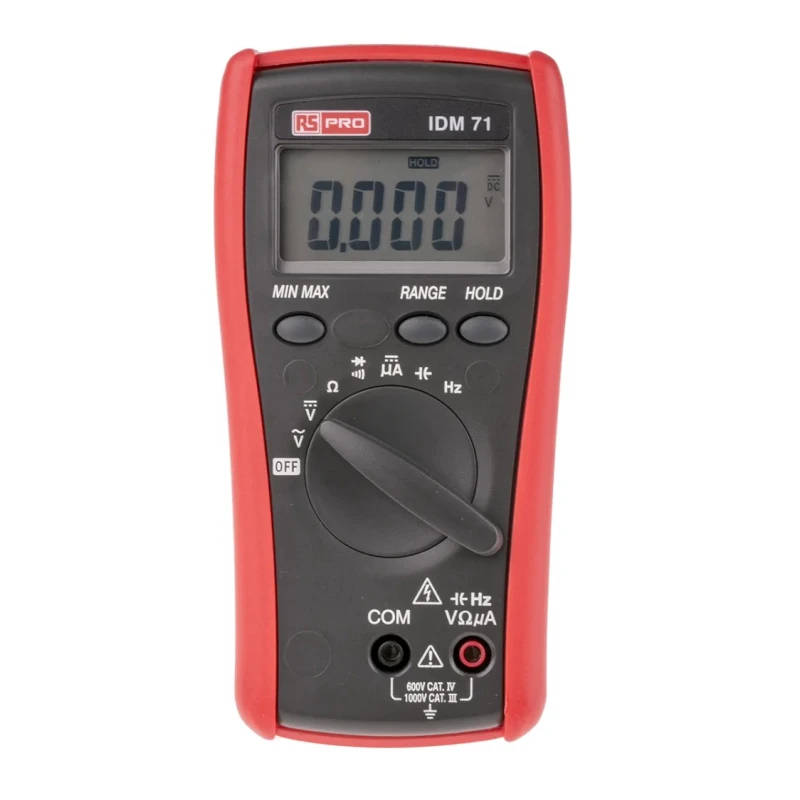

RS PRO Handheld Digital Multimeter 1000 V, True RMS, LCD Display IDM71
Specifications
| Country of Origin | Spain |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 300h |
| Battery type | AAA 1.5 V, IEC LR03, AM4 |
| Height | 164mm |
| Length | 82mm |
| Model | IDM71 |
| Gross Weight | 400g |
| Width | 44mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±1% + 2 Digits |
| DC Voltage Resolution | 0.1 mV dc |
| Resistance Resolution | 100mΩ |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Resistance |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum Frequency | 60MHz |
| Safety Category Level | CAT III, CAT IV |
| Safety Category Voltage | 1kV |
Key Features
- Measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and diode function.
- True RMS functionality ensures accurate AC measurements.

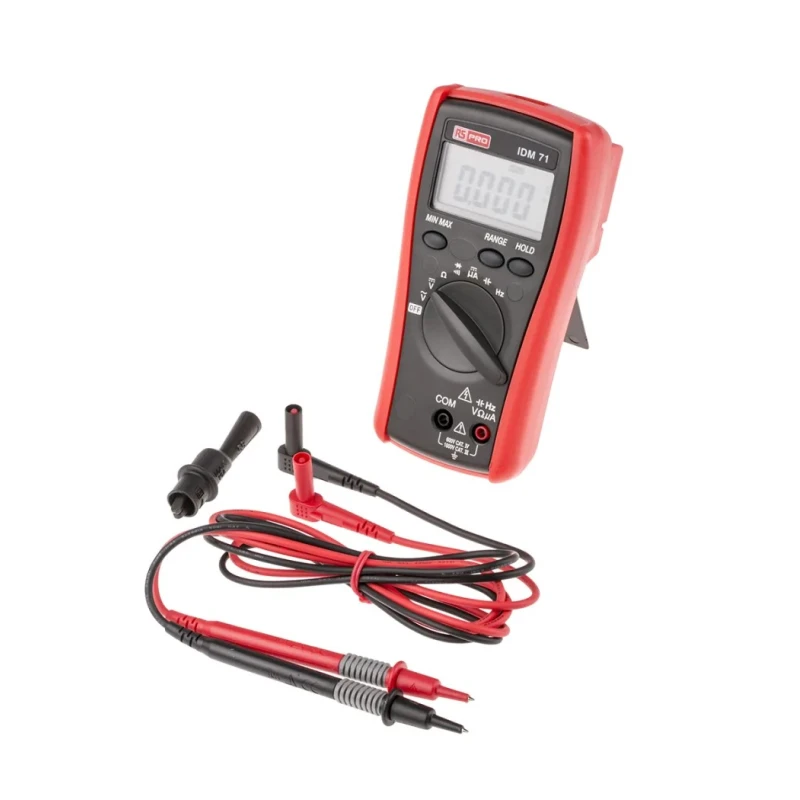

- Compact and ergonomic with protective holster and tilt stand included.
- High resolution with 100mΩ resistance and 0.1mV voltage resolution.
- Supports frequency measurement up to 60MHz and features data hold and min/max functions.
- Shock resistant to 1 m drop and auto power-off to save battery life.
- Battery operated using two AAA 1.5 V cells with 300 hours battery life.
- Safety rated CAT III and CAT IV to 1000 V for versatile field and electrical testing.
Product Description
The RS PRO IDM71 is a handheld Digital Multimeter designed for precise AC/DC electrical measurements with a true RMS function, ideal for industrial, laboratory, construction, and electrical maintenance applications.
This robust device features an LCD display with backlight, large digit count of 6000, and can measure voltage up to 1000 V DC and current curves down to microamperes. It includes capacitance, diode test, resistance, continuity, and frequency counting capabilities making it an all-in-one tool for electrical diagnostics and troubleshooting.

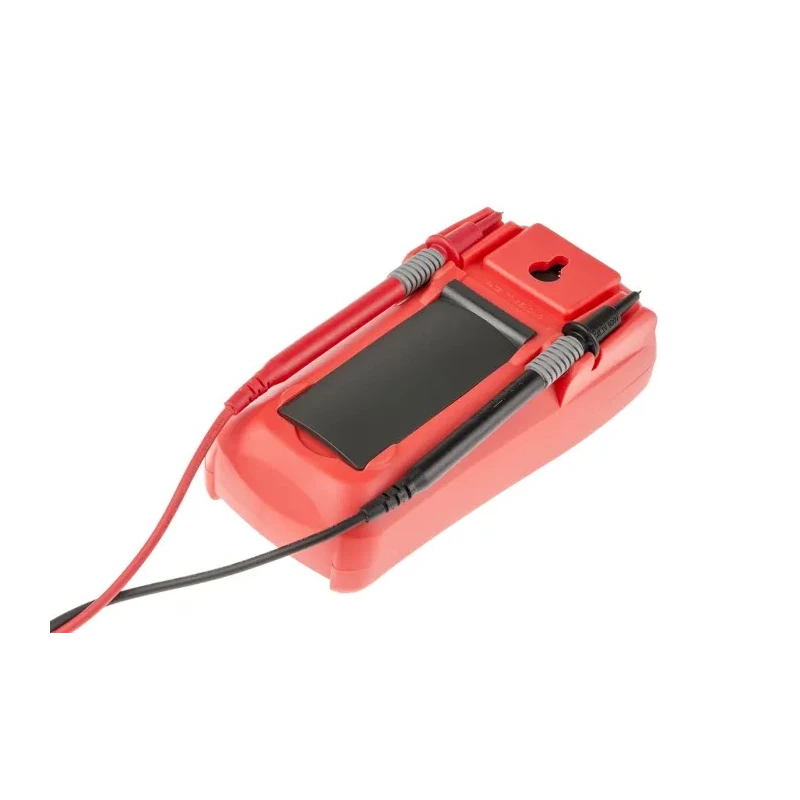

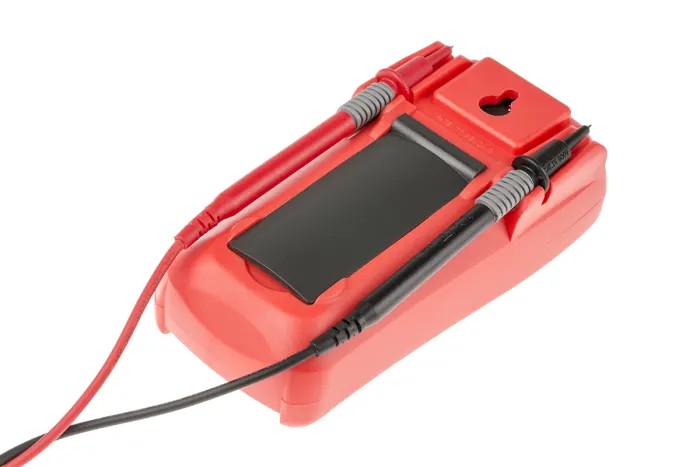

Designed ergonomically, it offers compact housing with protective holster featuring a built-in stand and lead storage for convenience and durability. The multimeter is shock resistant against drops from 1 meter height and includes auto power-off to extend battery life. Battery replacement is straightforward via two screws opening the battery compartment.
Its true RMS measurement accuracy with ±0.5% DC voltage and ±1% DC current accuracy plus 0.1mV resolution across AC/DC ranges ensures reliable readings compliant with safety levels CAT III/IV for up to 1000 volts. The device also supports an RS-232 optical interface for data acquisition and analysis on a PC, enhancing data management capabilities.
This multimeter is suited for electricians, maintenance engineers, HVAC technicians, and laboratory professionals. It supports a wide environmental range from 0°C to 50°C operation and has been manufactured in Spain.
Measures AC/DC voltage, current, resistance, capacitance, continuity and diodes. True RMS for precise AC measurement and frequency counter up to 60MHz. Protective holster with tilt stand and lead storage for rugged use. Data hold, min/max functions, and auto power off.
Shock resistant from 1 meter drop for durability in the field. Ergonomic slim design fits comfortably in the hand. Battery type: AAA 1.5 V with 300-hour life. RS-232 optical interface for data transmission to PC. Safety category: CAT III and CAT IV rated to 1000 V.
Compact size: 164mm by 82mm by 44mm; Weight 400g. Choose RS PRO IDM71 multimeter from EnvMart for reliable, accurate electronic testing that meets industrial and professional demands efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure up to 1000 V DC.
It measures AC/DC voltage, AC/DC current, resistance, capacitance, continuity, and diode function.
The DC voltage resolution is 0.1 mV.
The DC current accuracy is ±1% + 2 digits.
It supports frequency measurement up to 60 MHz.
The operating temperature range is from 0°C to 50°C.
It features an LCD display with a backlight.
The battery life is approximately 300 hours using two AAA 1.5 V cells.
It is safety rated CAT III and CAT IV to 1000 V.
It weighs 400 g and has dimensions of 164 mm x 82 mm x 44 mm.
Yes, it is shock resistant to drops from 1 meter and includes a protective holster with a tilt stand.
It includes data hold, min/max functions, and an RS-232 optical interface for data transmission to a PC.
