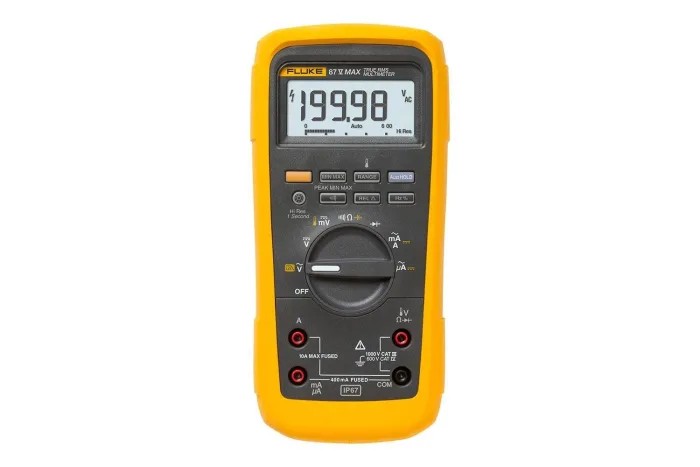

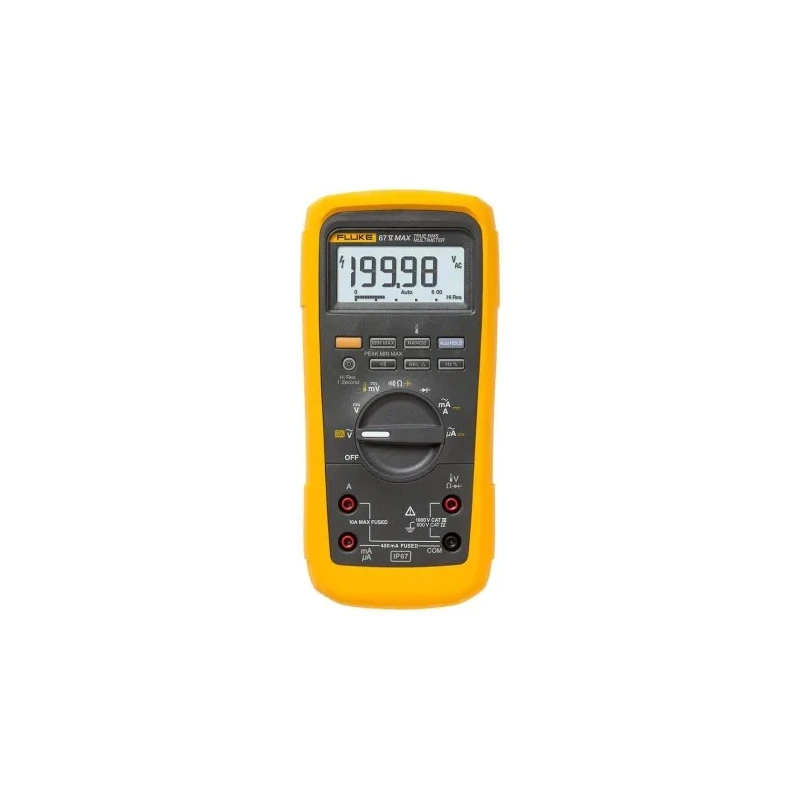

Fluke Handheld Digital Multimeter True RMS 10 A 1 kV FLUKE-87V-MAX

Free Delivery in India | Lowest Global Shipping Charges

Fluke Handheld Digital Multimeter True RMS 10 A 1 kV FLUKE-87V-MAX

Name: Fluke Handheld Digital Multimeter True RMS 10 A 1 kV FLUKE-87V-MAX
Brand: FLUKE
SKU: 320464
Price: 20.22 USD
Availability: InStock



Category Digital Multimeter Brand FLUKE Condition New

Specifications

Country of Origin	United States
Display Type	Digital
Brand	Fluke
Battery Life	800h
Battery type	AA
Height	63.5mm
Length	198mm
Model	FLUKE-87V-MAX
Gross Weight	698.5g
Width	101mm
Maximum Operating Temperature	+1090°C
AC Voltage Resolution	0.1mV ac
Minimum Operating Temperature	-15°C
DC Current Accuracy	±0.2 % rdg + 2 Digits
DC Voltage Resolution	0.1 mV dc
Resistance Measurement Accuracy	0.2% + 1
AC Current Accuracy	± 1 % rdg + 2 Digits
Resistance Resolution	100mΩ
AC Current Resolution	0.1μA ac
DC Current Resolution	0.1μA dc
Multimeter Type	Handheld
Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature
Maximum Resistance Measurement	0.05GΩ
Maximum DC Voltage Measurement	1kV
Maximum DC Current Measurement	10A
Maximum Frequency	199.99kHz
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	1kV

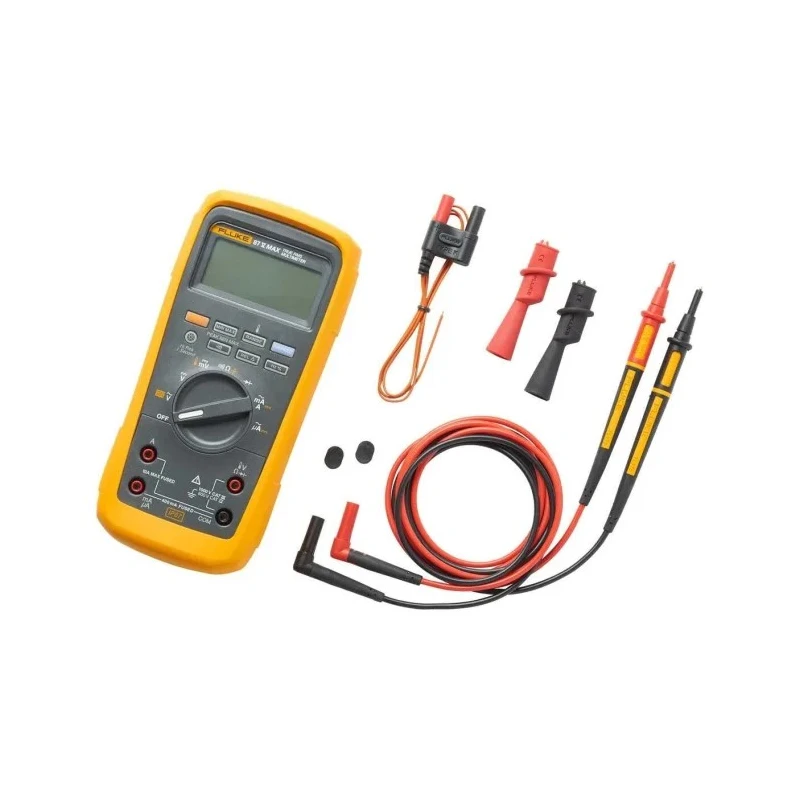

Fluke 87V Multimeter Kit Multimeter KitBrand	Fluke

Key Features

Provides True RMS measurement for accurate AC readings under non-sinusoidal loads.
Battery-powered with long 800-hour battery life for extended field use.
Measures AC/DC current up to 10 A with fine 0.1μA resolution.
Offers resistance measurement up to 0.05 GΩ with 100mΩ resolution.
Supports frequency measurement to 199.99 kHz for detailed analysis.
Features high safety categories CAT III and CAT IV rated for up to 1 kV.
Compact size with dimensions 198 mm length, 101 mm width, and 63.5 mm height.
Suitable for industrial, field service, HVAC, and electrical maintenance applications.

Product Description

Fluke FLUKE-87V-MAX is a battery-powered handheld digital multimeter offering True RMS measurements with a maximum DC voltage measurement capability of 1 kV and DC/AC current measurement up to 10 A. It is designed for precise diagnostics in industrial and field environments.

This device delivers high-accuracy measurements with DC voltage accuracy of ±0.05% reading plus 1 digit and AC current accuracy of ±1% reading plus 2 digits. The multimeter supports frequency measurements up to 199.99 kHz and resistance checks up to 0.05 GΩ, making it versatile for electrical testing needs.

Powered by AA batteries, it provides approximately 800 hours of battery life, allowing extended operation without frequent replacements. The FLUKE-87V-MAX complies with strict safety standards, featuring CAT III and CAT IV safety ratings to ensure operator protection in high voltage environments.

Its compact form factor (198 mm length, 101 mm width, 63.5 mm height) and light weight (~698.5 g) make it ideal for onsite industrial test and measurement applications including commissioning of power distribution up to 1000 V, control circuit testing, motor and inverter maintenance, HVAC, refrigeration tasks, and component verification.

True RMS measurement ensures accurate AC voltage and current readings under non-linear loads. High resolution AC/DC current measurement with 0.1μA accuracy supports detailed diagnostics. Frequency measurement capability to 199.99 kHz supports advanced signal analysis.

Resistance measurement to 0.05 GΩ with fine resolution aids precise component testing. Robust safety ratings (CAT III and CAT IV) support use in demanding environments. Battery life of 800 hours supports long field operations.

Compact size and lightweight design enhance portability and ease of use.

This digital multimeter is an excellent tool for industrial, laboratory, HVAC, maintenance, electrical troubleshooting, and field service environments. It facilitates accurate multi-parameter electrical testing with durable construction and trusted Fluke quality.
