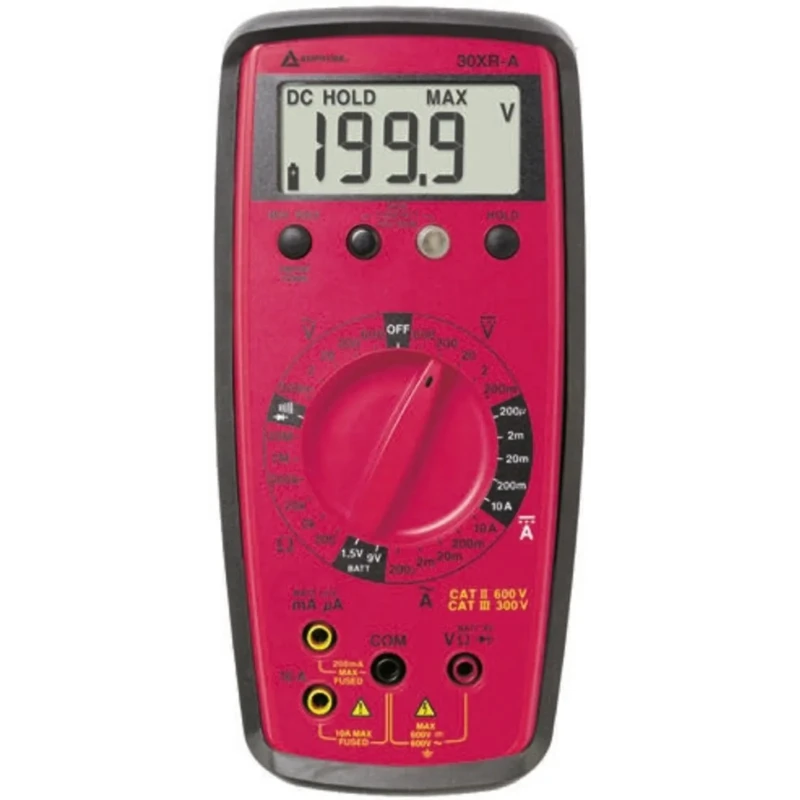

Amprobe Digital Handheld Multimeter 600 V, 10 A, LCD Display 30XR-A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | Amprobe |
| Battery Life | 200h |
| Height | 60mm |
| Length | 196mm |
| Model | 30XR-A |
| Gross Weight | 426g |
| Width | 92mm |
| Maximum Operating Temperature | 45°C |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±2 % rdg + 3 Digits |
| Resistance Measurement Accuracy | ±2 % rdg + 5 Digits |
| AC Current Accuracy | ±2.5 % rdg + 4 Digits |
| Resistance Resolution | 100mΩ |
| AC Current Resolution | 0.1μA ac |
| DC Current Resolution | 0.1μA dc |
| Multimeter Type | Digital |
| Functions Measured | AC Current, AC Voltage, Battery Test, DC Current, DC Voltage, Diode Test, Resistance |
| Maximum Resistance Measurement | 20000kΩ |
| Maximum DC Voltage Measurement | 600V dc |
| Maximum DC Current Measurement | 10A |
| Maximum AC Voltage Measurement | 600V |
| Maximum Frequency | 500Hz |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 300, 600V |
| RS PRO IDM67 Handheld MultimeterBrand | RS PRO |
Key Features
- Measures maximum DC and AC voltage up to 600 V safely within CAT II and CAT III classifications.
- Supports current measurement up to 10 A for load and fault checks.
- Equipped with LCD display providing clear resolution including 100 μV DC voltage and 0.1 μA current.
- Offers resistance measurement range up to 20,000 kΩ suitable for high-value resistors.
- Operation temperature range from 0°C to 45°C for reliable field use.
- Battery life up to approximately 200 hours under normal conditions ensuring long usage.
- Design includes a compact form factor with dimensions 196 mm length, 92 mm width, and 60 mm height.
- Provides accuracy within ±1 % reading plus 1 digit for DC voltage and ±2 % for resistance measurements.
Product Description
Amprobe 30XR-A digital handheld multimeter is designed for electrical and light industrial environments to provide precise measurement of voltage, current, resistance, and diode testing. This battery-powered meter supports AC and DC voltage measurements up to 600 V and current measurements up to 10 A, making it an essential tool for troubleshooting, maintenance, and verification tasks.
The device features an easy-to-read LCD screen that offers fine resolution with 100 μV for DC voltage and 0.1 μA for current, allowing detailed monitoring of electrical parameters. The resistance measurement capability goes up to 20,000 kΩ, suitable for high-resistance components.
Compact and ergonomic, the instrument measures 196 mm in length, 92 mm in width, and 60 mm in height while weighing just 426 g, enabling portable operation. It operates reliably between 0°C and 45°C ambient temperatures and possesses a battery life of approximately 200 hours under normal usage conditions.
Safety is ensured with CAT II and CAT III ratings supporting use in environments up to 600 V. Accuracy specifications include ±1 % reading plus 1 digit for DC voltage and ±2 % reading plus 5 digits for resistance, ensuring dependable measurements for electrical testing purposes.
This multimeter is ideally suited for industrial maintenance, electrical testing in construction, HVAC system diagnostics, manufacturing equipment assessment, laboratory usage, and component-level diode verification.
Measures maximum AC and DC voltage up to 600 V safely within CAT II and CAT III standards. Supports up to 10 A current measurement capability for checking electrical loads. High resolution LCD display for detailed voltage, current, and resistance readings.
Wide resistance measurement range to accommodate high-value resistors. Operating temperature range from 0°C to 45°C suitable for various working environments. Long battery life providing approximately 200 hours of usage before replacement.
Portable light design with compact dimensions conducive to handheld use. Accuracy suitable for professional electrical maintenance and troubleshooting. Explore more advanced Digital Multimeters and precision measurement instruments in the Industrial Machines & Instruments category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure maximum AC and DC voltage up to 600 V.
This model supports current measurements up to 10 A.
It has a resistance measurement range of up to 20,000 kΩ.
The accuracy for DC voltage measurements is ±1 % reading plus 1 digit.
It is equipped with an LCD display for clear resolution of measurements.
It operates reliably within an ambient temperature range of 0°C to 45°C.
The battery life is approximately 200 hours under normal usage conditions.
This model measures 196 mm in length, 92 mm in width, and 60 mm in height.
It complies with CAT II and CAT III safety category ratings for use in environments up to 600 V.
It can measure AC current, AC voltage, battery test, DC current, DC voltage, diode test, and resistance.
The resolution for DC current measurements is 0.1 μA.
The gross weight of this multimeter is 426 g.
