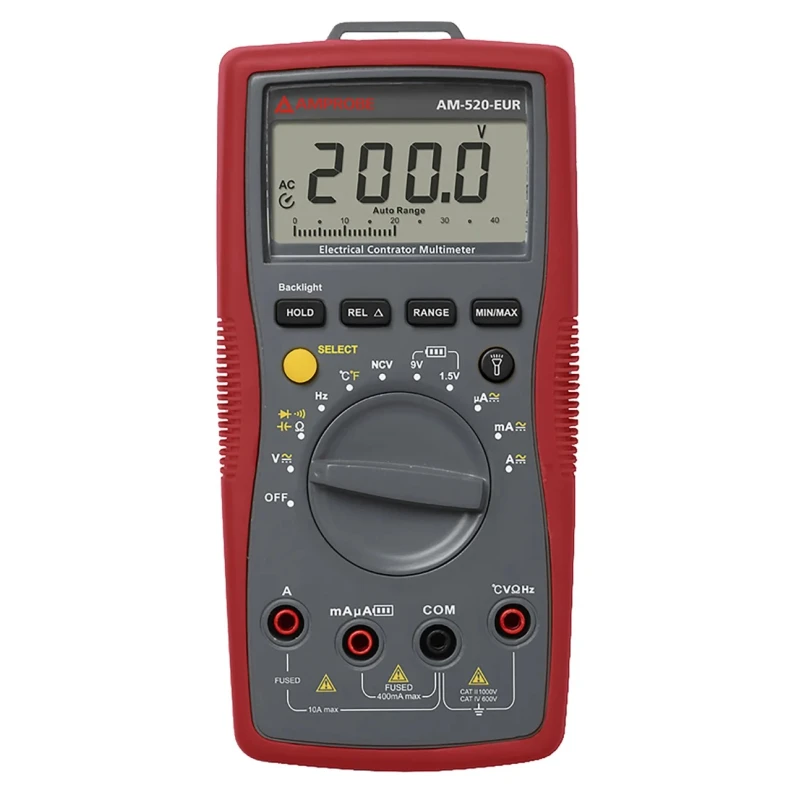

Amprobe Handheld Digital Multimeter with LCD Display AC/DC Voltage, Current, Resistance, Capacitance, Temperature AM-520-EUR
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | Amprobe |
| Height | 45mm |
| Length | 182mm |
| Model | AM-520-EUR |
| Gross Weight | 354g |
| Width | 90mm |
| DC Current Accuracy | ±1 % rdg + 2 Digits |
| Resistance Measurement Accuracy | ±1.2 % rdg + 2 Digits |
| AC Current Accuracy | ± 1.2 % rdg + 3 Digits |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature |
| Maximum Frequency | 400Hz |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 1kV |
Key Features
- Measures AC and DC current up to 10A with high accuracy.
- AC voltage and DC voltage up to 600V with ±1% and ±0.8% accuracy respectively.
- Backlit LCD display with analogue bar graph for monitoring changing signals.
- Includes non-contact voltage detection for enhanced user safety.
- Supports frequency measurement up to 10MHz for motor diagnostics.
- Supplied with K-type thermocouple for temperature measurement from −40°C to 1000°C.
- Durable handheld design weighing 354 grams for field use.
- Includes test leads, Type-K probe, battery, velcro strap, and carrying case.
Product Description
Amprobe AM-520-EUR handheld digital multimeter is engineered for HVAC and electrical professionals requiring accurate and versatile electrical measurements. This compact instrument features an LCD display with backlight and an analogue bar graph to assist in evaluating fast-changing electrical signals.
Capable of measuring AC/DC voltage and current up to 600V and 10A respectively, it achieves high accuracy with ±1.2% AC current and ±0.8% DC voltage precision. The multimeter measures resistance, capacitance, and temperature, supporting comprehensive diagnostics including motor start capacitors and flame sensor micro-amp measurements.
Included is a K-type thermocouple probe supporting temperature measurement ranges from −40°C to 1000°C, ideal for vent and transformer checks. The non-contact VolTect™ voltage detection enhances operator safety during electrical inspections.
The device meets CAT III 600V and CAT II 1000V safety ratings, suitable for industrial and commercial applications including troubleshooting, maintenance, and automation panel verification.
Package contents include one 9V battery installed, test leads, Type-K probe, velcro strap, carrying case, and user manual. Measures up to 10A AC/DC current with ±1.2% accuracy. AC/DC voltage measurement to 600V with autoranging and manual options.
Backlit LCD with analogue bar graph for signal monitoring. Capacitance and frequency ranges support motor diagnostic tasks. Non-contact voltage detection improves safety during use. Includes K-type thermocouple for wide temperature range.
Handheld ergonomic design weighing 354 grams for field portability. Supplied complete with leads, probe, and carrying case.
This Multimeter is suitable for industrial, HVAC, electrical, laboratory, manufacturing, and maintenance work. Discover quality measuring solutions in the Electrical Test & Measurement category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can measure AC and DC voltage up to 600V.
The accuracy for measuring DC current is ±1% of reading plus 2 digits.
This multimeter can measure AC/DC current up to 10A.
The K-type thermocouple can measure temperatures from −40°C to 1000°C.
It meets CAT II 1000V and CAT III 600V safety ratings.
The LCD display is backlit and includes an analogue bar graph for monitoring changing signals.
Included are test leads, a Type-K probe, a 9V battery, a velcro strap, and a carrying case.
The multimeter weighs 354 grams, making it portable for field use.
It can measure AC current, AC voltage, DC current, DC voltage, resistance, capacitance, and temperature.
It supports frequency measurements up to 400Hz.
The dimensions are 182mm in length, 90mm in width, and 45mm in height.
