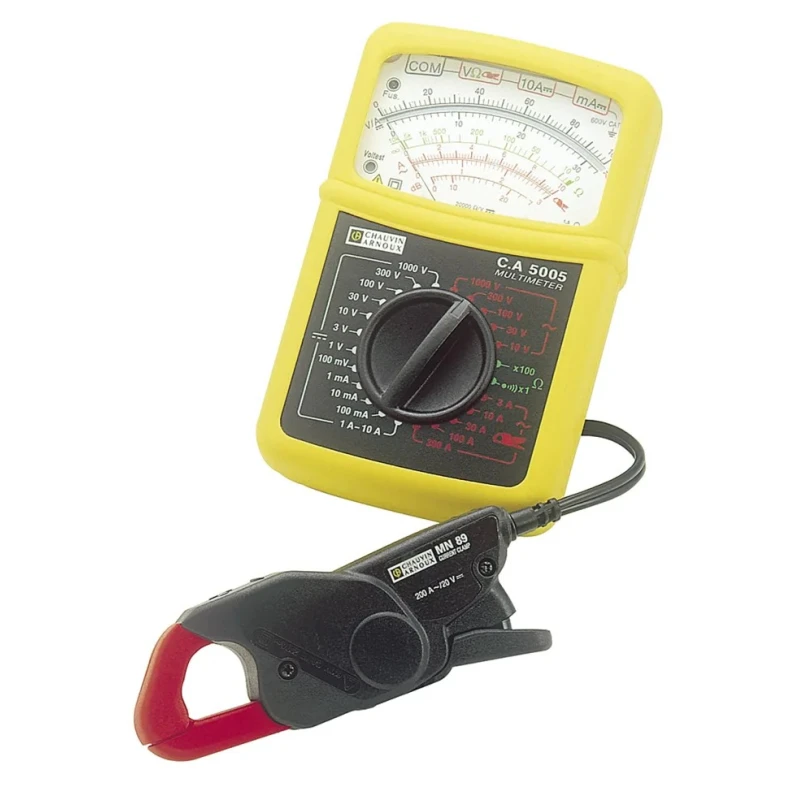

Chauvin Arnoux Handheld Multimeter 600 V DC CA 5005 P01196523F

Chauvin Arnoux CA 5005 handheld multimeter is a compact, lightweight analogue instrument providing comprehensive measurement capabilities for electricians and technical professionals. The multimeter supports measurement of AC and DC current, voltage, and resistance, offering maximum DC voltage capability of 600 V dc. Designed with ease of use and portability in mind, it features a length of 160 mm, width of 105 mm, height of 56 mm, and weighs only 500 grams.

This meter comes as a kit including the MN89 AC current clamp, which facilitates direct current measurement up to 240 A AC, along with a durable metal carrying case for safe transport. The supplied accessories also include silicone leads with banana plugs, safety test probes, and a 9 V battery for power.

The CA 5005 multimeter provides accuracy levels of ±2.5 % for AC current and voltage readings, and ±1.5 % for DC voltage. Additionally, it supports resistance testing down to 1 mΩ and features a dB scale from 0 to 22 dB as well as continuity testing. The instrument complies with IEC 61010-1 and IEC 61326-1 standards, categorised as CAT III 600 V / CAT II 1000 V, ensuring reliable and safe operation in demanding environments.

This robust multimeter is suitable for industrial, laboratory, construction, HVAC, manufacturing, and electrical maintenance applications where precise measurement and safety are critical. It can handle a wide range of measurement functions with multiple ranges for DC voltage, AC voltage, DC current, and AC current, complementing professional test setups.

The set contains 1 CA 5005 multimeter, 1 MN89 AC current clamp, 1 set of silicone leads with straight and angled banana plugs, 1 set of safety test probes, 1 carrying case, and 1 9 V battery 6LR06. Battery type AA alkaline (stock no.: 591-225) is also available separately.

Measures AC current, AC voltage, DC current, DC voltage, and resistance. Maximum DC voltage of 600 V dc and maximum resistance of 1 mΩ. Compact dimensions (160mm x 105mm x 56mm) and lightweight (500g) design. True RMS measurement not supported.

Includes MN89 clamp for AC current measurement up to 240 A. Compliance to IEC 61010-1 and IEC 61326-1 standards. Equipped with continuity testing and dB scale from 0 to 22 dB. Kit includes carrying case, silicone leads, safety test probes, and 9 V battery.
