Chauvin Arnoux Insulation & Continuity Tester 250 V Min, 1 kV Max, 40 GΩ, CAT IV CA 6522 P01140822
Specifications
| Country of Origin | France |
|---|---|
| Display Type | Digital |
| Brand | Chauvin Arnoux |
| Battery type | AA |
| Height | 211mm |
| Length | 108mm |
| Model | P01140822 |
| Gross Weight | 850g |
| Width | 60mm |
| Maximum Operating Temperature | 55°C |
| Tester Type | Insulation & Continuity Tester |
| Minimum Operating Temperature | -20°C |
| Test Current | 200mA |
| Minimum test Voltage | 250V |
| Safety Category Level | CAT IV |
| Safety Category Voltage | 600V |
| Maximum Test Voltage | 1kV |
| Insulation Testing Resistance | 40GΩ |
Key Features
- Provides accurate insulation testing with a maximum voltage of 1 kV.
- Features a digital display with 2 x 4000 counts and a logarithmic bar graph.
- Operates with 200 mA test current powered by AA batteries.
- Compact dimensions of 211 mm height, 108 mm length, and 60 mm width for portability.
- Equipped with CAT IV safety rating at 600 V for high-level electrical safety.
- Includes memory storage to compare measurement histories and diagnostic ratios.
- Designed to operate within -20°C to 55°C for varied industrial environments.
- Lightweight at 850 g with IP54 protection rating against dust and splashing water.
Product Description

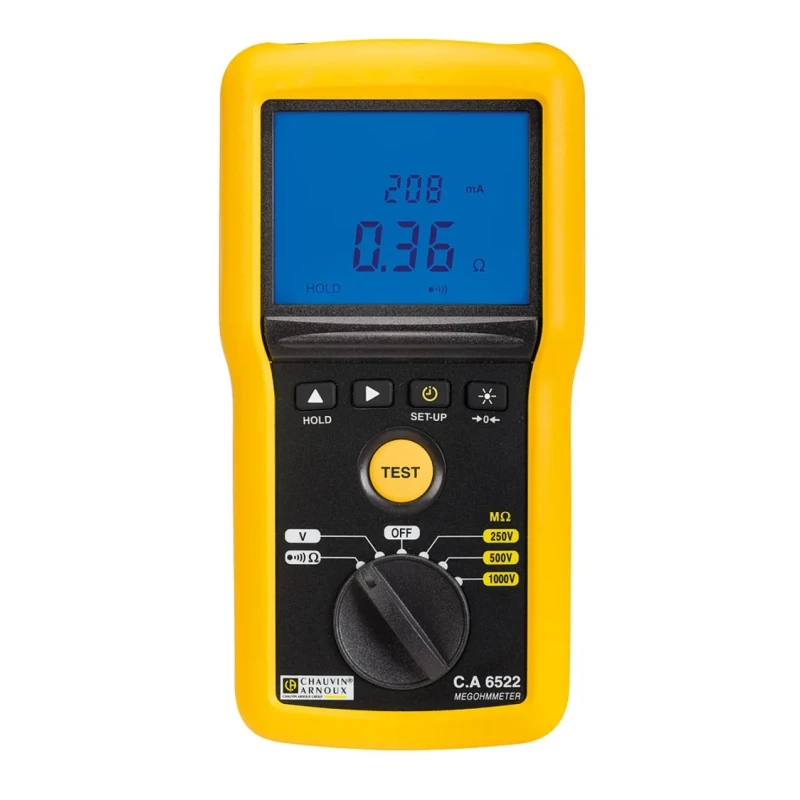

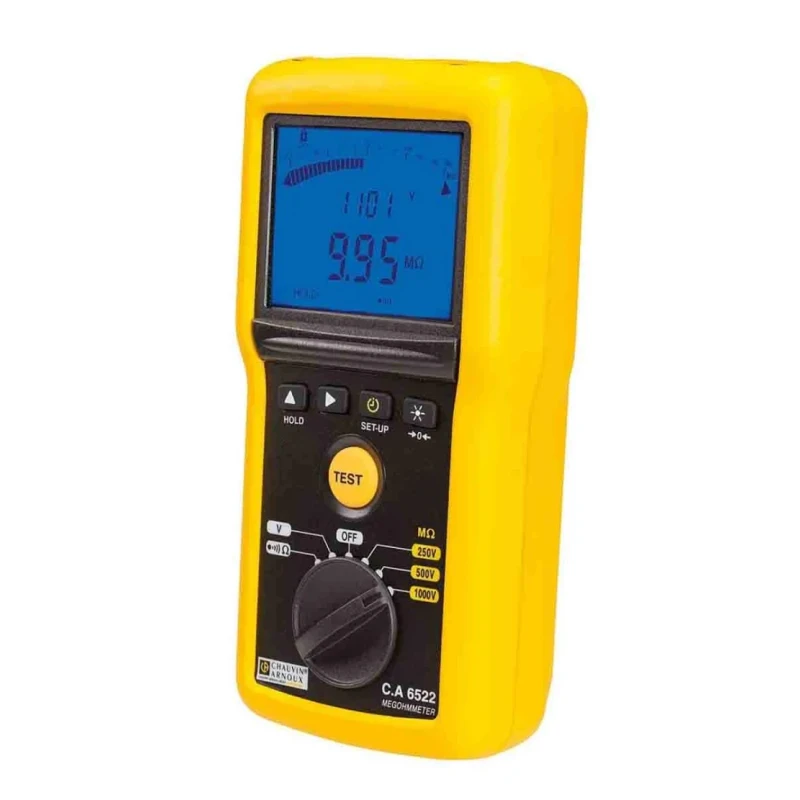

Chauvin Arnoux CA 6522 Insulation & Continuity Tester is a robust and reliable instrument designed for industrial maintenance and electrical testing. It measures insulation resistance with test voltages ranging from a minimum of 250 V up to 1 kV, enabling accurate detection of insulation aging and deterioration to prevent electrical incidents.
The tester features a digital display supporting 2 x 4000 counts with a logarithmic bar graph for precise readings. It provides instrumental diagnostics such as Polarization Index (PI) and Dielectric Absorption Ratio (DAR) to assess insulation quality.
Compact in size (211 mm x 108 mm x 60 mm) and lightweight (850 g), the device offers ease of handling and portability. It operates on AA batteries, delivering a test current of 200 mA, and is rated to function safely in temperatures from -20°C to +55°C.
Construction complies with CAT IV safety at 600 V, ensuring protection in demanding electrical environments. The housing offers IP54 ingress protection against dust and water splashes, suitable for industrial and lab settings.
The product package includes a convenient carrying bag for hands-free use, elbowed and straight safety leads with red and black test accessories, six batteries, a multilingual user manual available on CD, a quick start guide, and safety datasheet.
Accurate insulation resistance measurement using voltages up to 1 kV. Memory storage capability for measurement comparisons over time. PI and DAR ratio calculations for detailed insulation evaluation. Compact and lightweight for easy industrial use.
Rated for high safety with CAT IV classification at 600 V. IP54 protection suitable for challenging working conditions. Comes with comprehensive accessories and multilingual documentation.
This tester is ideal for industrial maintenance, electrical contractors, and laboratory use where reliable insulation testing is critical for safety and equipment longevity. Explore more products in the Insulation Testers category at EnvMart for comprehensive electrical measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test voltage of this insulation tester is 1 kV.
This model can measure insulation resistance up to 40 GΩ.
It operates effectively within a temperature range of -20°C to 55°C.
It features a digital display with 2 x 4000 counts and a logarithmic bar graph for precise readings.
The tester provides a test current of 200 mA.
It is rated for CAT IV safety at 600 V, ensuring high-level protection in electrical environments.
The dimensions of this model are 211 mm in height, 108 mm in length, and 60 mm in width.
Included accessories are a carrying bag, elbowed and straight safety leads, six AA batteries, and a multilingual user manual on CD.
The gross weight of this unit is 850 g.
Yes, it includes memory storage to compare measurement histories and diagnostic ratios.
It operates on AA batteries.
This model has an IP54 protection rating against dust and splashing water.
