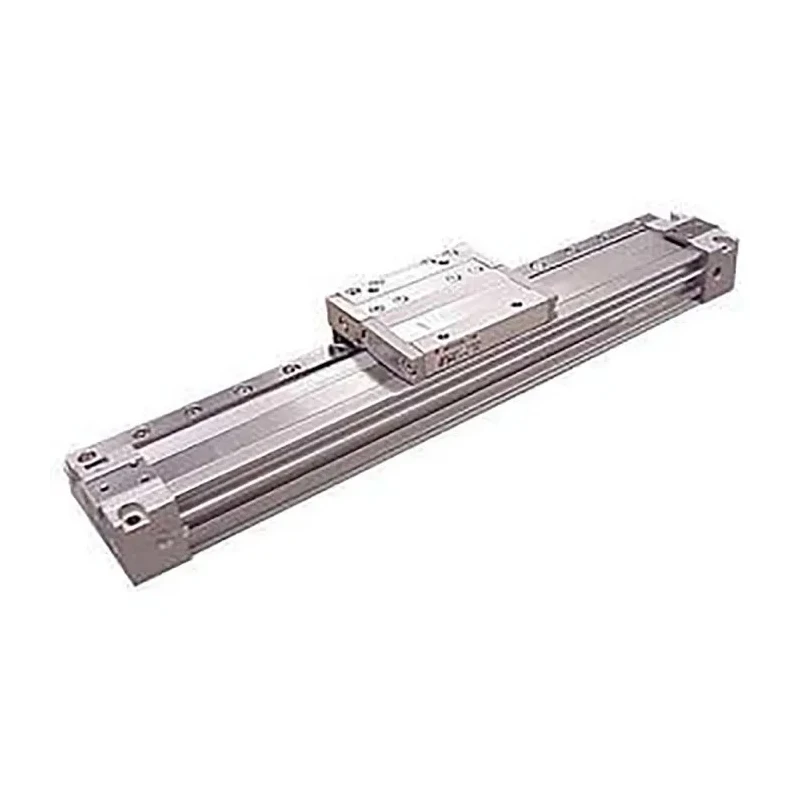

SMC Double Acting Rodless Pneumatic Cylinder 16mm Bore 300mm Stroke MY1H16G-300

SMC MY1H16G-300 is a double acting rodless pneumatic cylinder engineered for precise linear motion in industrial automation applications. Featuring a 16mm bore diameter and 300mm stroke length, this cylinder provides efficient pneumatic actuation with compact size and robust construction. The rodless design facilitates installation in constrained spaces while maintaining smooth operation.

The cylinder integrates a high precision guide to ensure accurate and stable movement, crucial for manufacturing, material handling, packaging, and assembly line equipment. It operates under a maximum pressure of 0.8 MPa with an air cushioning system to reduce impact and wear, enhancing durability and service life.

Designed for wall mounting, the MY1H16G-300 model has female ports with metric thread standards and port thread size M5 x 0.8 to fit a wide range of pneumatic setups. It functions reliably across a temperature range of 5°C to 60°C, suitable for diverse industrial environments.

Compact dimensions of 160mm length, 60mm width, and 40mm height make it ideal for applications requiring space-saving pneumatic actuation. The cylinder weighs approximately 740 grams, balancing light construction with operational strength.

Manufactured in Japan, the product complies with 2011/65/EU standards, ensuring adherence to quality and environmental directives. Constructed for double acting operation with rodless design for compact installation. Equipped with high precision guide for stable and accurate movement.

Operates at maximum pressure of 0.8 MPa with air cushioning. Designed for wall mounting orientation with female port gender and metric thread standard. Functions reliably within a temperature range of 5°C to 60°C. Compact dimensions and lightweight for efficient pneumatic systems.

Manufactured in Japan with compliance to relevant standards.

This pneumatic rodless cylinder is suitable for use in industrial automation, manufacturing, packaging machinery, HVAC systems, and laboratory equipment. It supports high precision pneumatic actuations where compact size and reliability are essential. For more products and options, browse the Pneumatic Rodless Cylinders category at EnvMart.
