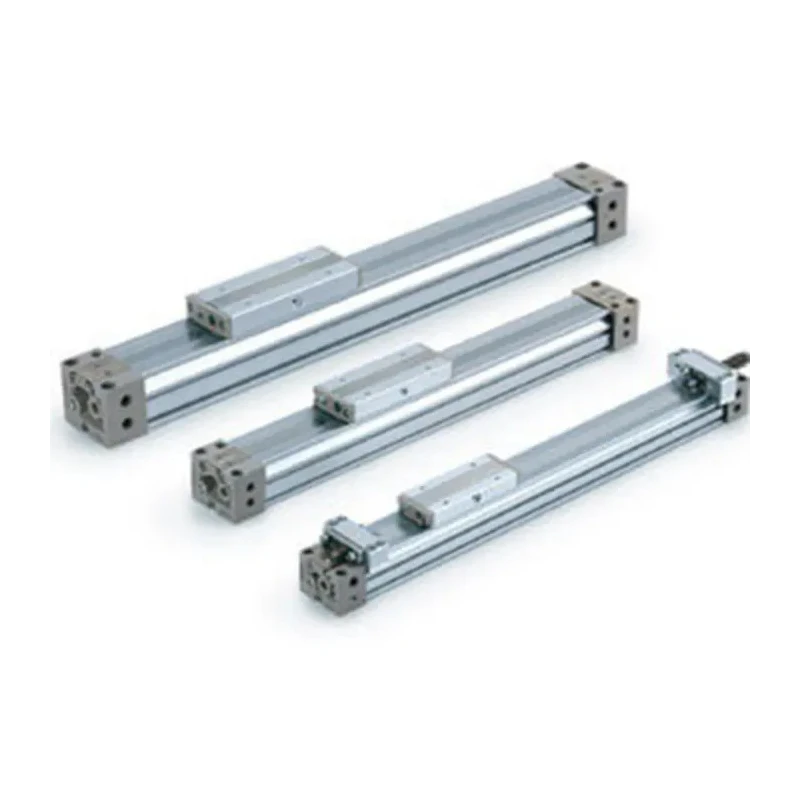

SMC Double Acting Rodless Pneumatic Cylinder 25mm Bore 300 mm MY1B25-300Z

SMC MY1B25-300Z is a double acting rodless pneumatic cylinder designed with a 25mm bore and a 300 mm stroke length, engineered for precise fluid power actuation in industrial applications. Constructed from durable aluminium alloy, this cylinder balances strength with lightweight design, optimizing efficiency in pneumatic systems.

Featuring a double acting mechanism, the cylinder enables balanced movement for pushing and pulling operations. The air cushioning type minimizes operational noise and mechanical shock, enhancing system life and reliability. The cylinder’s horizontal mounting orientation increases versatility across a variety of system configurations.

This rodless cylinder operates reliably up to a maximum pressure of 8 bar, suitable for many industrial, manufacturing, and automation processes. It functions effectively within a temperature range of 5°C to 60°C, making it adaptable to various environmental conditions.

Connectivity is facilitated through BSP standard connection threads and a 1/8 in Rc port thread size with female port gender, simplifying integration into existing pneumatic circuits. The basic guide type ensures stable piston movement over its 300 mm stroke.

SMC’s MY1B series rodless cylinders offer a compact footprint compared to traditional rod-style cylinders, with overall external dimensions of 520mm length, 54mm height, and 53mm width. Manufactured in the Czech Republic, it meets the 2011/65/EU standards and directives, ensuring compliance with international safety and environmental requirements.

These cylinders are widely employed in industrial automation, manufacturing, packaging, robotics, and fluid power systems requiring reliable linear motion. Their compact design and durable construction make them ideal for space-limited installations and high-performance pneumatic applications.

Equipped with an aluminium alloy body for lightweight and durability. Double acting action type for controlled push and pull motions. Maximum operating pressure of 8 bar for reliable industrial performance. Air cushioning type reduces shock and noise during operation.

Horizontal mounting orientation suitable for various installations. Operating temperature range from 5°C to 60°C to suit varied environments. Port gender is female with BSP connection thread standard and 1/8 in Rc port thread size.

Compact design with dimensions: length 520mm, height 54mm, width 53mm. Includes basic guide type ensuring smooth piston operation. Manufactured in the Czech Republic adhering to standard 2011/65/EU.
