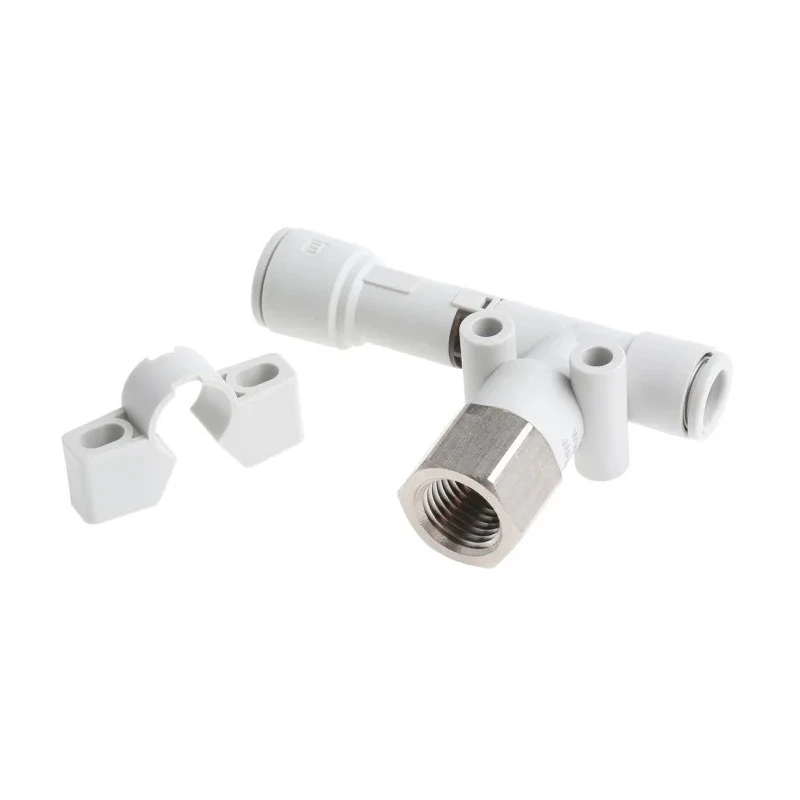

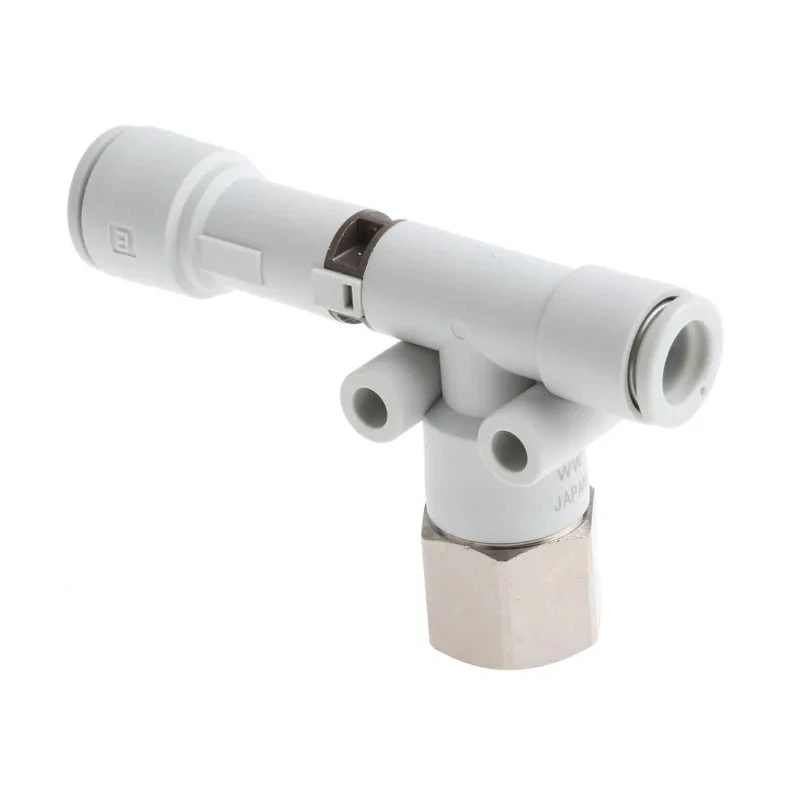

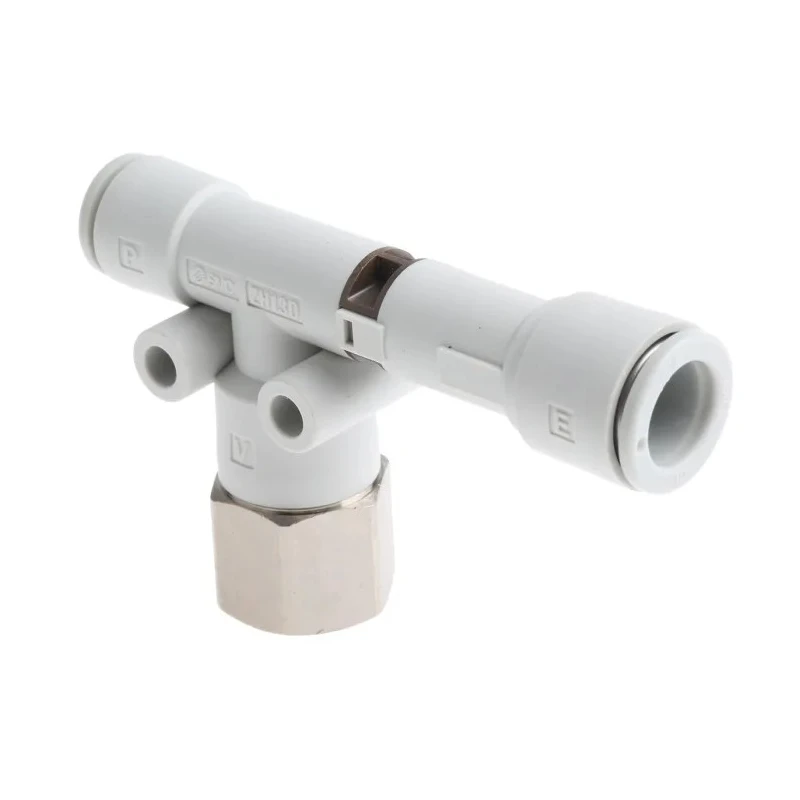

SMC Vacuum Generator 1.3mm Nozzle Diameter ZH13DSA-08-02-10

SMC ZH13DSA-08-02-10 Vacuum Generator is a compact pneumatic ejector featuring a 1.3mm nozzle diameter, designed to create negative pressure in industrial automation systems using compressed air. It integrates efficiently with standard tubing and fittings through one-touch and screw-in connections, ensuring easy installation and reliable performance.

The device delivers a maximum vacuum level of -90 kPa and a flow capacity of 40 liters per minute ANR, supporting moderate throughput in various automation tasks. It operates reliably across ambient and medium temperatures ranging from -5°C to 50°C, making it suitable for industrial environments.

The pneumatic inlet is a one-touch Ø8 connection to enable rapid tubing attachment, while the one-touch Ø10 vacuum and exhaust ports reduce installation time. It is compatible with tubing materials such as nylon, soft nylon, and polyurethane, ensuring versatility in assembly configurations.

This vacuum generator is ideal for end-of-arm tooling in robotic pick-and-place operations, vacuum handling of electronic components, pneumatic conveyors for lightweight parts, and holding fixtures in assembly stations. The inclusion of a screw-in vacuum port Rc1/4 offers flexible mounting options and integration possibilities.

The unit can be supplied with or without mounting brackets and silencers depending on the configuration, accommodating various industrial applications where compact and efficient vacuum generation is critical.

Maximum vacuum -90 kPa for effective pick-and-place gripping. Flow capacity 40 l/min ANR supports moderate throughput requirements. Nozzle nominal size 1.3mm facilitates focused vacuum generation. Pneumatic inlet one-touch Ø8 enables fast tubing connections.

One-touch Ø10 vacuum and exhaust connections reduce installation time. Compatible with nylon, soft nylon, and polyurethane tubing. Operating temperature range from -5°C to 50°C ensures broad application environments. Screw-in vacuum port Rc1/4 available for alternate mounting options.

Suitable for automation, robotic, electronic component handling, and pneumatic conveying systems.

This product represents a reliable and efficient vacuum generation solution for industrial automation, laboratory work, manufacturing, and material handling applications. Explore more Vacuum Generator options and pneumatic components in the Industrial Tools & Equipment category on EnvMart.
