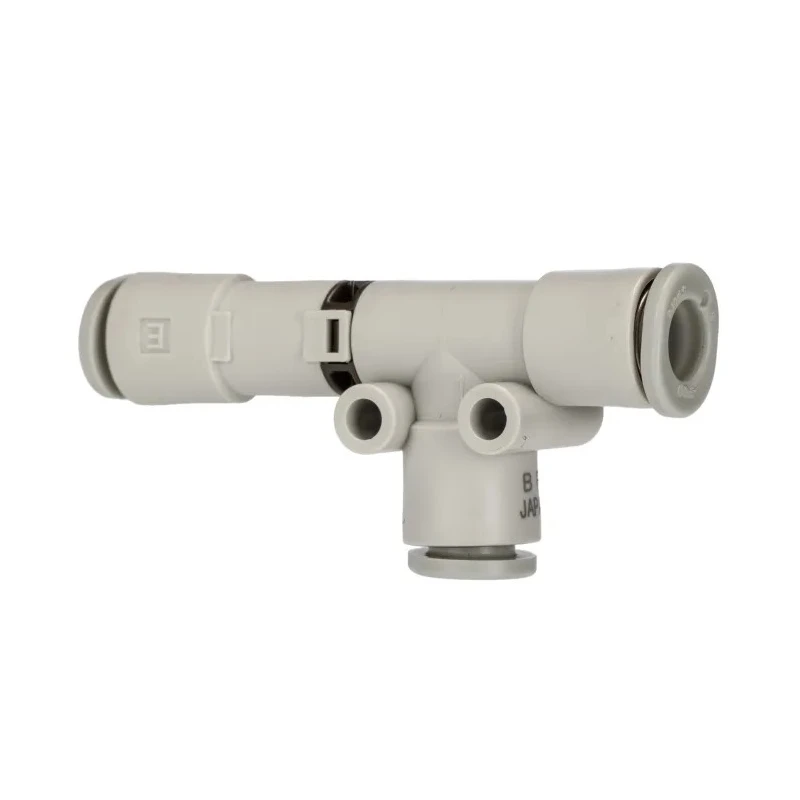

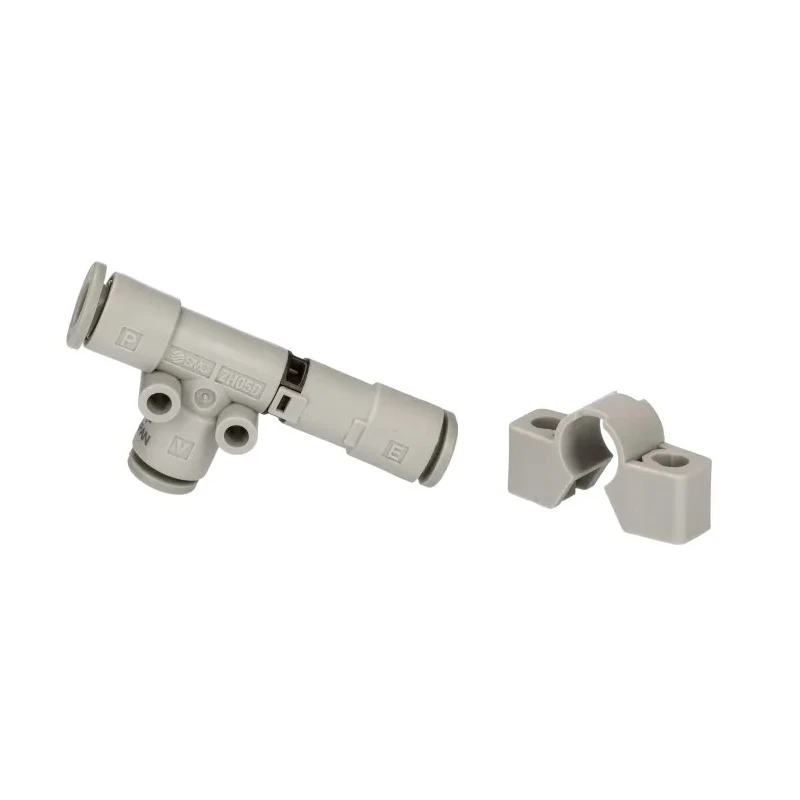

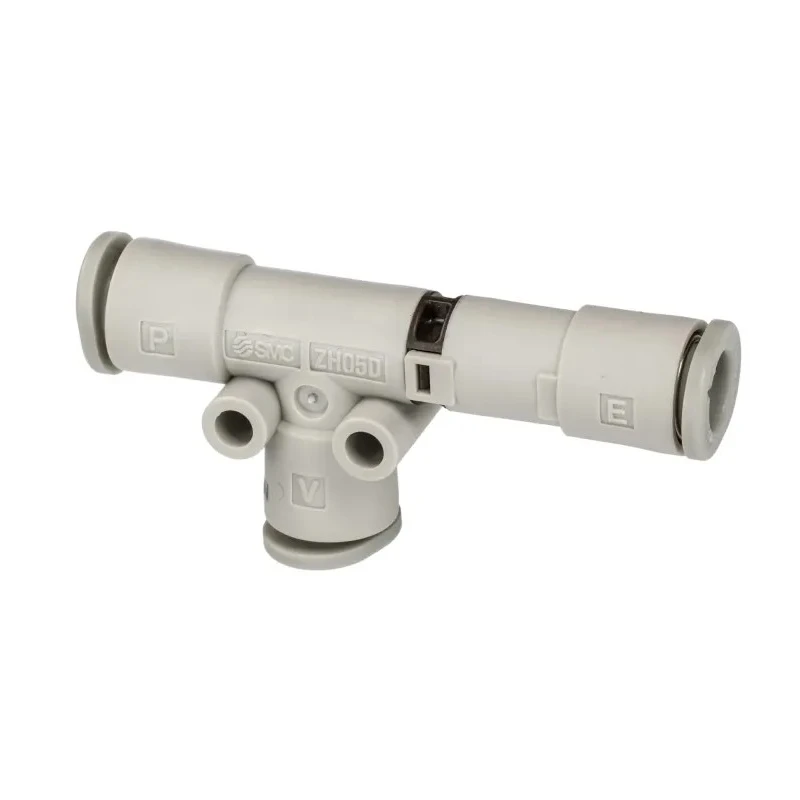

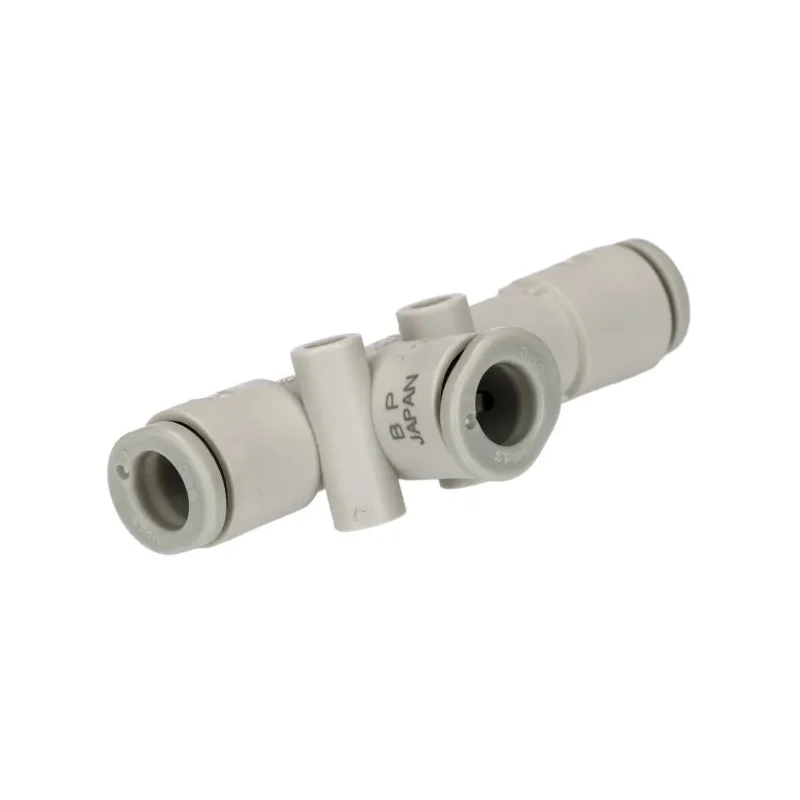

SMC Vacuum Generator for Use With ZH05DA, ZH15DA, Soft Nylon, ZH13DA, PFA, Nylon, FEP, Polyurethane ZH05DSA-06-06-06
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH05DSA-06-06-06 |
| For Use With | ZH05DA, ZH15DA, Soft Nylon, ZH13DA, PFA, Nylon, FEP, Polyurethane, ZH18DA, ZH07DA, ZH20DA, ZH10DA, ZH Series |
| Standards/Approvals | RoHS, JIS B8392-1:2012, ISO8573-1:2010 |
| Standards/ApprovalsRoHS, JIS B8392-1 | 2012, ISO8573-1:2010 |
Key Features
- Compact design allows easy integration in industrial pneumatic systems.
- Maximum vacuum pressure of -90 kPa ensures effective suction performance.
- 0.5 mm nozzle diameter offers precise material handling.
- One-touch fittings provide simple pneumatic connections.
- Operates efficiently within a temperature range of -5 °C to +50 °C.
- Suitable for air as the pressure medium, ensuring versatility.
- Compatible with nylon, soft nylon, PFA, FEP, and polyurethane tubing.
- Designed for pick-and-place, vacuum packaging, and laboratory applications.
Product Description
SMC ZH05DSA-06-06-06 Vacuum Generator is a precision-engineered pneumatic device designed for industrial automation and fluid power applications. It is compatible with a series of tubing materials including soft nylon, PFA, nylon, FEP, and polyurethane, offering flexibility in system integration. With a maximum suction flow rate of 6 L/min and a vacuum pressure capability of -90 kPa, this vacuum generator efficiently handles delicate components and materials.
The unit features a compact and robust design with a 0.5 mm nozzle diameter, allowing precise control for pick-and-place operations and material handling in electronics, food processing, and laboratory environments. One-touch fittings simplify installation and maintenance, minimizing downtime in industrial settings.
Operating reliably between -5 °C and +50 °C, and supporting a maximum input pressure of 0.45 MPa, it suits diverse pneumatic system requirements. Its compliant design meets RoHS standards and international quality standards like JIS B8392-1:2012 and ISO8573-1:2010.
Automation pick-and-place systems for manufacturing. Vacuum packaging in food production lines. Material handling in electronic component assembly. Precise sample manipulation in laboratory environments. Robotic component handling requiring efficient suction control.
Maintenance: Regular inspection of fittings and seals is recommended to ensure sustained performance. Keeping the device and environment clean prevents blockages and maintains suction efficiency.
Explore the SMC Vacuum Generator range on EnvMart for reliable pneumatic solutions tailored to industrial, manufacturing, and laboratory demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum vacuum pressure of this model is -90 kPa, ensuring effective suction performance for various applications.
This vacuum generator has a maximum suction flow rate of 6 L/min, suitable for handling delicate components and materials.
It is compatible with soft nylon, PFA, nylon, FEP, and polyurethane tubing, providing flexibility in system integration.
The vacuum generator operates efficiently within a temperature range of -5 °C to +50 °C, accommodating various industrial environments.
The nozzle diameter of this model is 0.5 mm, allowing for precise control during material handling operations.
This unit supports a maximum input pressure of 0.45 MPa, making it suitable for diverse pneumatic system requirements.
It complies with RoHS standards and international quality standards such as JIS B8392-1:2012 and ISO8573-1:2010.
This model is designed for applications including pick-and-place systems, vacuum packaging, material handling in electronics, and laboratory sample manipulation.
The one-touch fittings simplify installation and maintenance, minimizing downtime in industrial settings and enhancing operational efficiency.
The vacuum generator is manufactured in Japan, ensuring adherence to high-quality standards.
Regular inspection of fittings and seals is recommended to ensure sustained performance and to prevent blockages that may affect suction efficiency.
It is designed for use with models ZH05DA, ZH15DA, ZH13DA, and others in the ZH series, providing versatility in application.
