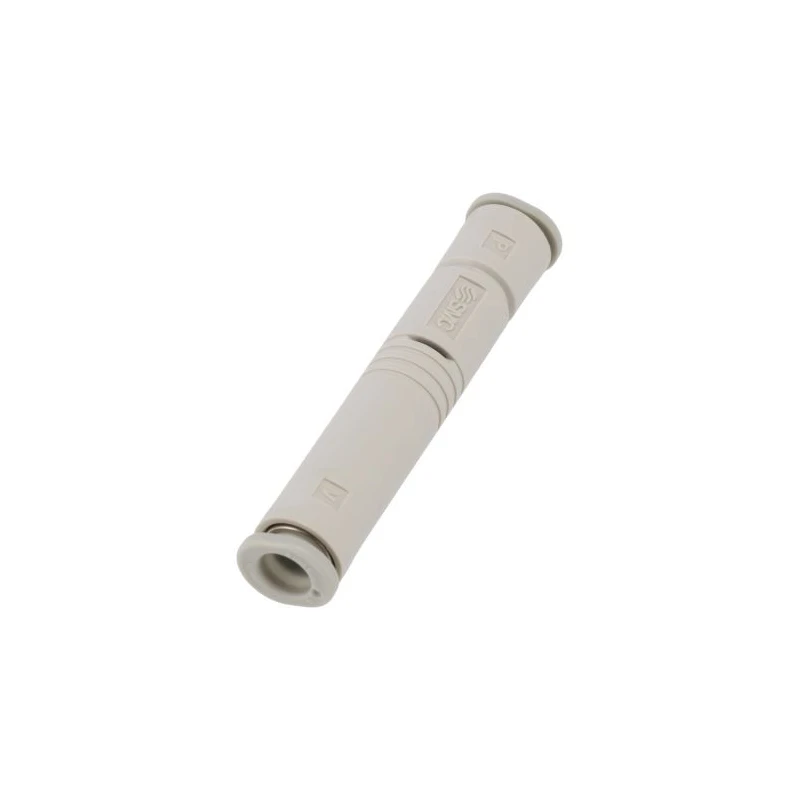

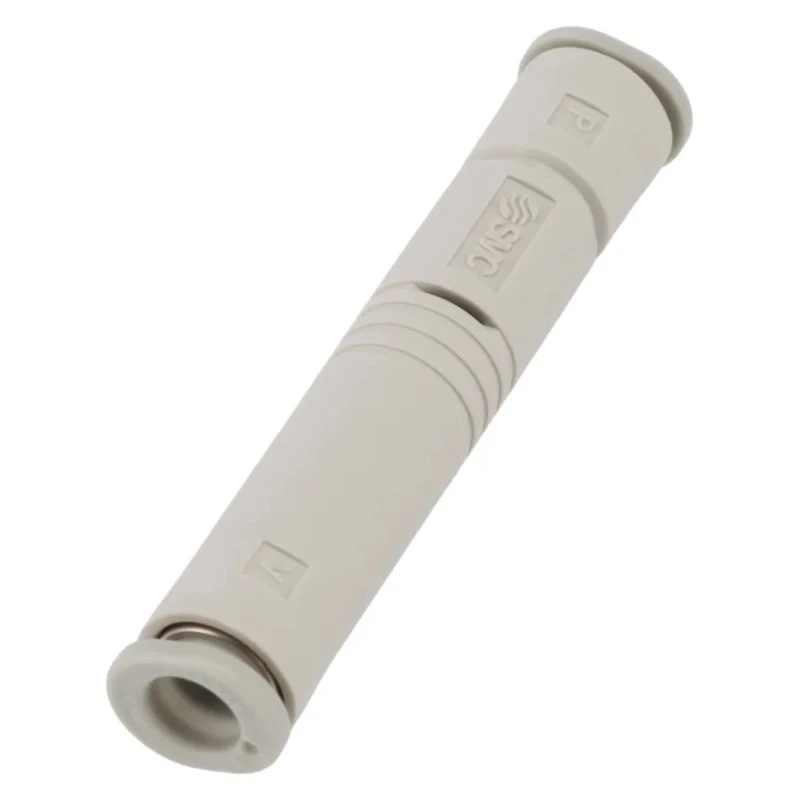

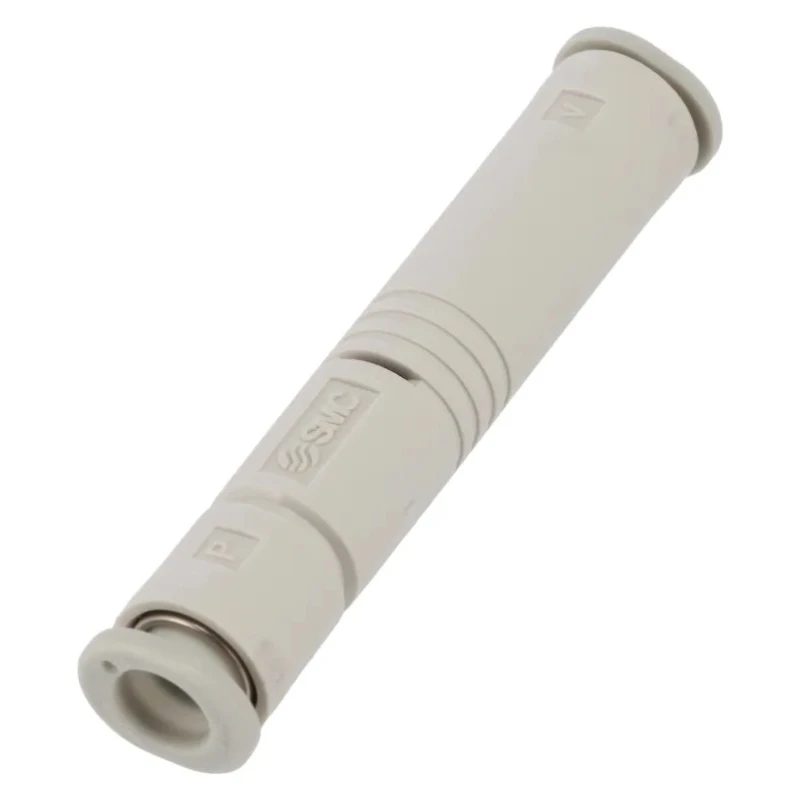

SMC Vacuum Generator Compact In-Line Ejector Vacuum Functionality 0.1 to 0.6 MPa Pressure Range ZU07LA

SMC ZU07LA Vacuum Generator is a compact and efficient in-line ejector designed to produce vacuum via compressed air for diverse automation uses in electronics, electrical assembly, and mechanical workflows. It supports a pressure range of 0.1 to 0.6 MPa and offers a maximum flow rate of 16 l/min enabling reliable suction performance across multiple industrial tasks.

Engineered for integration with common tubing materials like FEP, PFA, nylon, soft nylon, and polyurethane, this vacuum generator simplifies installation and flexibility in pneumatic systems. Its air consumption rate of 28 l/min ensures efficient operation reducing supply demand.

Operating safely within ambient temperatures ranging from -5 to 50 °C, the device prevents freezing conditions that could impair suction. The unit includes various nozzle sizes (0.3 to 0.7 mm) allowing customization of suction flow and vacuum pressure according to specific workpiece requirements.

Notably lightweight at 2.4 to 4.3 grams, the ZU07LA minimizes inertial impact, making it suitable for mounting on moving assemblies in pick-and-place and handling equipment. One-touch fittings for ø4 and ø6 tubing streamline pneumatic line connections ensuring rapid installation.

Maximum flow rate of 16 l/min provides steady suction capacity. Maximum vacuum pressure of -90 kPa enables deep evacuation of cavities. Air consumption of 28 l/min lowers supply demand. Compatible with multiple tubing types including FEP, PFA, nylon, soft nylon, and polyurethane.

Pressure range from 0.1 to 0.6 MPa supports standard plant supplies. Operational temperature between -5 and 50 °C prevents freezing damage. Multiple nozzle sizes allow suction customization per application. Lightweight design reduces inertial load on moving assemblies.

One-touch fittings allow for quick pneumatic tubing installation.

This vacuum generator finds applications in electronics assembly for pick-and-place tasks, mechanical cells for small-component handling, pneumatic grippers for PCB transfer, and vacuum hold-down operations in light manufacturing environments. Its adherence to international standards such as ISO 4413, ISO 8573-1:2010, ISO 4414, IEC 60204-1, and ISO 10218-1 assures compatibility and reliability within industrial workflows.

Explore more from SMC in the Vacuum Generator category for quality pneumatic components designed for industrial automation and fluid power systems.
