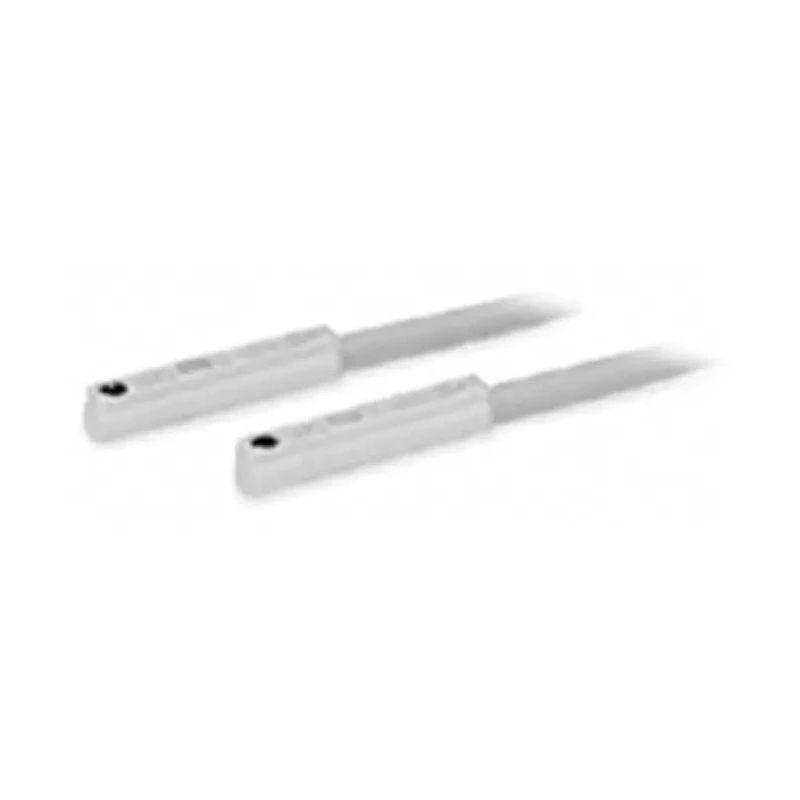

SMC 2-Wire Direct NPN Solid State Pneumatic Switch 24V dc LED Indicator D-M9BWL
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Height | 18mm |
| Model | D-M9BWL |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | NPN |
| Mount Type | Direct |
| Series | D-M9 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| Standards/Approvals | RoHS, IEC 529 |
| Electrical Connection Type | 2-Wire |
| Applicable Load | PLC |
Key Features
- Operates with a 24V dc power supply for reliable control.
- Features IP67 watertight enclosure rating ensuring durability.
- Includes an LED indicator for clear operational status.
- Switching current of 40mA suitable for PLC loads.
- Suitable for use with various MSQ, MSZ, CDRQ2, CRJ, and MSQX series rotary actuators.
- Operating temperature range is from -10°C to 60°C, supporting various industrial environments.
- Compliance with RoHS and IEC 529 standards ensuring safety and quality.
Product Description
SMC D-M9BWL solid state pneumatic switch is engineered for pneumatic actuators requiring precise position sensing with the robustness of a watertight design. Featuring a direct mount type and a 2-wire NPN operation style, this switch operates on a 24V dc supply and includes a bright LED indicator for clear status visibility during operation.
The device is equipped with an IP67-rated enclosure, providing excellent resistance against dust and water ingress, making it suitable for harsh industrial environments including automation, manufacturing, and fluid power systems.
With a switching current of 40mA and compatibility with PLC loads, it serves as an essential component for controlling and monitoring pneumatic cylinders, particularly in models MSQ, MSZ, CDRQ2, CRJ, and MSQX series rotary actuators.
The switch is designed to function effectively within a temperature range of -10°C to 60°C, ensuring versatility across diverse operating conditions typical in industrial and laboratory settings.
Operates at 24V dc with 40mA switching current. Direct mount solid state switch with NPN output. LED indicator for operational feedback. IP67 rated watertight enclosure for durability. Compatible with multiple pneumatic rotary actuator series.
Meets RoHS and IEC 529 compliance standards. Compact form factor with dimensions W15.5mm x H18mm x D46mm.
This SMC solid state pneumatic switch is widely used in industrial automation, hydraulic and pneumatic tool applications, manufacturing processes, and fluid power control systems. Its reliable performance and robust design make it suitable for commercial and industrial pneumatic sensor integration where precision and durability are paramount.
Explore more pneumatic switches and related pneumatic sensors at EnvMart for comprehensive industrial tool solutions.
Explore more products in our Pneumatic Cylinder Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 24V dc.
The switching current for this unit is 40mA, making it suitable for PLC loads.
It has an IP67 rating, indicating it is watertight and resistant to dust ingress.
The operating temperature range is from -10°C to 60°C, allowing it to function in various industrial environments.
This switch employs a 2-wire NPN operation style.
The dimensions are 15.5mm in width, 18mm in height, and 46mm in depth.
It is suitable for use with MSQ, MSZ, CDRQ2, CRJ, and MSQX series rotary actuators.
This model features a direct mount type design.
It complies with RoHS and IEC 529 standards, ensuring safety and quality.
The LED indicator provides clear operational feedback during use.
The country of origin for this switch is Japan.
It uses a 2-wire electrical connection type.
