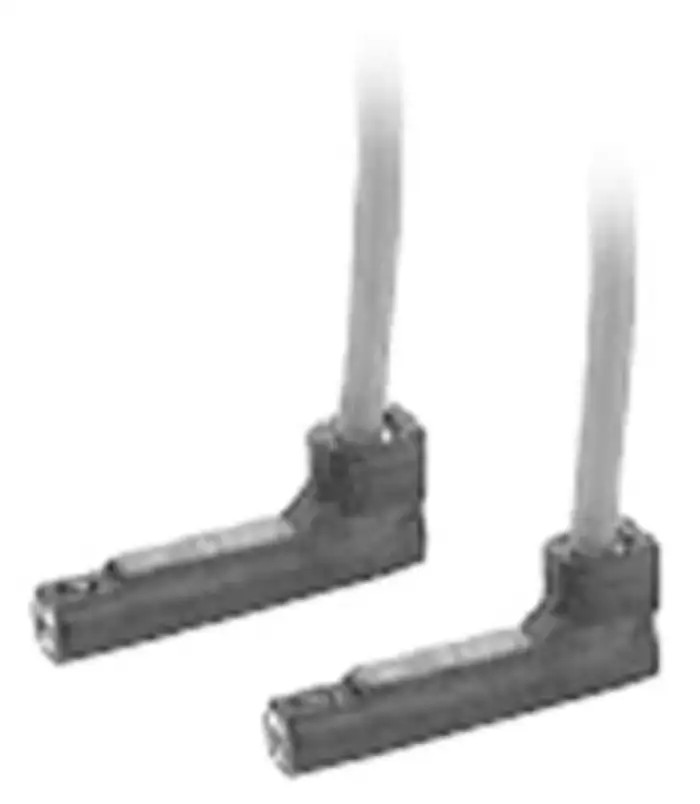

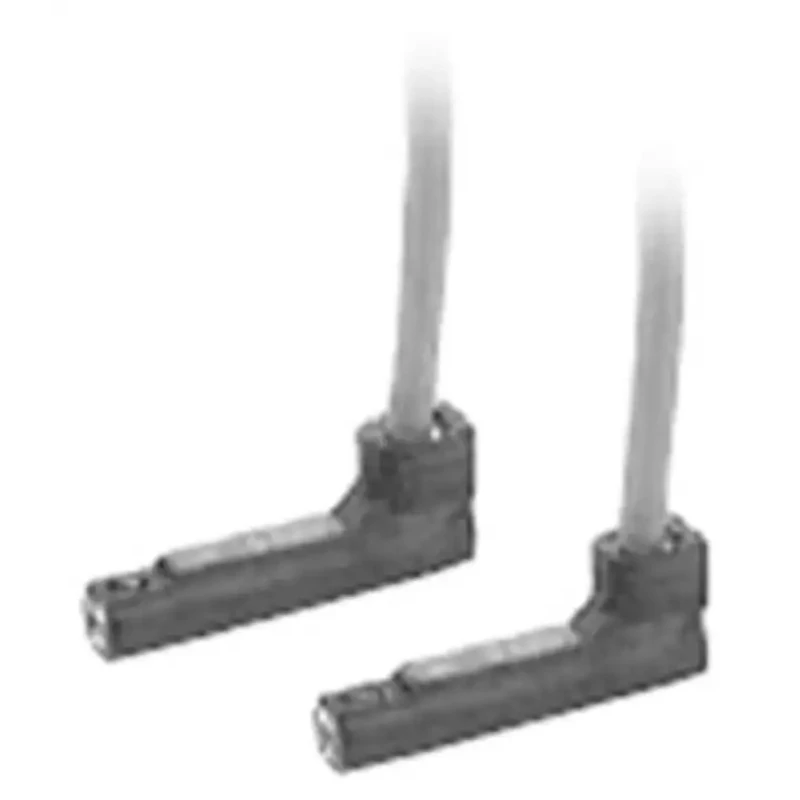

SMC 3 Pin M8 Direct PNP Reed Pneumatic Cylinder & Actuator Switch, 100 V AC/DC, Series D-A9 D-A90V
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100, 100V ac |
| Brand | SMC |
| Height | 18mm |
| Model | D-A90V |
| Depth | 46mm |
| IP Rating | IP67 |
| Enclosure | IEC529 criteria IP67, JISC0920 |
| Width | 15.5mm |
| Operating Time | 1.2ms or less |
| Operation Type | PNP |
| Mount Type | Direct |
| Series | D-A9 |
| Load Current | 50mA or less |
| Maximum Operating Temperature | 60°C |
| Sub Type | Reed |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| Standards/Approvals | IEC 529, RoHS |
| Electrical Connection Type | 3 Pin M8 |
| Applicable Load | IC Circuit/Relay/PLC |
| Ambient temperature rating | -10 to 60 °C |
Key Features
- Features a direct mount type with a 3 Pin M8 electrical connection.
- Utilizes a PNP operation type for compatibility with various control systems.
- Provides IP67 rated protection for operation in harsh environments.
- Supports switching current up to 40 mA and load current of 50 mA or less.
- Operates within a temperature range from -10°C to 60°C.
- Constructed with durable materials ensuring compliance with IEC 529 and RoHS standards.
- Suitable for a variety of industrial applications including automotive, food packaging, and electronics.
Product Description
SMC D-A90V Series D-A9 Direct PNP Reed Pneumatic Cylinder & Actuator Switch is a precision device designed for pneumatic actuators requiring reliable position sensing with a 3 Pin M8 connection. Operating on both 100 V AC and DC voltages, this reed switch offers robust switching capabilities up to 40 mA with load currents not exceeding 50 mA.
The switch features a compact and durable design with dimensions of 15.5 mm width, 18 mm height, and 46 mm depth. It conforms to IEC 529 criteria, offering an IP67 enclosure rating, guaranteeing excellent protection against dust and water ingress, making it suitable for challenging industrial environments.
The device operates efficiently within an ambient temperature range of -10°C to 60°C and is RoHS compliant, ensuring it meets environmental safety standards. Its built-in indicator lights and set screws provide convenient installation and operation, available in multiple wiring configurations for versatile applications.
Typical applications span industries such as automotive, heavy vehicle manufacturing, food and beverage processing, material handling, packaging, petroleum, chemical processing, steel manufacturing, textile production, electronics, and life sciences.
Direct mount type reed switch for pneumatic actuators. 3 Pin M8 electrical connection with PNP operation. IP67 rated enclosure for dust and water resistance. Switching current of 40 mA and load current 50 mA or less. Operational ambient temperature -10°C to 60°C.
Compact size suitable for constrained installation spaces. Meets IEC 529 and RoHS standards for safety and environmental compliance. Durable vinyl sheath cable with oval shape for flexibility. Fast operating time of 1.2 ms or less for precise control.
This pneumatic cylinder switch is a reliable solution for precise position sensing in industrial pneumatic systems, enhancing control and safety in automated manufacturing, material handling, and processing operations. Explore EnvMart’s extensive range of Pneumatic Cylinder Switches for compatible accessories and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch supports a switching current of up to 40 mA and a load current of 50 mA or less.
It operates efficiently within a temperature range from -10°C to 60°C.
This model features a 3 Pin M8 electrical connection type.
It has an IP67 rating, providing excellent protection against dust and water ingress.
The dimensions of this model are 15.5 mm in width, 18 mm in height, and 46 mm in depth.
The maximum operating time is 1.2 ms or less, allowing for precise control.
Yes, it complies with IEC 529 and RoHS standards for safety and environmental compliance.
It utilizes a PNP operation type, making it compatible with various control systems.
It is suitable for a variety of industrial applications including automotive, food packaging, and electronics.
The switch is constructed with durable materials, ensuring compliance with relevant standards.
The D-A90V pneumatic cylinder switch is manufactured in Japan.
Yes, it is applicable for use with IC circuits, relays, and PLCs.
