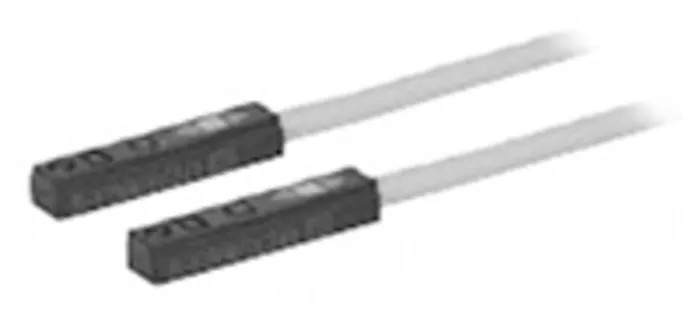

SMC 2-Wire Open End Cable Direct NPN Solid State Pneumatic Cylinder & Actuator Switch 24V dc LED D-Y7BW
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Height | 18mm |
| Model | D-Y7BW |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | NPN |
| Mount Type | Direct |
| Series | D-Y7 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| For Use With | Size 20 to 40 MHZ (L2) Series Air Grippers, Size 10 to 40 MHL2 Series Air Grippers, Size 32 to 63/80 to 125 Size MHS/MHSL Series Air Grippers, Size 20 to 50 MHVW2 Series Air Gripper |
| Standards/Approvals | IEC 529, RoHS |
| Electrical Connection Type | 2-Wire Open End Cable |
| Applicable Load | 24 V dc Relay/PLC |
| Electrical entry | grommet |
Key Features
- The switch features a 2-wire open end cable electrical connection for flexible installation.
- Operates at 24V dc with NPN operation type ensuring reliable solid state switching.
- Designed for use with various air grippers including sizes 10 to 125 across multiple series.
- Equipped with an LED indicator for operation status visibility.
- Rated IP67 for sensor enclosure ensuring superior dust and water resistance.
- Compatible with 24V dc relay and PLC loads with a switching current of 40mA.
- Supports operating temperatures ranging from -10°C to 60°C.
Product Description
SMC D-Y7BW 2-Wire Open End Cable Direct NPN Solid State Pneumatic Cylinder & Actuator Switch operates at 24V dc with LED indication, designed for precise control in pneumatic systems.
This switch belongs to the D-Y7 series, known for its ability to detect objects with a sensitivity difference of more than 0.5mm. It features a sensor enclosure with an IP67 rating, ensuring robust protection against dust and water, while the amplifier has an IP40 rating.
The product supports direct mounting and uses a grommet for its electrical entry, facilitating a secure and durable connection. It is suitable for sizes ranging from 10 to 125 mm across various air gripper series including MHZ, MHL2, MHS, MHSL and MHVW2, making it versatile for pneumatic cylinder and actuator applications.
Its operation type is NPN with solid state technology, which offers improved reliability and longer life compared to mechanical switches. The device features a red LED to indicate the sensitive position and a green LED for optimum detecting position, improving ease of installation and troubleshooting.
The D-Y7BW is compatible with 24V dc relay/PLC loads and has a switching current of 40mA. It operates efficiently within an ambient temperature range of -10°C to 60°C, making it suitable for diverse industrial environments.
Height, width and depth of the device are 18mm, 15.5mm, and 46mm respectively, allowing for compact installation in constrained spaces while maintaining functional efficiency. The switch features a 2-wire open end cable electrical connection for flexible installation.
Operates at 24V dc with NPN operation type ensuring reliable solid state switching. Designed for use with various air grippers including sizes 10 to 125 across multiple series. Equipped with an LED indicator for operation status visibility.
Rated IP67 for sensor enclosure ensuring superior dust and water resistance. Compatible with 24V dc relay and PLC loads with a switching current of 40mA. Supports operating temperatures ranging from -10°C to 60°C. Compact form factor with dimensions: Height 18mm, Width 15.5mm, Depth 46mm for easy mounting.
This switch is ideal for use in industrial automation, pneumatic control systems, manufacturing, and fluid power applications requiring durable and reliable position sensing. Explore more Pneumatic Cylinder Switches and actuator accessories with robust performance and quality at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at 24V dc.
The switching current is rated at 40mA.
The sensor enclosure has an IP67 rating, providing protection against dust and water.
The dimensions are 18mm in height, 15.5mm in width, and 46mm in depth.
It is designed for use with air grippers ranging from sizes 10 to 125 across various series, including MHZ, MHL2, MHS, MHSL, and MHVW2.
It features a 2-wire open end cable electrical connection for flexible installation.
The maximum operating temperature is 60°C.
This model operates using NPN solid state technology.
The minimum operating temperature is -10°C.
It complies with IEC 529 and RoHS standards.
It is designed for direct mounting and utilizes a grommet for its electrical entry.
It is compatible with 24V dc relay and PLC loads.
