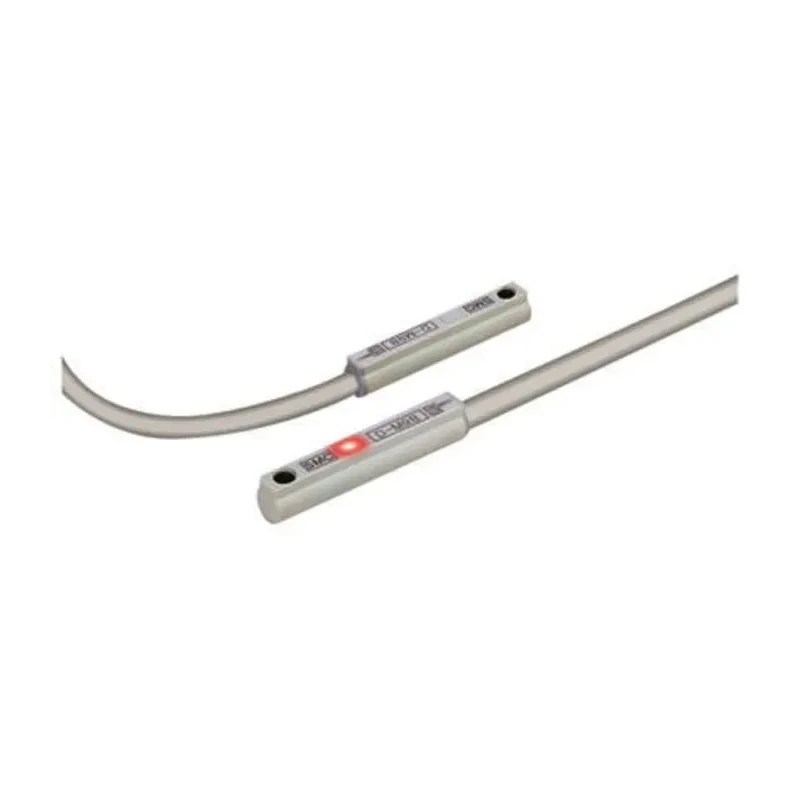

SMC 3 Pin M8 Direct PNP Solid State Switch Pneumatic Switch 0.8V LED Indicator D-M9PSDPC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 0.8V |
| Brand | SMC |
| Height | 18mm |
| Model | D-M9PSDPC |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | PNP |
| Mount Type | Direct |
| Series | D-M9 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| Standards/Approvals | RoHS, IEC 529 |
| Electrical Connection Type | 3 Pin M8 |
| Applicable Load | IC Circuit/Relay/PLC |
Key Features
- Operates within temperature range of -10°C to 60°C.
- Direct mount type with 3-pin M8 electrical connection.
- Maximum switching current of 40mA suitable for IC circuit, relay, and PLC loads.
- Compact design with dimensions 18mm (height) x 15.5mm (width) x 46mm (depth).
- Equipped with a red LED indicator for operation status.
- Conforms to RoHS and IEC 529 standards.
- Designed and manufactured in Japan ensuring high quality.
Product Description
SMC D-M9PSDPC 3 Pin M8 Direct PNP Solid State Switch Pneumatic Switch operates with a supply voltage between 4.5VDC and 28VDC and provides a reliable switching solution for pneumatic cylinder sensor applications. Featuring a 0.8V internal drop voltage and a red LED indicator, this switch is designed for efficient operation in industrial automation environments.
This switch supports a maximum load current of 40mA and uses a 3-wire PNP output configuration with a 500mm lead wire, allowing straightforward integration with IC circuits, relays, and PLCs. The direct mount design and 3-pin M8 connector simplify installation while ensuring a secure connection.
Operating temperature ranges from -10°C up to 60°C, making it suitable for diverse industrial conditions. Its compact size with dimensions of 18mm height, 15.5mm width, and 46mm depth, along with an IP67 rating, provides resistance against dust and water ingress, suitable for harsh environments.
The product meets RoHS and IEC 529 standards, further reinforcing its reliability and environmental compliance. Manufactured in Japan, it assures high-quality build and durability essential for industrial applications.
Common use cases include integration with pneumatic cylinders in industrial automation, manufacturing equipment, and fluid power systems. This solid-state switch enhances control precision and reduces wiring complexity with its pre-wired connector specification.
Operates within temperature range of -10°C to 60°C. Direct mount type with 3-pin M8 electrical connection. Maximum switching current of 40mA suitable for IC circuit, relay, and PLC loads. Compact design with dimensions 18mm (height) x 15.5mm (width) x 46mm (depth).
Equipped with a red LED indicator for operation status. Conforms to RoHS and IEC 529 standards. Designed and manufactured in Japan ensuring high quality. Explore our Pneumatic Cylinder Switch category for more industrial pneumatic sensor solutions designed for precision and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 40mA, making it suitable for IC circuits, relays, and PLC loads.
It operates within a temperature range of -10°C to 60°C, suitable for various industrial conditions.
This unit features a 3-pin M8 electrical connection type, allowing for straightforward integration.
The dimensions of this switch are 18mm in height, 15.5mm in width, and 46mm in depth.
It conforms to RoHS and IEC 529 standards, ensuring reliability and environmental compliance.
The internal drop voltage of this model is 0.8V, which is essential for its operation.
Yes, it has an IP67 rating, providing resistance against dust and water ingress, making it suitable for harsh environments.
This model operates using a PNP output configuration, which is common in industrial applications.
The switch comes with a 500mm lead wire, facilitating easy installation and connection.
It is designed and manufactured in Japan, ensuring a high-quality build.
Common applications include integration with pneumatic cylinders in industrial automation, manufacturing equipment, and fluid power systems.
This switch features a direct mount type design, simplifying the installation process.
