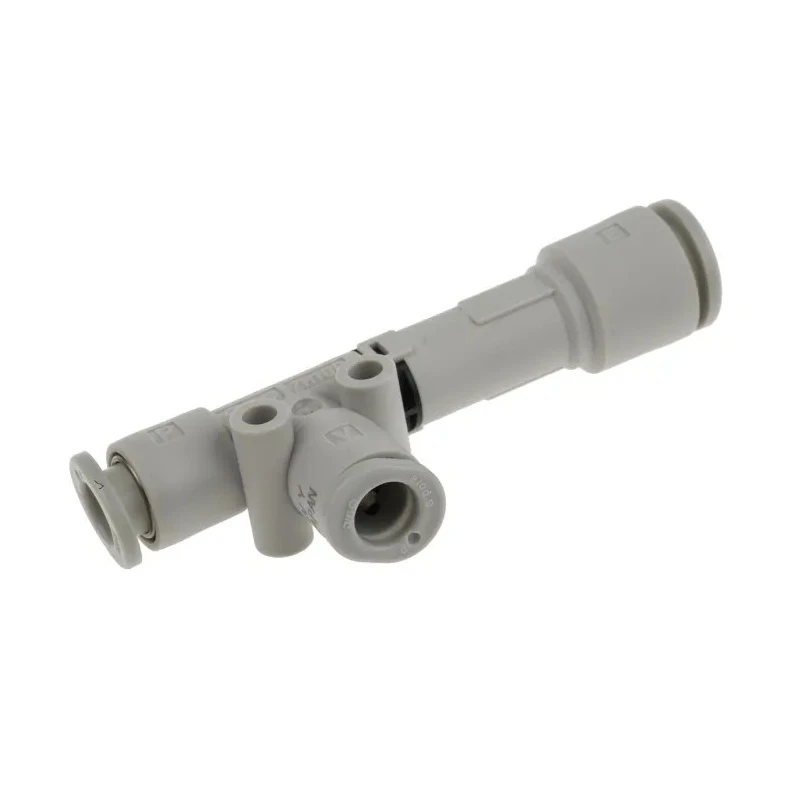

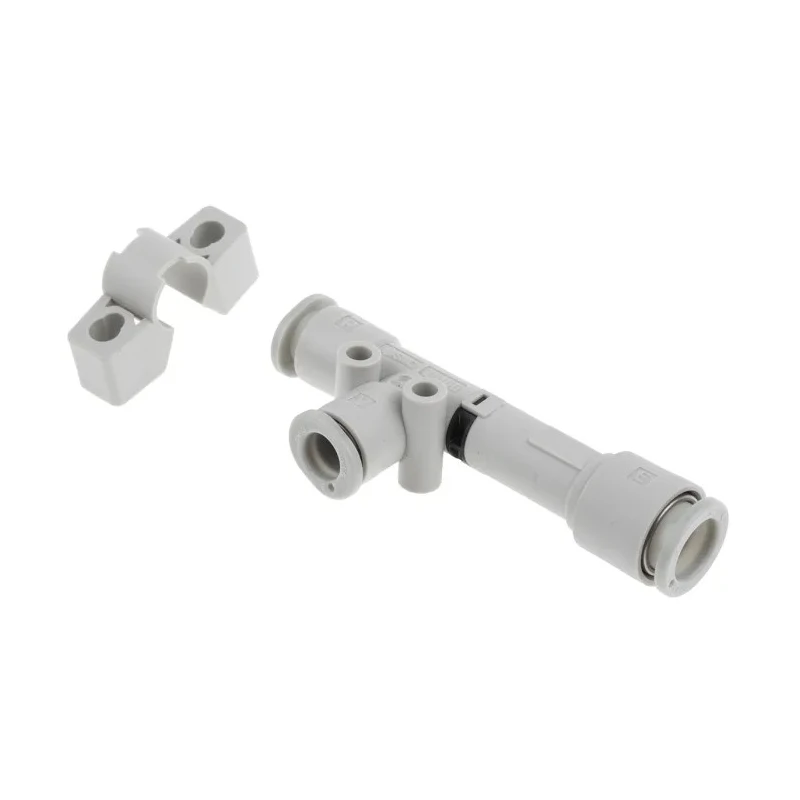

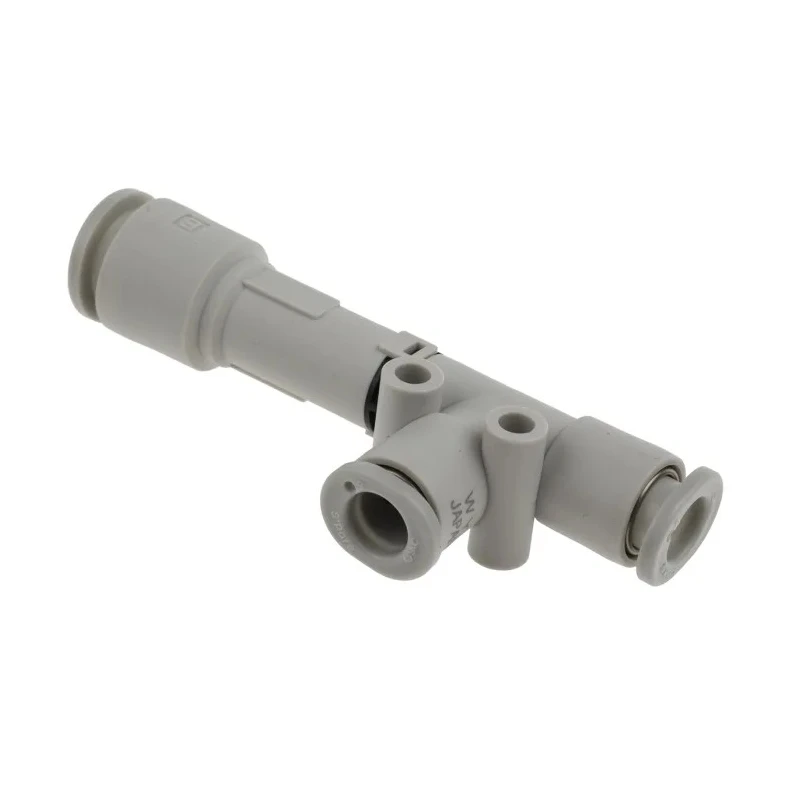

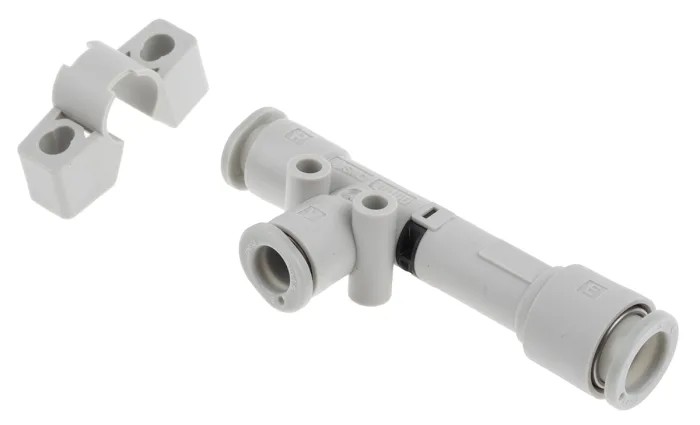

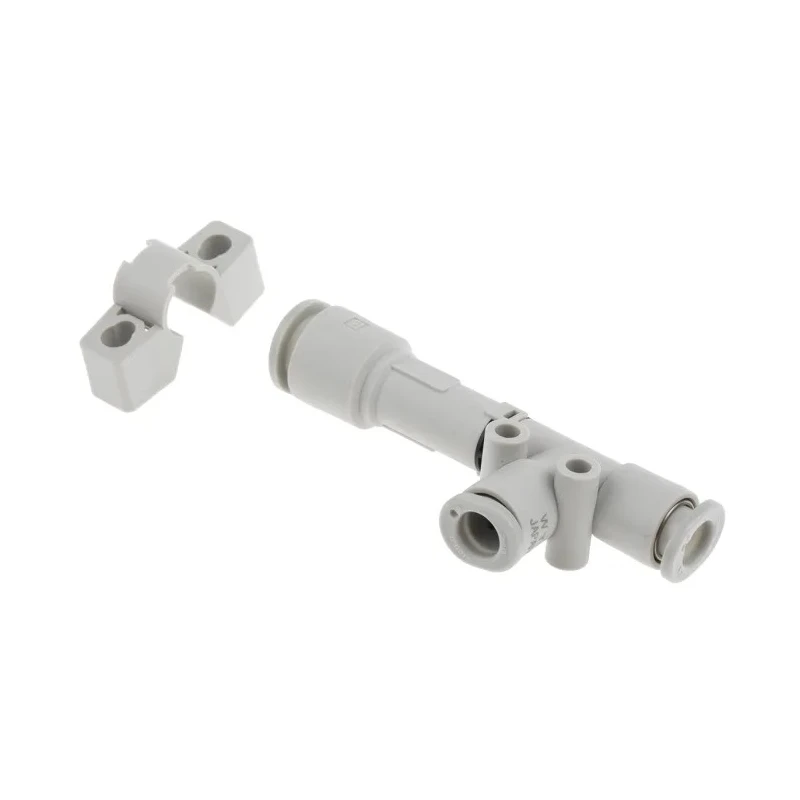

SMC Compact Pneumatic Vacuum Generator 1mm Nozzle Diameter, 52 l/min Flow Rate, Max Vacuum -48 kPa ZH10DLA-06-06-08
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | SMC |
| Model | ZH10DLA-06-06-08 |
| Standards/Approvals | RoHS |
Key Features
- The 1.0 mm nozzle diameter provides stable suction performance.
- Maximum vacuum pressure of -48 kPa enables efficient light part pick-up.
- Supports continuous airflow of 52 l/min (ANR) for uninterrupted operation.
- Equipped with one-touch fittings with Ø6 mm vacuum and Ø8 mm supply ports.
- Compatible with soft nylon, nylon, or polyurethane tubing for proper sealing.
- Operates within temperature range of -5 °C to 50 °C for factory conditions.

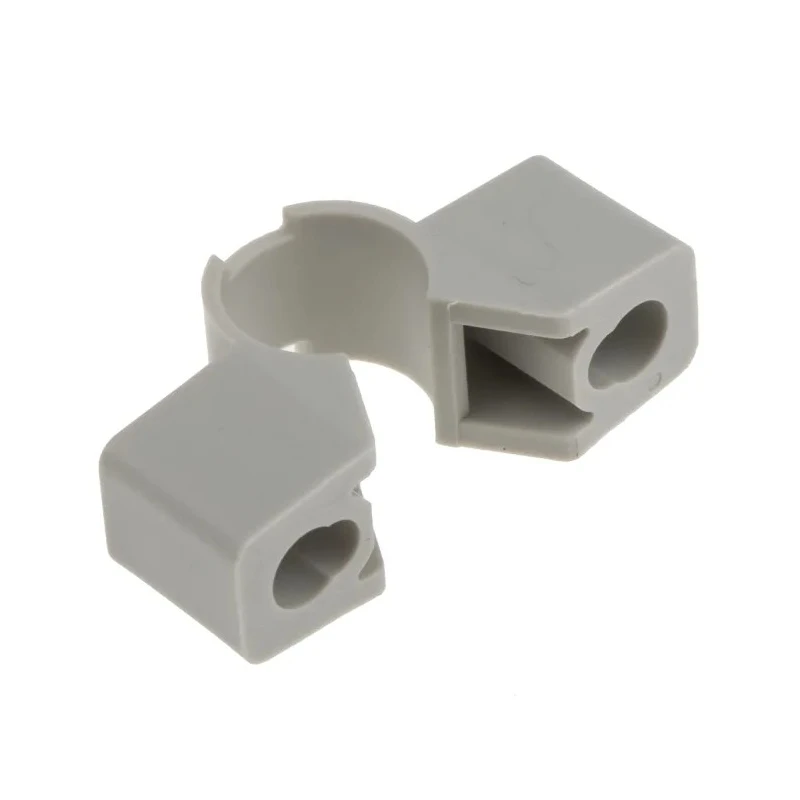

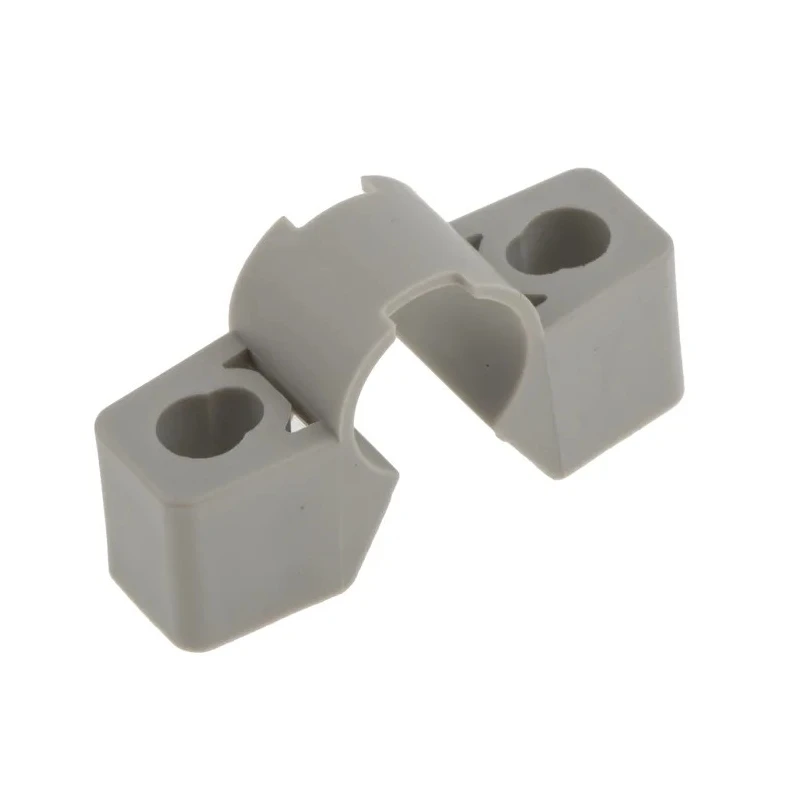

- Exhaust port uses one-touch Ø8 mm fitting with available bracket mounting.
- Ideal for pick-and-place, vacuum hold-down, and small material transfer tasks.
Product Description
SMC ZH10DLA-06-06-08 vacuum generator is a compact pneumatic ejector designed to create vacuum from compressed air for automation and material handling tasks. Featuring a 1.0 mm nozzle diameter, it delivers stable and reliable suction suitable for light industrial applications. The device supports a maximum vacuum pressure of -48 kPa and an airflow rate of 52 l/min (ANR) to sustain continuous operation.
This vacuum generator operates efficiently within ambient and pressure medium temperatures of -5 °C to 50 °C, conforming to typical factory conditions. It accepts one-touch pneumatic connections with Ø8 mm pneumatic supply and Ø6 mm pneumatic vacuum ports to facilitate quick hose assembly. The exhaust port also uses a one-touch Ø8 mm fitting and can be mounted with a bracket; models are available without silencers to accommodate compact installation needs.
The unit is compatible with soft nylon, nylon, or polyurethane tubing, ensuring proper sealing with its one-touch connectors. Its lightweight and compact design make it ideal where small vacuum sources are required.
Typical industrial applications include pick-and-place operations for electronic components, vacuum hold-down in assembly jigs used with pneumatic grippers within automation cells, and small material transfer in production lines. Its compact size and stable vacuum output offer reliable operation in various manufacturing and assembly environments.
The 1.0 mm nozzle diameter provides stable suction performance. Maximum vacuum of -48 kPa suitable for light part pick-up. Flow rate of 52 l/min supports continuous operation. One-touch Ø6 and Ø8 ports simplify tubing installation.
Operates with air temperatures up to 50 °C in typical factory conditions. Exhaust port accommodates one-touch Ø8 fitting with optional silencers. Compatible tubing materials include soft nylon, nylon, and polyurethane. Ideal for automation, assembly, and material handling applications in industrial settings.
Explore more pneumatic Vacuum Generators and components in the Industrial Tools & Equipment category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum vacuum pressure of this model is -48 kPa, making it suitable for light part pick-up applications.
It supports a continuous airflow rate of 52 l/min (ANR), ensuring uninterrupted operation during use.
This vacuum generator features a nozzle diameter of 1.0 mm, which provides stable suction performance.
It operates efficiently within a temperature range of -5 °C to 50 °C, suitable for typical factory conditions.
It is compatible with soft nylon, nylon, or polyurethane tubing, ensuring proper sealing with its one-touch connectors.
The vacuum port has a diameter of Ø6 mm, while the supply port has a diameter of Ø8 mm, facilitating quick hose assembly.
The exhaust port uses a one-touch Ø8 mm fitting and can be mounted with a bracket, with options available for silencers.
It is ideal for pick-and-place operations, vacuum hold-down tasks, and small material transfer in industrial settings.
This model conforms to RoHS standards, ensuring compliance with environmental regulations.
The country of origin for this unit is Japan.
The one-touch fittings for both the vacuum and supply ports simplify tubing installation, allowing for quick connections.
Yes, the exhaust port can be mounted with a bracket, providing flexibility in installation.
