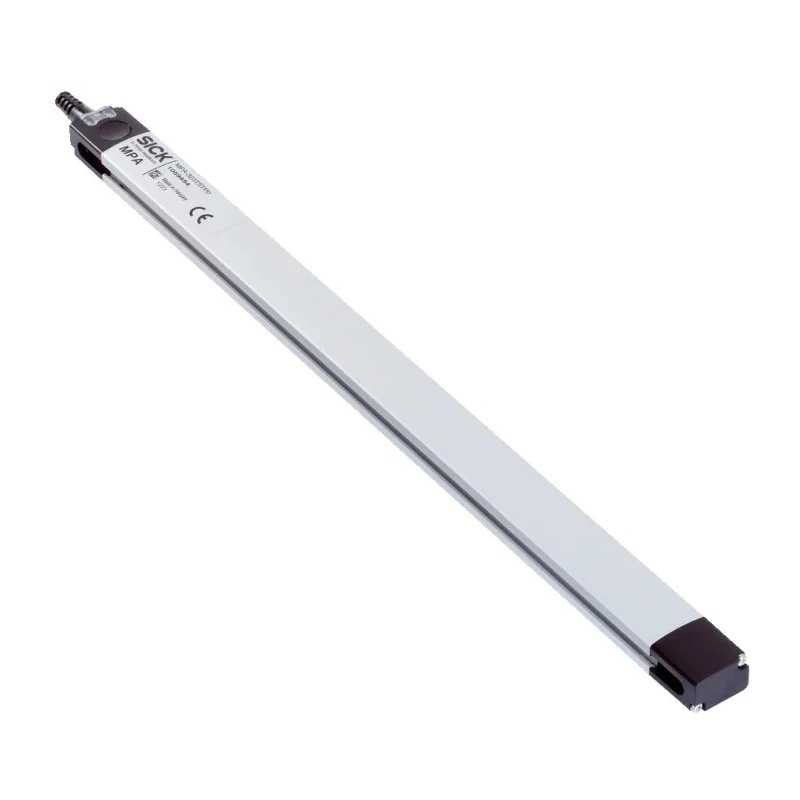

SICK DC 4 Wire Pneumatic Position Detector Universal Construction Aluminium Housing IP65 30V DC Analogue IO Link

The SICK MPA-323THTP0 is a precision Pneumatic Position Detector designed for continuous piston position monitoring on pneumatic cylinders. This DC 4 wire sensor features a universal construction allowing mounting with adapters on various cylinder types such as tie-rod, round body, and profile cylinders, enhancing flexibility in industrial automation applications.

Equipped with analogue outputs for current (4 to 20 mA) or voltage (0 to 10 V DC) along with IO-Link communication, this detector offers advanced diagnostic options and easy sensor setting adjustments during operation via teach pad or IO-Link interface. The LED indicator ensures clear and immediate status feedback, improving monitoring efficiency.

The robust housing made of aluminium, metal, and plastic ensures maximum reliability and protection, rated to IP65 for dust tight and water resistance suitable for harsh industrial environments. Operating temperature ranges from -20°C to 70°C, making it adaptable to diverse application conditions.

Measuring principles based on magnetic cylindrical sensors provide non-contact, direct piston stroke measurement which significantly increases sensor lifespan and reduces maintenance. Compact dimensions, including a 20mm width and 2.6mm diameter sensor, support installation in limited spaces.

The sensor complies with key European safety standards EN 60947-5-2 and EN 60529, guaranteeing reliable performance. Typical industrial uses include position detection of pneumatic cylinders, monitoring end positions for presses, quality control in automated manufacturing processes, and position and wear monitoring of actuator elements.

This product enhances pneumatic actuator functionality by enabling intelligent monitoring and control, contributing to improved precision, safety, and process control in manufacturing, automotive, packaging, and material handling industries.

The sensor features universal construction suitable for multiple cylinder types. It provides analogue output and IO-Link communication for versatile integration. Equipped with LED indicator for status monitoring. Robust aluminium, metal, and plastic housing delivers industrial durability.

Operates at 30V DC voltage with a magnetic cylindrical measurement principle. Rated IP65 protection ensures resistance against dust and water ingress. Supports minimum operating temperature of -20°C and maximum of 70°C. Compact dimensions with 20mm width and 2.6mm diameter sensor element.

Compliant with EN 60947-5-2 and EN 60529 safety standards. Explore the comprehensive range of pneumatic sensors in the EnvMart catalogue for reliable industrial automation components.
