SICK Pneumatic Position Detector C-Slot with IP67 Protection 30V DC Voltage

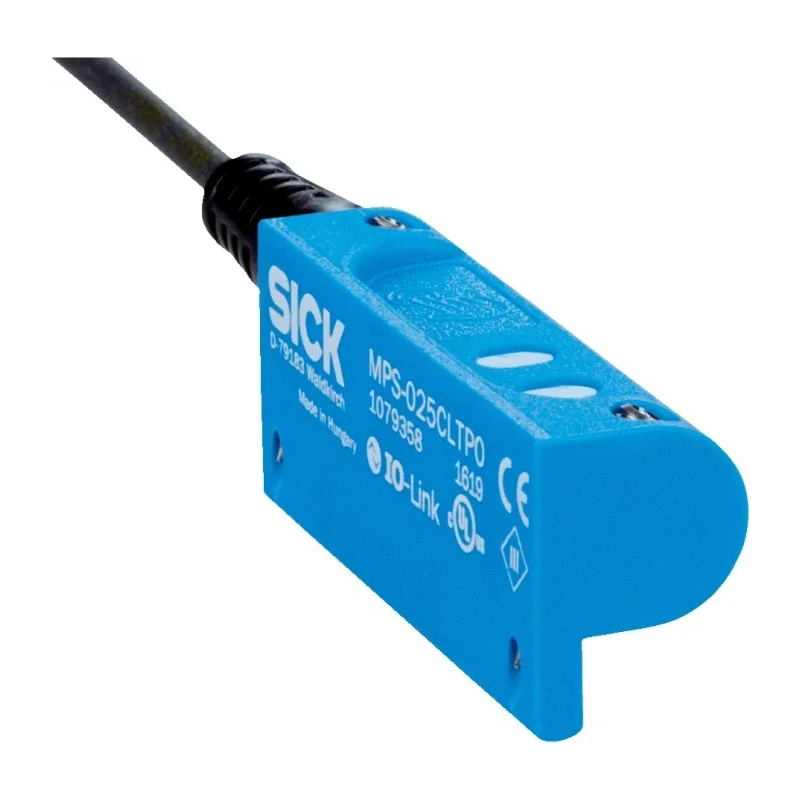

The SICK MPS-025CLTP0 is a Pneumatic Position Detector designed for precise piston position monitoring on pneumatic cylinders with C-slots. Featuring IP67 ingress protection and a 30V DC supply voltage, this sensor ensures durability in harsh industrial environments. The sensor uses a direct, non-contact magnetic cylindrical measurement principle, delivering accurate and reliable data without mechanical wear.

Mounting is rapid and straightforward, requiring no additional mechanical components or position elements. Adjustments to sensor parameters can be made easily during operation using a teach pad or IO-Link, providing high flexibility in machine integration.

This position sensor offers multiple output functions, including analog voltage and current outputs, switching outputs, and IO-Link data transmission. This versatility facilitates various industrial use cases such as quality monitoring, process control, and enhanced pneumatic cylinder functionality.

The MPS-025CLTP0 operates reliably within a temperature range of -20°C to +70°C and is housed in a robust plastic case, ensuring resistance to dust and water. With compliance to EN 60947-5-7 and EN 60529 standards, it meets industrial safety and durability requirements.

Typical applications include positioning of grippers during gearshift assembly, monitoring part positions in ultrasonic welding of plastics, height measurements, flexible positioning of cylinders, film tension measurement, and detection of gripper position and material wear in manufacturing.

Suitable for direct mounting in C-slots on pneumatic cylinders and grippers. Provides analog outputs (0 V to 10 V voltage, 4 mA to 20 mA current) and switching output with IO-Link communication. Robust plastic housing with IP67 rating ensures resistance against dust and water ingress.

Non-contact magnetic cylindrical sensor principle offers reliable piston position detection. Easy setting adjustments via teach pad or IO-Link during installation and operation. Operating temperature range from -20°C to +70°C suits industrial environments.

Compact 2.6 mm diameter sensor enables flexible installation in restricted spaces. Compliant with EN 60947-5-7 and EN 60529 standards. Applications include gripper positioning, ultrasonic welding monitoring, film tension measurement, and roof tile manufacturing quality control.
