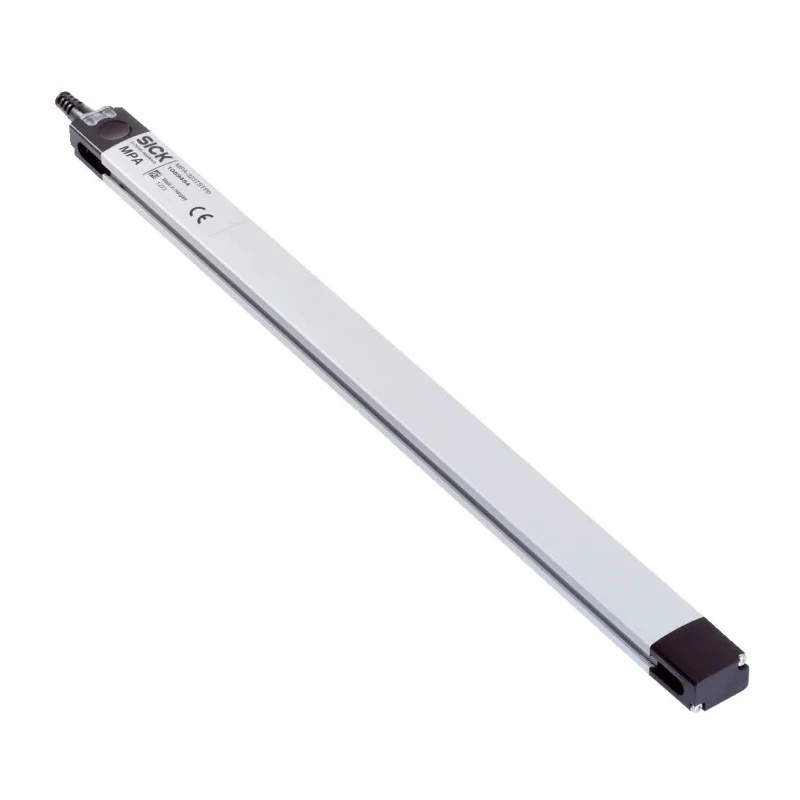

SICK DC 4 Wire Pneumatic Position Detector, IP65, 30V dc, Aluminium Housing, MPA-107THTP0
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 30V dc |
| Diameter | 8.2mm |
| Brand | SICK |
| Model | MPA-107THTP0 |
| IP Rating | IP65 |
| Width | 20mm |
| Housing Material | Aluminium, Plastic, Metal |
| Construction | Universal |
| Series | MPA-107THTP0 |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Magnetic Cylindrical Sensor |
| Minimum Operating Temperature | -20°C |
| Analogue Output | 0 to 10 V dc, 4 to 20 mA |
| For Use With | Universal |
| Output Function | Analogue, IO Link |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Electrical Connection Type | DC 4 Wire |
Key Features
- The detector supports analogue output 0 to 10 V dc and 4 to 20 mA with IO-Link communication.
- Robust aluminium, plastic, and metal housing ensures durability in industrial environments.
- Designed for use with universal pneumatic cylinders across a range of industrial applications.
- Operating temperature range from -20°C to 70°C for versatile deployment.
- Easy sensor setting adjustment via teach pad or IO-Link during installation and operation.
- Rugged magnetic cylindrical sensor principle enables precise piston position monitoring.
- LED indicator provides clear operational and status feedback.
- Compact 8.2mm diameter, 20mm width sensor design for flexible mounting options.
Product Description
SICK MPA-107THTP0 is a DC 4 Wire Pneumatic Position Detector designed for precise, non-contact monitoring of piston positions in pneumatic cylinders. Operating at 30V dc with an aluminium, plastic, and metal housing, the sensor is robust and suitable for demanding industrial and fluid power environments.
This IP65 rated position detector features analogue outputs (0 to 10 V dc and 4 to 20 mA) and IO-Link communication, enabling seamless integration into automated control systems. It supports easy adjustment of sensor settings using a teach pad or IO-Link interface, allowing flexibility during installation and throughout operational use.
The magnetic cylindrical sensor design provides reliable monitoring without the need for physical coupling to the piston rod, simplifying installation on a variety of cylinder types including tie-rod, round body, and profile cylinders. An integrated LED indicator ensures clear visual feedback on sensor status.
Engineered to operate within a temperature range from -20°C to 70°C, the detector meets strict industry standards EN 60947-5-2 and EN 60529, ensuring reliable performance in industrial, manufacturing, and automation applications such as position monitoring of press cylinders, product pushers, grinding heads, and quality control systems.
The sensor continuously supplies precise piston position data for advanced quality and process control in pneumatic cylinder systems. It allows the definition of multiple switching points in compact spaces to enhance machine flexibility and intelligence.
Its rugged construction promotes maximum reliability and longevity in harsh environments.
This Pneumatic Position Detector significantly upgrades cylinder functionality and integration capabilities in industrial automation, making it an essential component for systems requiring accurate position feedback and process monitoring.
Explore additional pneumatic sensors and cylinder accessories in the same category to complement this high-performance position detector.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating voltage of this model is 30V dc.
It provides analogue outputs of 0 to 10 V dc and 4 to 20 mA, along with IO-Link communication.
This unit has an IP65 rating, indicating it is protected against dust and low-pressure water jets.
It operates within a temperature range of -20°C to 70°C.
The sensor has a diameter of 8.2mm and a width of 20mm, allowing for flexible mounting options.
The housing is made from aluminium, plastic, and metal, ensuring durability in industrial environments.
Sensor settings can be adjusted easily via a teach pad or through the IO-Link interface during installation and operation.
It complies with the standards EN 60947-5-2 and EN 60529.
It uses a magnetic cylindrical sensor principle for precise piston position monitoring.
It is designed for use with universal pneumatic cylinders, including tie-rod, round body, and profile cylinders.
It allows for the definition of multiple switching points, enhancing machine flexibility and intelligence in automation applications.
The country of origin for this product is Hungary.
