SMC Vacuum Generator for use with Nylon, FEP, PFA, Soft Nylon, Polyurethane ZH20DSA-03-04-04

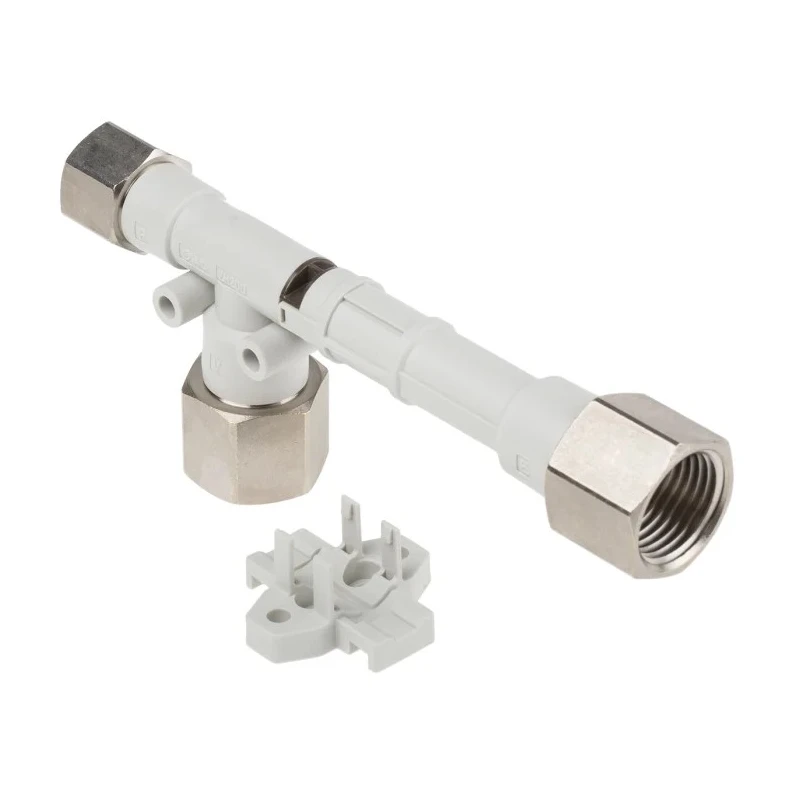

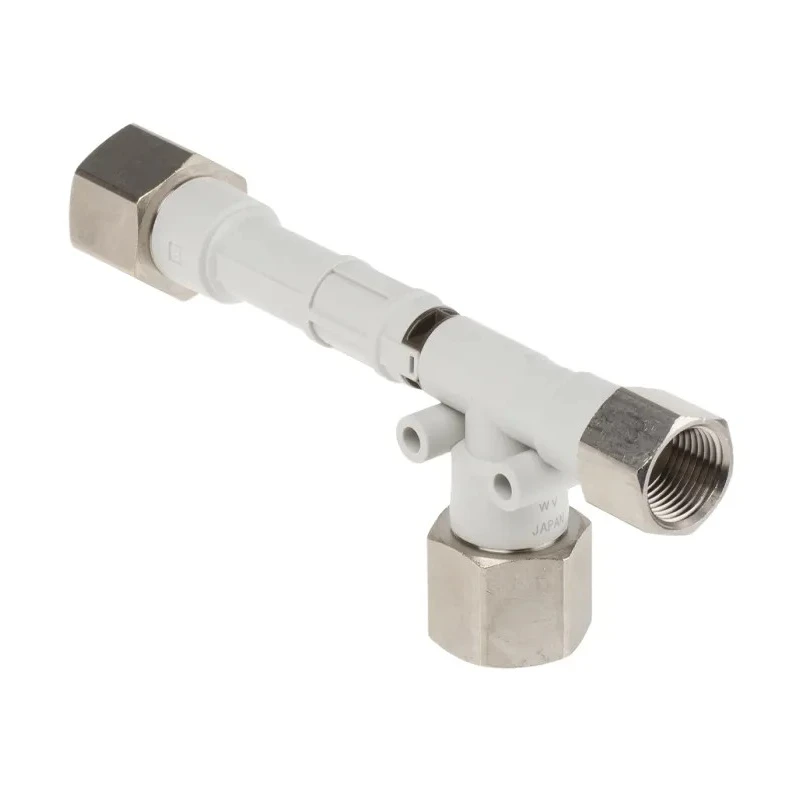

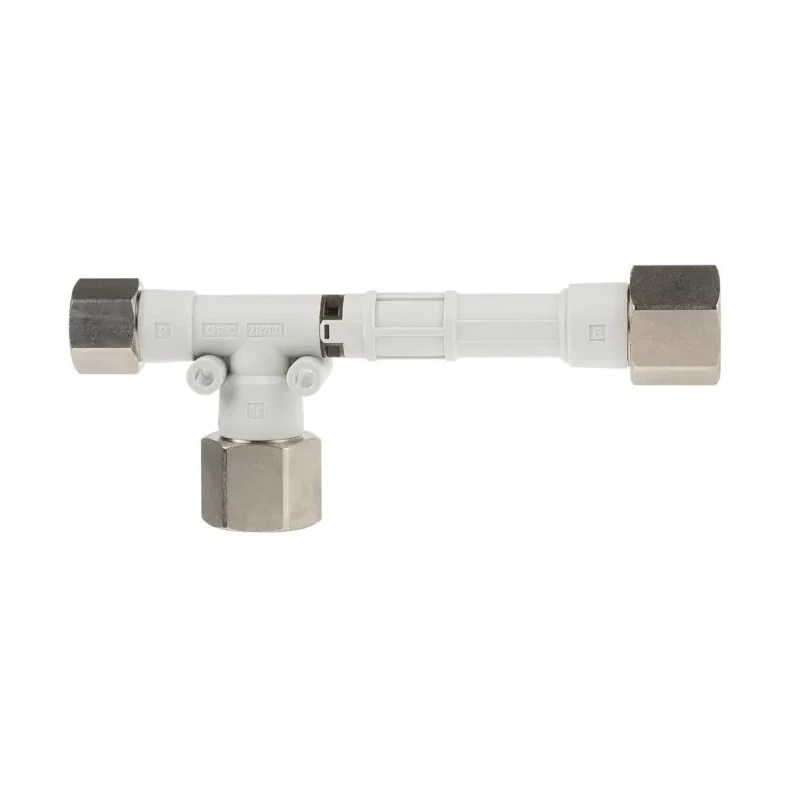

The SMC ZH20DSA-03-04-04 vacuum generator provides a compact and reliable pneumatic suction solution for various automation and pick-and-place applications. Designed for use with Nylon, FEP, PFA, Soft Nylon, and Polyurethane tubing, this vacuum generator operates by utilizing compressed air to produce a controlled negative pressure essential for handling small components and delicate materials.

The device features a 2.0 mm nozzle diameter that creates concentrated suction suitable for small pickups. With a maximum vacuum capability of -90 kPa, it ensures secure retention of parts during handling. It supports a flow rate of 90 liters per minute (ANR), enabling moderate cycle speeds to meet production demands.

Equipped with pneumatic inlet R3/8 and exhaust plus vacuum ports R1/2 with screw-in fittings, the unit facilitates straightforward piping and secure connections. Its operational temperature range from -5 °C to 50 °C makes it suitable for typical manufacturing conditions. The box-style configuration omits a silencer but includes a mounting bracket, allowing easy integration into tight spaces or robotic tooling setups.

Applications include vacuum handling in assembly cells, pick-and-place of electronic components, clean manufacturing processes requiring FEP or PFA tubing, and lifting of sheets or foils where compact suction is necessary. The product excels in environments requiring precise and adaptable vacuum solutions, especially in light industrial automation contexts.

The 2.0 mm nozzle diameter delivers focused suction for small items. Maximum vacuum of -90 kPa enables secure part retention. Flow rate is 90 l/min (ANR) to support moderate speeds. Standard R3/8 screw-in pneumatic inlet for air supply.

R1/2 screw-in exhaust and vacuum ports for easy piping. Operational temperature range: -5 °C to 50 °C. Includes mounting bracket, excludes silencer in box style. Compatible with Nylon, FEP, PFA, Soft Nylon, and Polyurethane tubing.

Ideal for pick-and-place and robotic end-of-arm tooling in automation.

This vacuum generator is manufactured in Japan and meets RoHS standards, ensuring compliance with environmental directives in pneumatic equipment manufacturing. Its robust design and versatile tubing compatibility make it a preferred choice for professionals in industrial automation, electronics assembly, and clean manufacturing sectors. Explore the Vacuum Generator category on EnvMart for additional high-quality pneumatic components tailored to your operational needs.
