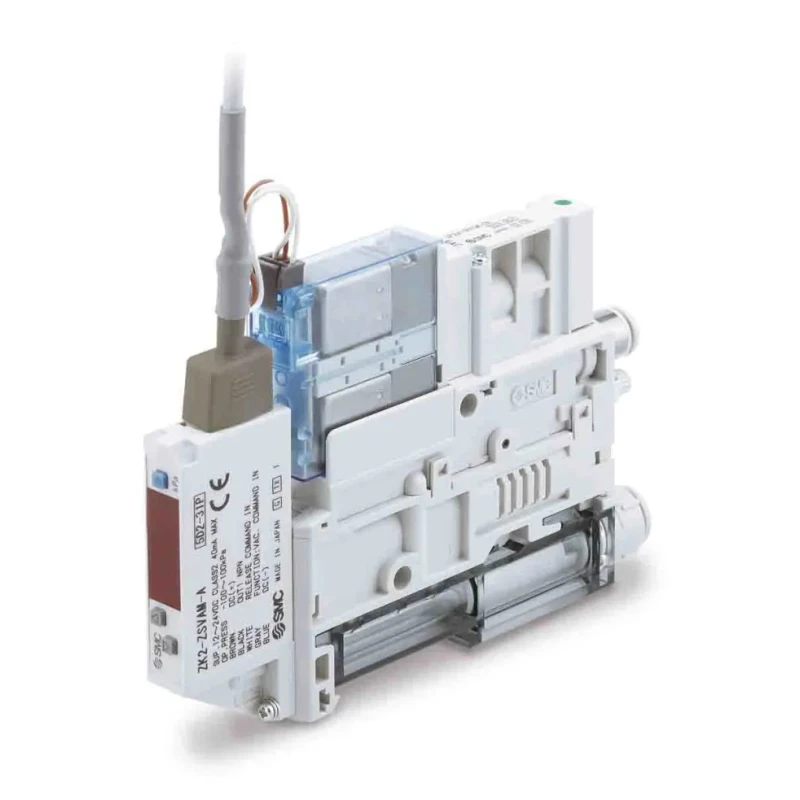

SMC Vacuum Generator for Use With ZK2 Series Vacuum Ejectors, Compact Modular Design, Digital Pressure ZK2A10K5CLA-08

SMC ZK2A10K5CLA-08 Vacuum Generator for Use With ZK2 Series Vacuum Ejectors is a compact, modular ejector designed to create controlled vacuum in automation systems. It integrates a two-stage high-efficiency ejector with pilot-operated supply and release valves, along with a digital pressure switch for accurate vacuum monitoring. The unit features an 8 mm one-touch vacuum port enabling easy in-line installation where a compact vacuum suction solution is required.

This generator achieves a maximum vacuum pressure of -91 kPa, providing strong gripping force suitable for various applications such as pick-and-place in electronic assembly lines, end-of-arm tooling on robotic manipulators, handling of delicate printed circuit boards and small components, and vacuum hold-down in test fixtures. It is also compatible for integration into pneumatic control panels.

Air consumption is limited to 40 liters per minute, and the supply pressure range from 0.3 to 0.6 MPa ensures stable and efficient operation. Noise emission is controlled at 66 dB to minimize acoustic impact on production environments. The digital pressure switch has an accuracy of ±2% full scale, allowing precise vacuum settings, and provides two PNP outputs to easily interface with PLC systems.

The device operates on a 12 to 24V DC power supply with reverse-connection protection, drawing a current of 40 mA or less for the pressure switch electronics. The response time of the switch is 2.5 milliseconds or less, with adjustable anti-chatter settings ranging from 20 to 2,000 milliseconds to ensure signal stability. Protection against particulate ingress is provided by a suction filter with a filtration area of 510 mm² and a nominal element rating of 30 micrometers.

Supply and release valves are normally closed, pilot-operated poppet-style two-port valves rated for 24V DC actuation, designed to operate within the specified pressure range. Environmental durability includes an operating temperature range of -5 to 50 degrees Celsius, storage temperature from -10 to 60 degrees Celsius, vibration tolerance up to 20 m/s², and impact resistance to 100 m/s².

Maximum vacuum pressure of -91 kPa enabling robust grip performance. Air consumption optimized at 40 l/min for efficient operation. Supply pressure range stable between 0.3 to 0.6 MPa. Low noise level of 66 dB for reduced acoustic interference.

High-precision digital pressure switch with ±2% full scale accuracy. Dual PNP switch outputs support seamless PLC integration. Low current draw at 40 mA with reverse polarity protection on 12-24V DC supply. Fast switch response time of 2.5 ms with anti-chatter adjustment.

Suction filter prevents particulate damage with 30 μm rating. Durable valves rated for pilot operation and pressure compliance. Wide operating temperature and vibration/impact resistance for robust industrial use.

This vacuum generator is ideal for industrial automation including electronic assembly, robotic handling, PCB manipulation, test fixture vacuum hold, and pneumatic control panel applications. The compact form factor and integrated pressure monitoring make it suited for demanding manufacturing and laboratory environments. Explore EnvMart’s comprehensive selection of Vacuum Generators and pneumatic components to complement your system needs.
