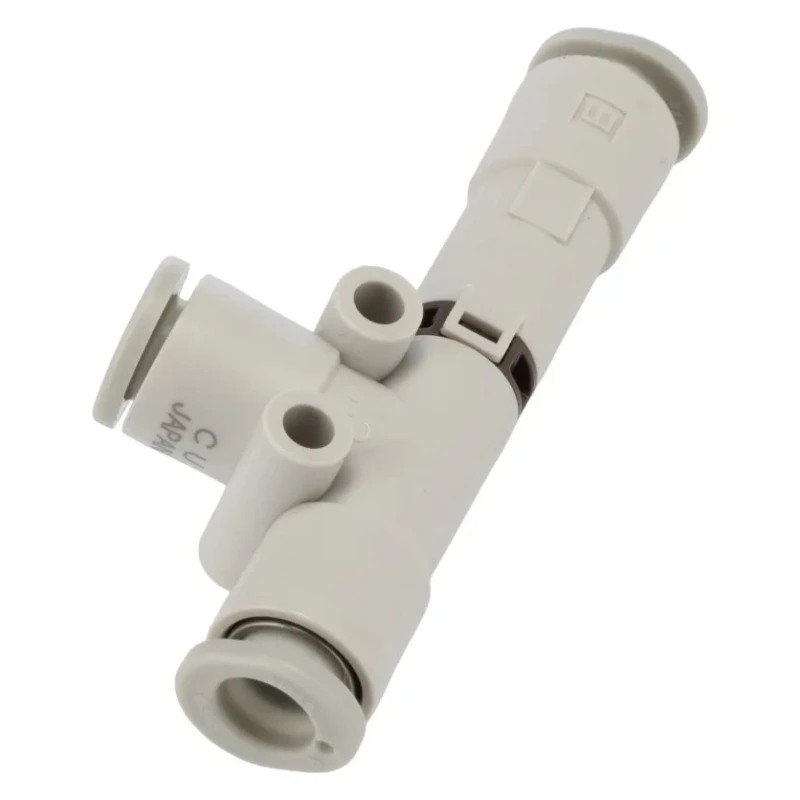

SMC Vacuum Generator for Use with Polyurethane, PFA, FEP, Nylon, Soft Nylon Tubing ZH07DSA-06-06-06

SMC ZH07DSA-06-06-06 Vacuum Generator is specially designed for industrial pneumatic vacuum generation with compatibility for polyurethane, PFA, FEP, nylon, and soft nylon tubing. This vacuum generator provides a maximum vacuum pressure of -90 kPa, enabling firm and reliable part retention essential for pick-and-place and component handling tasks in automation settings.

It features a 0.7 mm nozzle that delivers focused suction, coupled with a flow capacity of 12 liters per minute (ANR) that ensures quick and responsive cycle times for efficient operation. The unit uses clean compressed air supplied via one-touch Ø6 pneumatic connections for very fast installation and setup on the shop floor.

The vacuum generator is rated to operate within a temperature range of -5°C to 50°C, making it suitable for typical industrial environments. The product supports common pneumatic tubing materials such as polyurethane, standard and soft nylon, PFA, and FEP films, allowing flexible integration into various applications.

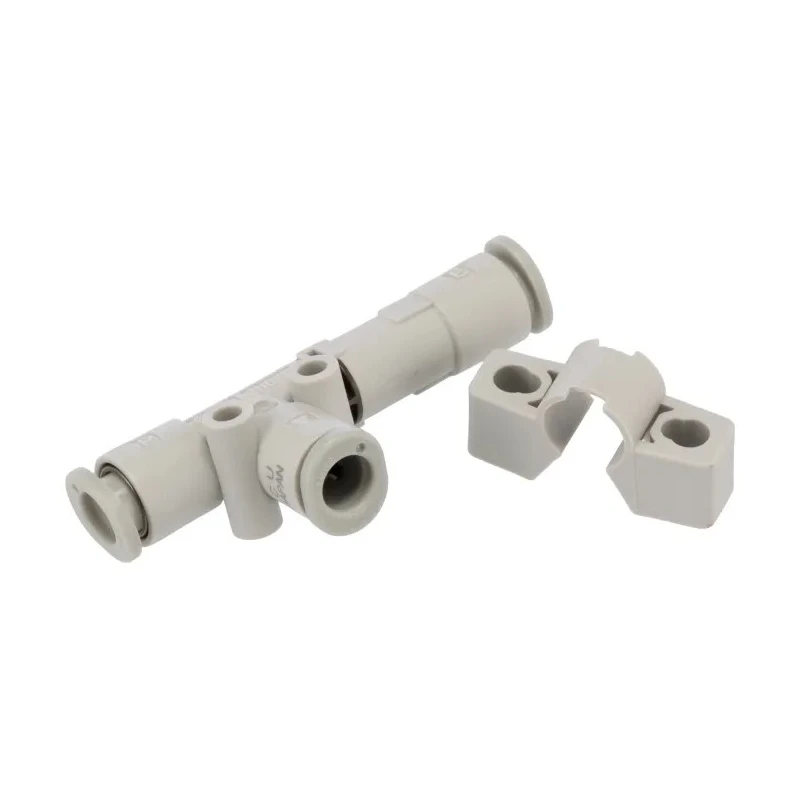

Installation is facilitated by an included bracket option for body-ported fixing into frames, enhancing ease of mounting within machine systems. Additionally, the vacuum generator can be supplied without a silencer for box-style configurations, with silencers being optional if noise control is needed.

This vacuum generator finds application in electrical and mechanical production environments, ideal for handling small electronic components during assembly, and suitable in pneumatic pickers using polyurethane tubing or thin PFA and FEP films for gripping tasks. It is also adaptable to mobile jigs using soft nylon suction lines.

Compact pneumatic vacuum generation optimized for industrial automation and handling tasks. Maximum vacuum capacity of -90 kPa for firm part retention during operations. Features 0.7 mm nozzle for focused suction performance.

Flow capacity of 12 liters per minute (ANR) enables responsive cycle times. Quick one-touch Ø6 pneumatic connections allow fast installation. Operates reliably within a temperature range of -5°C to 50°C suitable for shop-floor conditions.

Compatible with common tubing materials including polyurethane, PFA, FEP, standard and soft nylon. Includes bracket options for convenient body-ported installation into machine frames. Optional silencers available for noise control in box-style configurations, with unsilenced option.

Ideal for pick-and-place of small electronic components and vacuum handling in electrical assembly lines. Explore more Vacuum Generators and pneumatic components in the Industrial Tools & Equipment category at EnvMart for your automation and assembly needs.
