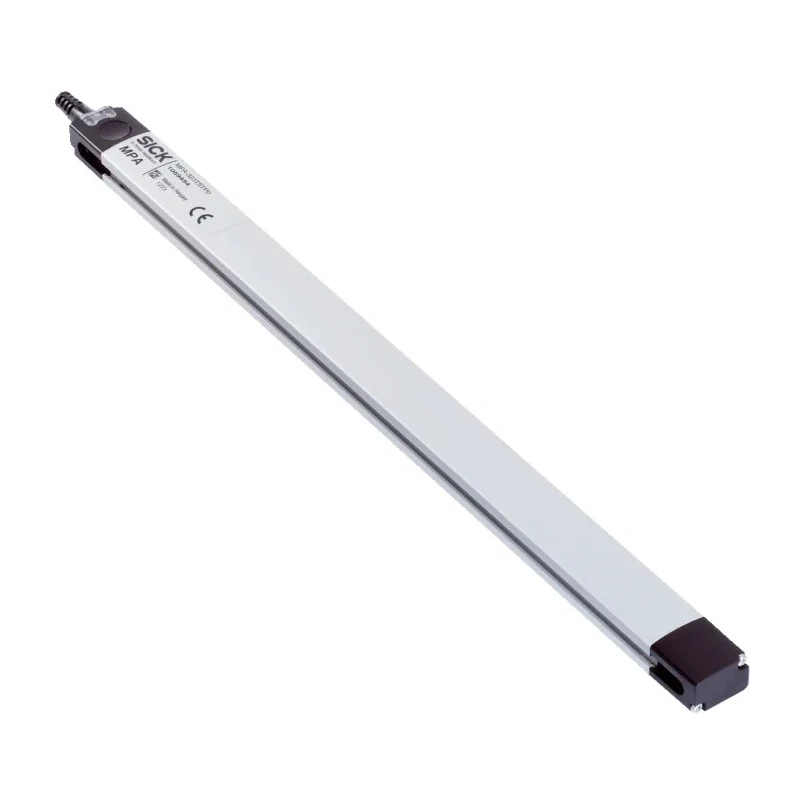

SICK DC 4 Wire Pneumatic Position Detector IP65 30V dc Aluminium Housing Magnetic Sensor MPA-1007THTP0
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 30V dc |
| Diameter | 2.6mm |
| Brand | SICK |
| Model | MPA-1007THTP0 |
| IP Rating | IP65 |
| Width | 20mm |
| Housing Material | Aluminium, Plastic, Metal |
| Construction | Universal |
| Series | MPA-1007THTP0 |
| Maximum Operating Temperature | 70°C |
| Measurement Principle | Magnetic Cylindrical Sensor |
| Minimum Operating Temperature | -20°C |
| Analogue Output | 0/10 V |
| For Use With | Universal |
| Output Function | IO Link, Analogue |
| Standards/Approvals | According to EN 60947-5-2 |
| Electrical Connection Type | DC 4 Wire |
Key Features
- Provides continuous piston position detection via magnetic cylindrical sensor technology.
- Enables flexible outputs including IO-Link and analogue (0/10 V) signal options.
- Features robust aluminium, plastic, and metal housing ensuring high durability and IP65 protection.
- Easy installation with adapters on various cylinder types, no mechanical coupling required.
- Supports operating temperatures from -20°C to 70°C for diverse industrial environments.
- Incorporates LED indicator for straightforward status monitoring.
- Offers advanced diagnostic capability and parameter adjustment via teach pad or IO-Link.
- Designed according to EN 60947-5-2 ensuring compliance with standards.
Product Description
SICK MPA-1007THTP0 DC 4 Wire Pneumatic Position Detector provides precise, contactless piston position sensing for pneumatic actuators. It operates at 30V DC and features a rugged aluminium, plastic, and metal construction with IP65 ingress protection, making it suitable for harsh industrial conditions.
This sensor utilizes magnetic cylindrical sensor technology, delivering analogue output (0/10 V) and IO-Link communication, enabling flexible integration into machine automation systems. The device enables easy installation on various cylinder types, including tie-rod, round body, and profile cylinders, without requiring additional mechanical components or position elements.
Operating reliably within -20°C to 70°C, the detector includes an LED indicator for visible status signaling. Its 20mm width and 2.6mm sensing diameter offer compact form factor for tight spaces. Compliance with EN 60947-5-2 ensures adherence to industry standards, and its universal design caters to broad pneumatic cylinder applications.
The MPA-1007THTP0 enhances machine versatility by providing real-time position data for quality monitoring, process control, and wear diagnostics. It supports advanced parameter adjustment and diagnostics through teach pads or IO-Link, improving operational flexibility and maintenance efficiency.
Continuous non-contact piston position detection via magnetic sensor. Analogue and IO-Link outputs for flexible machine integration. IP65 rated aluminium, plastic, and metal housing for durability. LED indicator for operational status monitoring.
Applicable over -20°C to 70°C operating temperature range. Easy installation without additional mechanical components. Compliance with EN 60947-5-2 standards. Universal mounting suitable for various pneumatic cylinder types.
Manufactured in Hungary ensuring high-quality standards.
This Pneumatic Position Detector is ideal for industrial automation in manufacturing, HVAC, water treatment, and laboratory environments requiring precise pneumatic actuator feedback. It improves machine intelligence and control flexibility by upgrading pneumatic cylinders with continuous position sensing capabilities.
Choose the SICK MPA-1007THTP0 for reliable, advanced pneumatic position monitoring at your facility. Browse more pneumatic sensor solutions from EnvMart to find complementary components for effective pneumatic and hydraulic automation setups.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 30V DC.
It has an IP65 rating, providing protection against dust and water ingress.
The sensor can operate in temperatures ranging from -20°C to 70°C.
It supports both analogue output (0/10 V) and IO-Link communication for flexible integration.
The sensing diameter of this unit is 2.6mm.
The housing is made from aluminium, plastic, and metal, ensuring durability.
The width of this model is 20mm.
It utilizes magnetic cylindrical sensor technology for contactless position sensing.
Yes, it is designed according to EN 60947-5-2 standards.
It is designed for universal mounting and can be used with various cylinder types including tie-rod and round body cylinders.
Yes, it incorporates an LED indicator for straightforward status monitoring.
This product is manufactured in Hungary.
