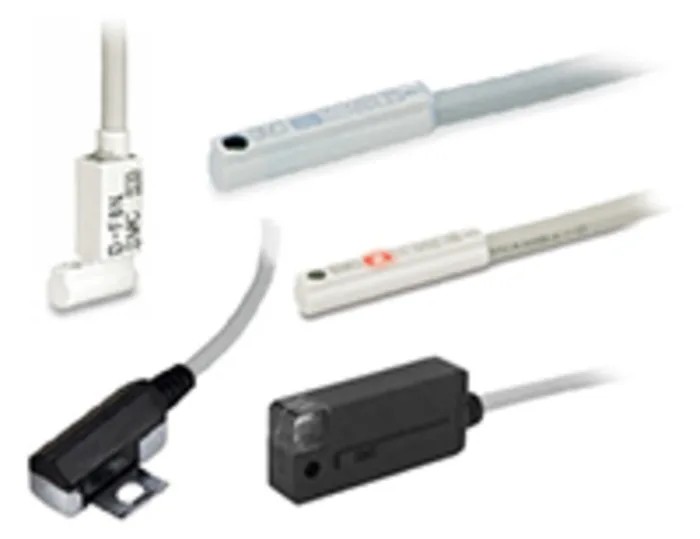

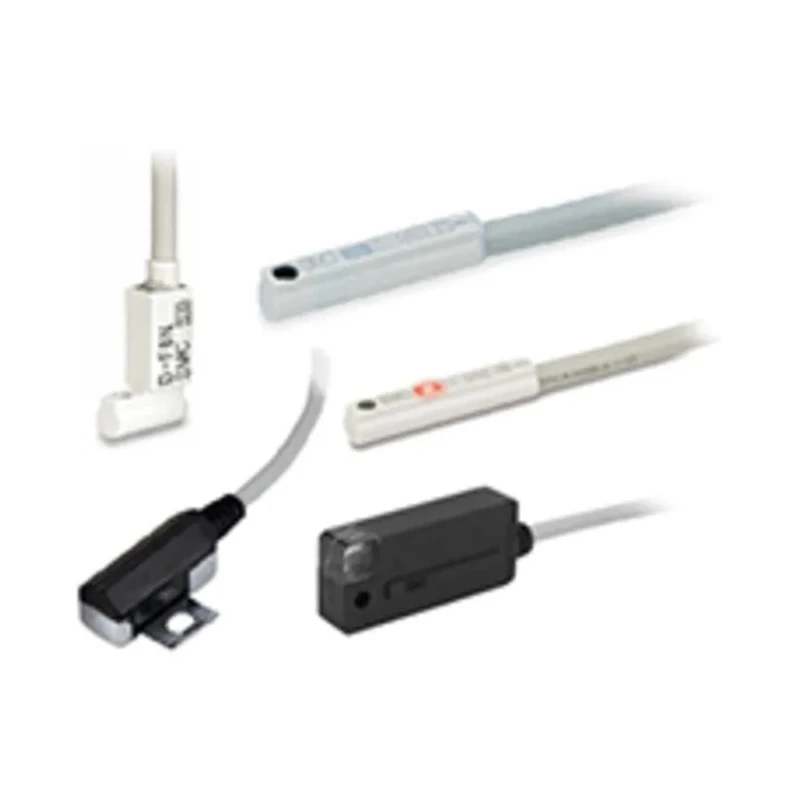

SMC 3-Wire Open End Cable Direct PNP Solid State Pneumatic Cylinder & Actuator Switch 24V dc D-Y7PSDPC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Height | 18mm |
| Model | D-Y7PSDPC |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | PNP |
| Mount Type | Direct |
| Series | D-Y7 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| For Use With | MGP Series |
| Standards/Approvals | IEC 529 |
| Electrical Connection Type | 3-Wire Open End Cable |
| Applicable Load | IC Circuit/Relay/PLC |
| Electrical entry | grommet |
Key Features
- The switch features a direct mount type suitable for pneumatic cylinders.
- It has a 3-wire open end cable electrical connection type for efficient wiring.
- Operation is PNP type with solid state technology ensuring high reliability.
- Compatible with MGP Series pneumatic cylinders for versatile use.
- The sensor enclosure is IP67 rated, and the amplifier enclosure is rated IP40.
- Supports switching current up to 40mA suitable for IC Circuit, Relay, and PLC loads.
- Designed to operate within a temperature range of -10°C to 60°C.
- Complies with IEC 529 standards ensuring industrial quality and safety.
Product Description
SMC D-Y7PSDPC Pneumatic Cylinder & Actuator Switch is a 3-wire open end cable direct PNP solid state switch designed to detect object sizes with a sensitivity difference of more than 0.5mm. The sensor unit is enclosed with an IP67 rated housing, while the amplifier is protected with an IP40 enclosure, making it suitable for harsh industrial environments.
The D-Y7 series is tailored for pneumatic cylinder applications and offers direct mounting, facilitated by optional rail or groove mounting styles for versatile installation options. This switch operates with a 24V dc voltage and supports a switching current of 40mA, compatible with IC Circuit, Relay, and PLC load types.
Built with a grommet electrical entry, the switch includes operational indicators with red light for sensitive position detection and green light indicating optimum detection. It is compatible with MGP Series pneumatic cylinders and is designed to perform reliably between temperatures of -10°C and 60°C.
Constructed adhering to IEC 529 standards, the product ensures robust performance in both typical industrial automation and pneumatic sensor use cases. The compact dimensions meet industry norms with a height of 18mm, width of 15.5mm, and depth of 46mm.
The switch has a direct mount type for secure attachment to pneumatic equipment. The 3-wire open end cable connection simplifies integration with existing setups. PNP operation type enables straightforward interfacing with control systems.
Solid state design promotes durability and longer operational lifespan. IP67 rated sensor enclosure protects against dust and water ingress in tough environments. Operational temperature range of -10°C to 60°C ensures reliable functionality in diverse settings.
Conforms to IEC 529 standards for safety and quality assurance. Includes a grommet type electrical entry for added protection and cable strain relief.
This switch is ideal for industrial automation, manufacturing lines, pneumatic control systems, and laboratory applications where precise detection and high reliability are mandatory.
Explore additional pneumatic sensors and switches within EnvMart's comprehensive catalog for optimized automation solutions.
Explore more products in our Pneumatic Cylinder Switch category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage of 24V dc.
It features a 3-wire open end cable electrical connection type for efficient wiring.
The switch supports a maximum switching current of 40mA, suitable for IC Circuit, Relay, and PLC loads.
The dimensions are 18mm in height, 15.5mm in width, and 46mm in depth.
The sensor enclosure is rated IP67, providing protection against dust and water ingress.
It is designed to operate within a temperature range of -10°C to 60°C.
This switch is compatible with MGP Series pneumatic cylinders.
It has a direct mount type for secure attachment to pneumatic equipment.
It complies with IEC 529 standards, ensuring industrial quality and safety.
The switch operates with a PNP type, which enables straightforward interfacing with control systems.
It is designed for use with IC Circuit, Relay, and PLC load types.
The switch includes a grommet type electrical entry for added protection and cable strain relief.
