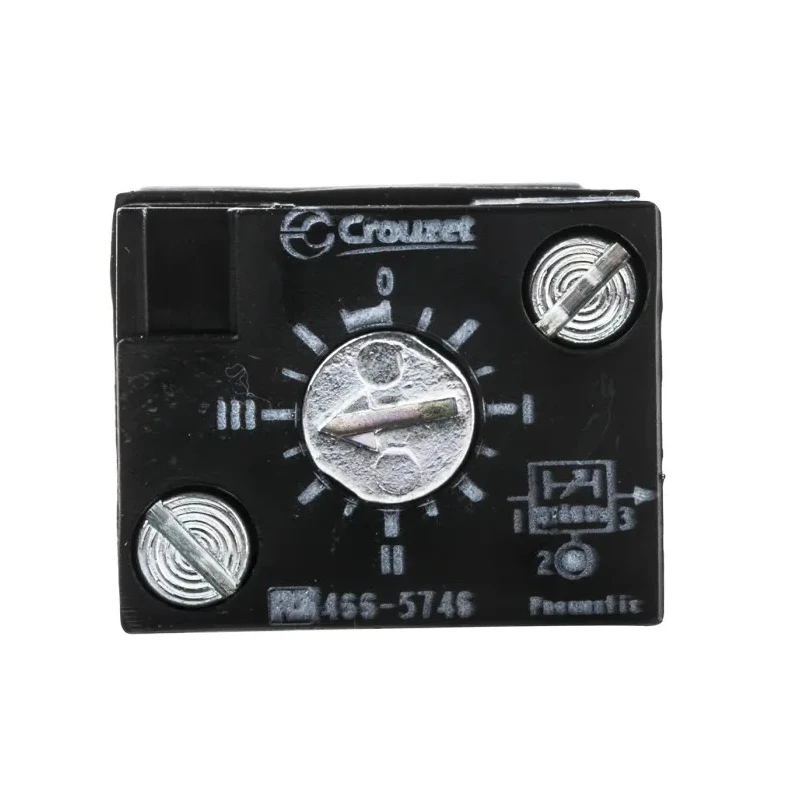

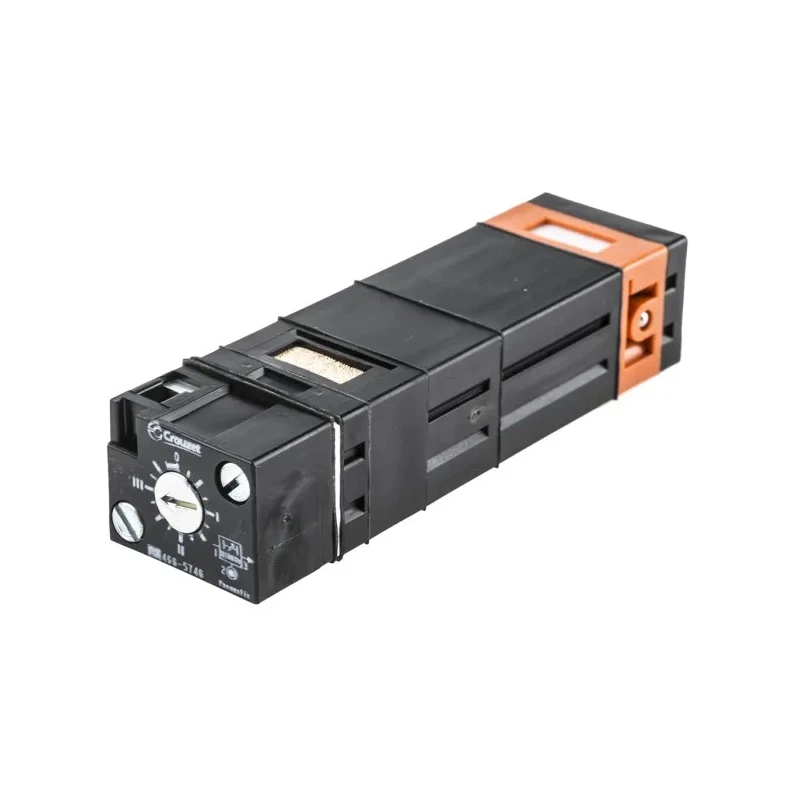

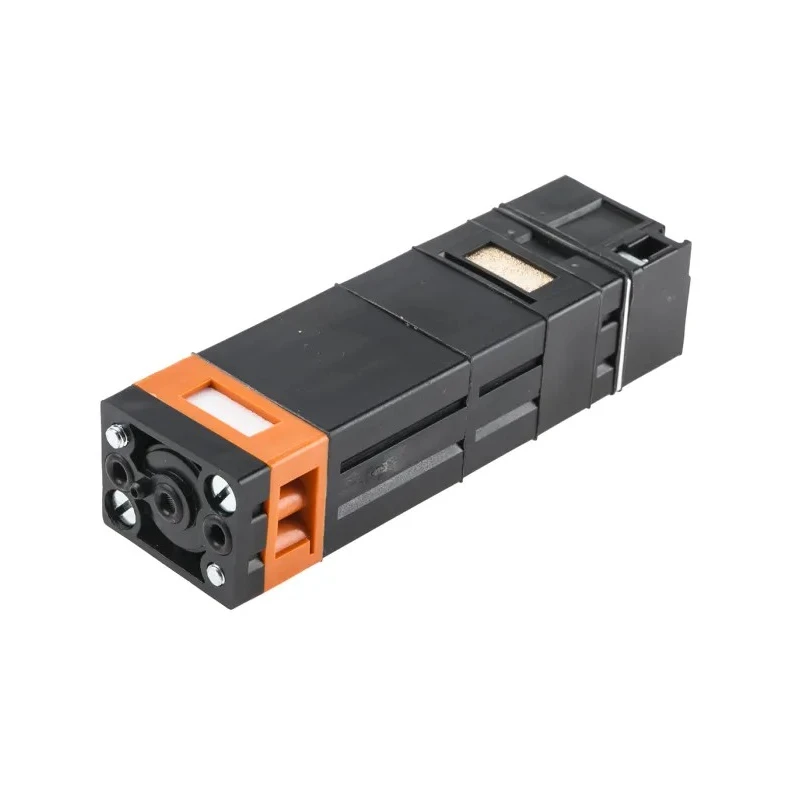

Crouzet Pneumatic Timer Panel Mount 2bar-8 bar Operating Pressure 81 Series 81503725

Crouzet 81503725 pneumatic timer is a precision pneumatic control device designed for industrial fluid power applications requiring timed actuation. This panel mount pneumatic timer operates within pressures from 2 bar minimum up to 8 bar maximum, suitable for diverse pneumatic control systems.

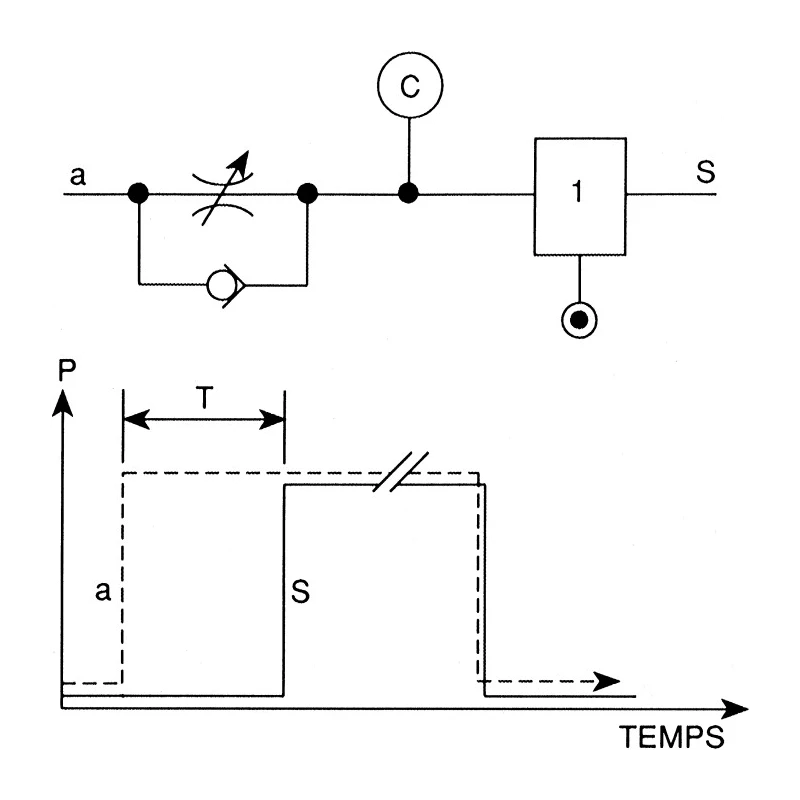

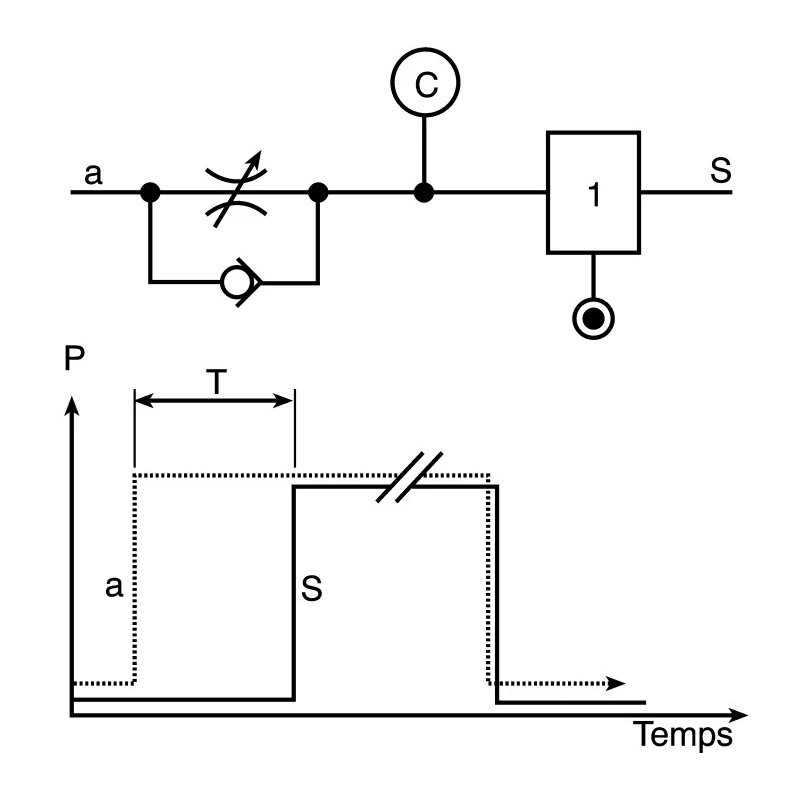

The timer is designed with an adjustable time delay module. Upon application of a pilot signal, the internal reservoir begins to fill through a low restrictor. After the preset delay time expires, the relay actuates and provides an output signal. The timer remains latched and will not reset until the pilot signal is removed, providing dependable timing in pneumatic automation sequences.

With an operating temperature range from -5°C to 50°C, this timer is well-suited for typical industrial environments. It does not carry hazardous area certification, so it is intended for standard pneumatic applications where safety approvals are not mandatory.

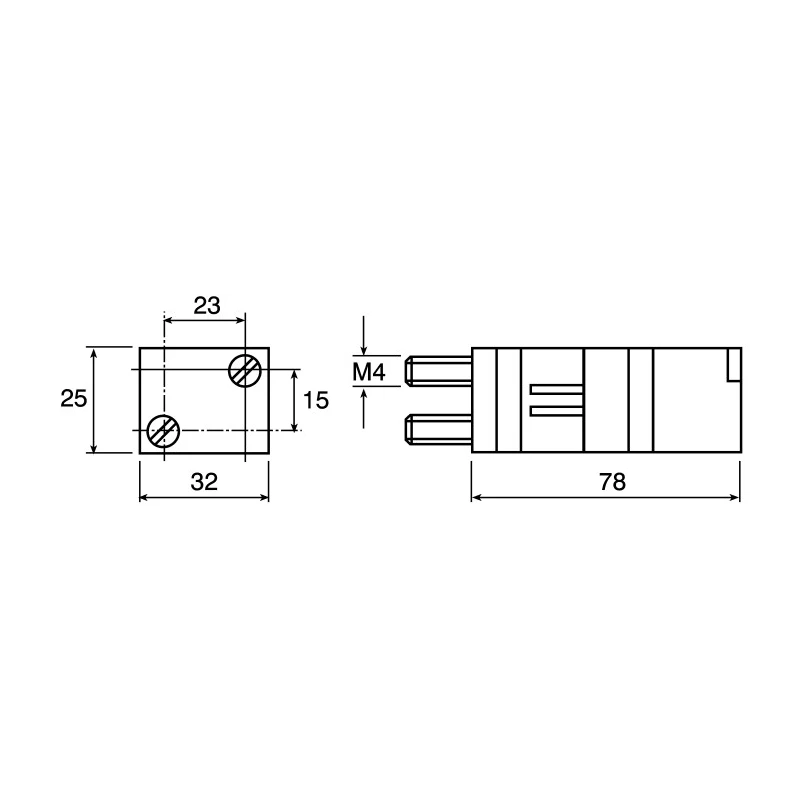

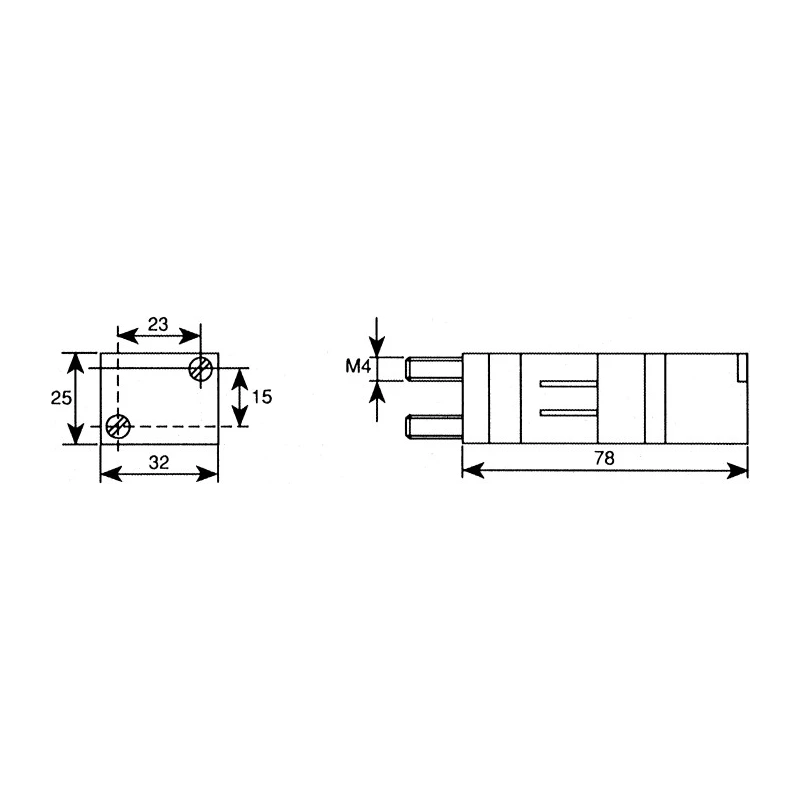

The product is manufactured in France by Crouzet, a trusted brand in pneumatic and electromechanical components. The timer includes an adjustable delay feature for customization of timing intervals. Panel mounting allows easy installation in control panels or pneumatic cabinets.

Robust build quality ensures reliable operation under specified pressure and temperature limits. Functions through pilot signal control with reset only after signal removal. Ideal for pneumatic automation, fluid power machinery, industrial timing and logic control applications.

Complies with industry standards except hazardous area certification.

This pneumatic timer is a vital component in industrial automation and fluid control systems, enabling timed pneumatic outputs in commercial, manufacturing, and laboratory sectors.
