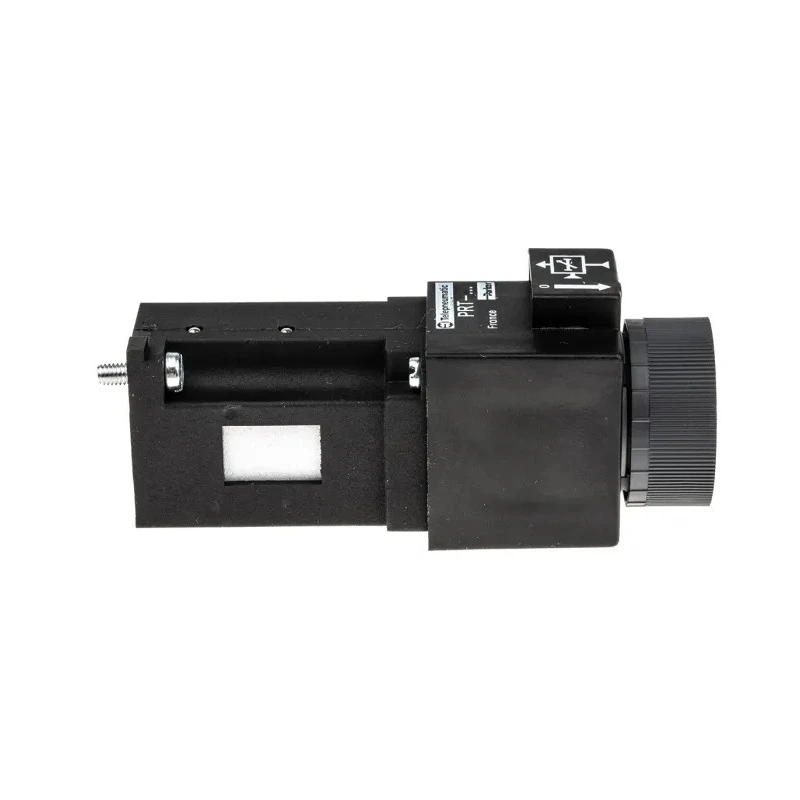

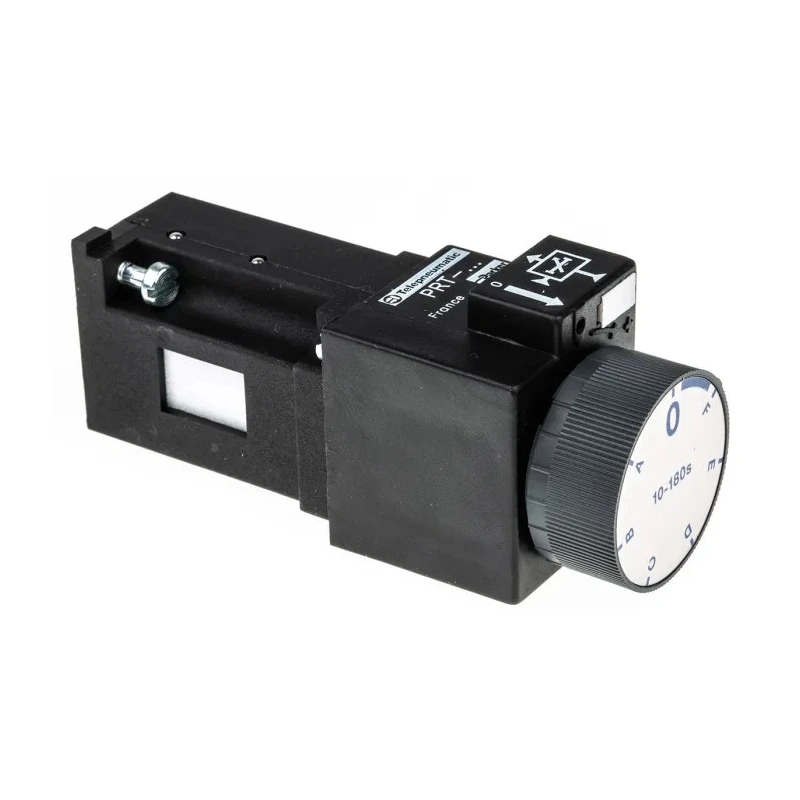

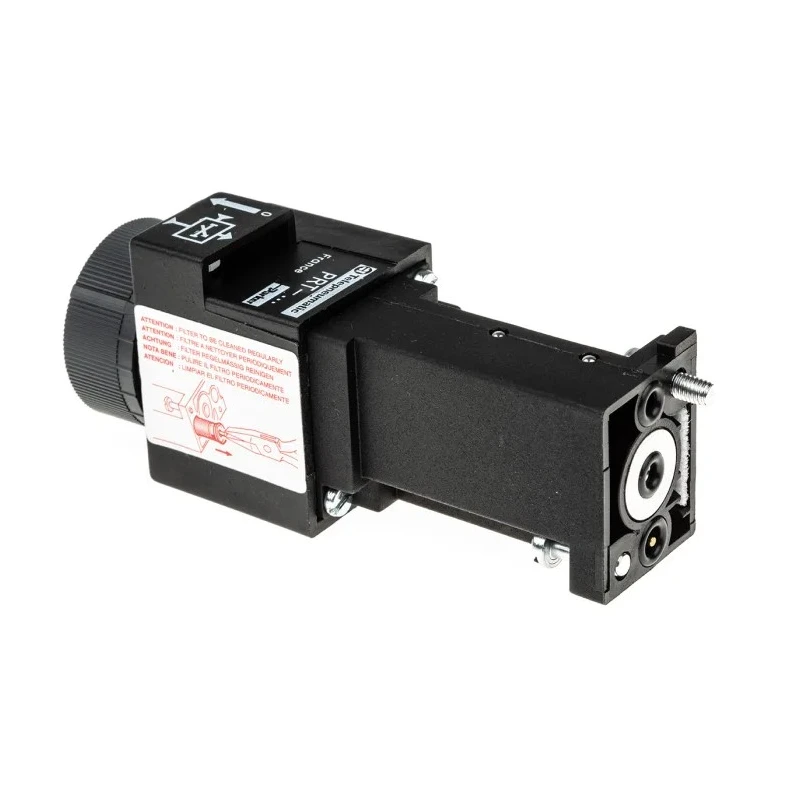

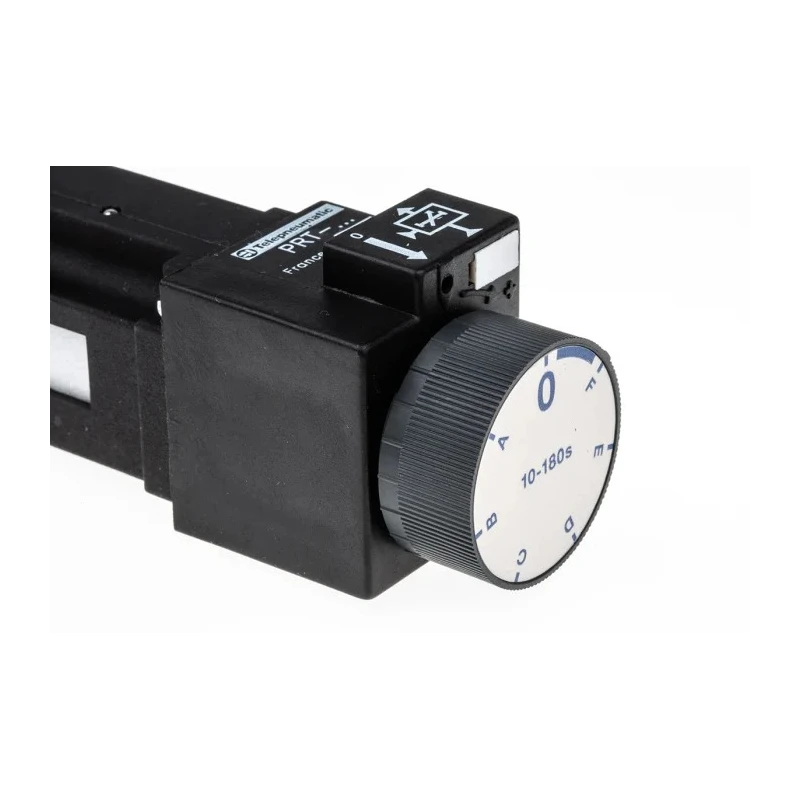

Parker Pneumatic Timer with 8 bar Maximum Operating Pressure PRT-B10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Parker |
| Maximum Operating Pressure | 8 bar |
| Model | PRT-B10 |
| Mount Type | Flush, DIN Rail, Surface |
| Series | PRT |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -15°C |
| Hazardous Area Certification | NFC 23514, NFC 23519, LCIE 866115X, EN 50019, EExe ll T4, EN 50014 |
| Standards/Approvals | NFC 23519, EN 50014, EN 50019, NFC 23514 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Minimum Operating Pressure | 3bar |
| Parker Pneumatic Timer 8 bar maxBrand | Parker |
| Parker T3P10 series 5s to 40s Pneumatic Timer, 7 bar maxBrand | Parker |
Key Features
- Operating pressure ranges between 3 bar and 8 bar for flexible industrial applications.

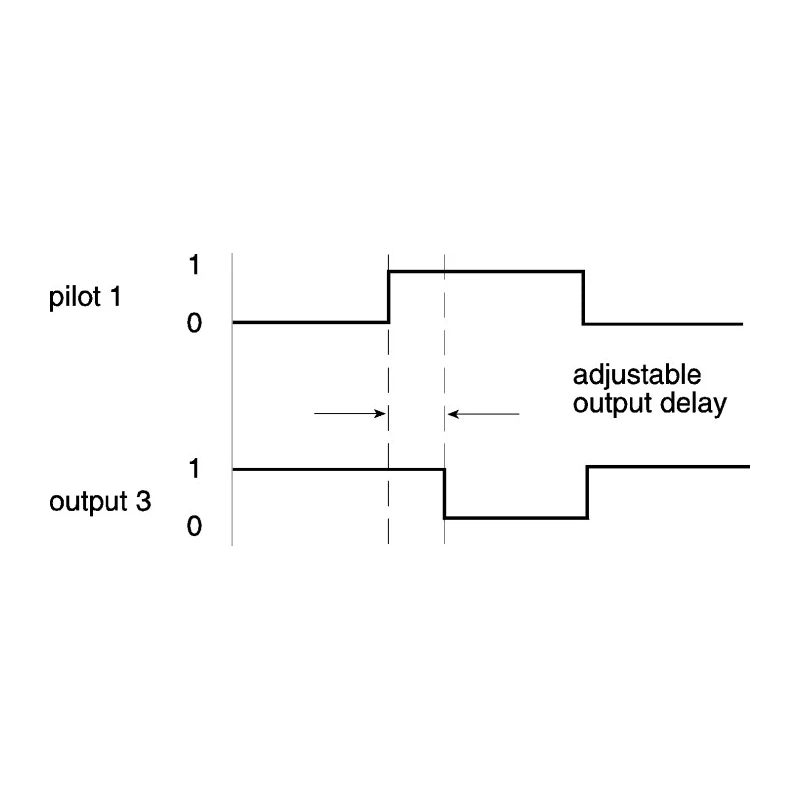

- Timing range adjustable from 10 seconds to 180 seconds for controlled delay operations.
- Robust polyamide body ensures long service life and durability.
- Can be flush, DIN rail, or surface mounted for versatile installation.
- Operating temperature range from -15°C to 60°C suitable for varied environments.
- Extremely reliable with a fast response time of 2 to 3 milliseconds.
- Includes a solenoid coil/core, operating spring, timing disk, filter, and diaphragm for effective timing functionality.
- Requires 2 or 3 port subbase mount, sold separately, for operation.
Product Description

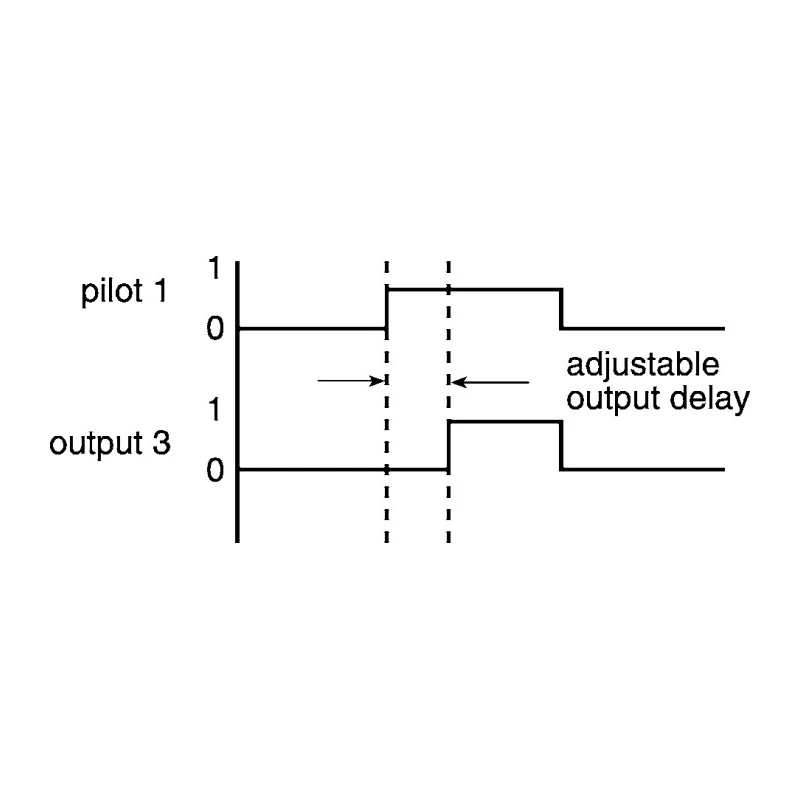

Parker PRT-B10 pneumatic timer is designed for precise time delay signaling with an operational pressure range from 3 bar minimum to 8 bar maximum. This timer features an adjustable timing range from 10 to 180 seconds making it suitable for a wide range of pneumatic control applications in industrial, manufacturing, and fluid power systems.
The timer unit consists of a solenoid coil and core which actuates a diaphragm to control airflow through a timing disk, enabling adjustable time delays by altering the needle valve. It is constructed with a durable polyamide body providing long life expectancy and reliability under standard operating temperatures from -15°C to 60°C.
The flexible mounting options include flush, DIN rail, or surface mounting to accommodate varying installation needs in pneumatic systems. The device is equipped with quick response times between 2 and 3 milliseconds, supporting rapid switching and timing accuracy.

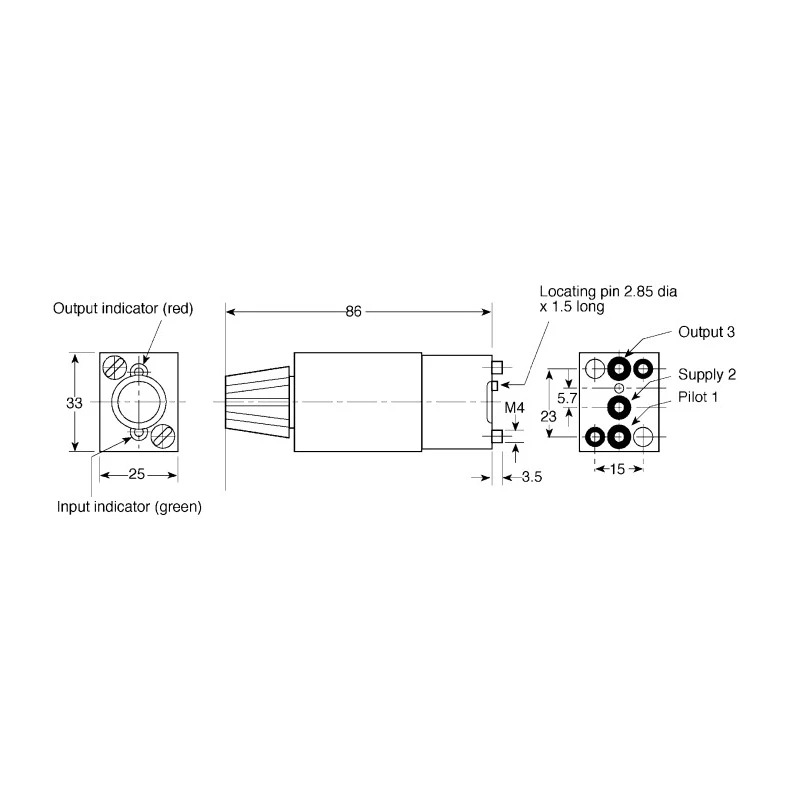

Designed for industrial-grade use, it requires a 2 or 3 port subbase mount (sold separately). Indicators on the unit show input (green) and output (red) pressure states for clear operational monitoring.
Operating pressure: 3 to 8 bar. Timing range: 10 to 180 seconds adjustable delay. Response time: 2 - 3 milliseconds. Material: Polyamide body construction. Mounting: Flush, DIN rail, surface. Operating temperature: -15°C to 60°C.
Includes solenoid coil/core, spring, timing disk, filter, diaphragm. ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 certified. Commonly used in pneumatic circuitry for automation in industrial, laboratory, HVAC, and manufacturing environments requiring precise timed pneumatic control.
Explore more in the Pneumatic Timers category at EnvMart for compatible pneumatic control solutions and advanced fluid power products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Parker Pneumatic Timer PRT-B10 is 8 bar.
This model features an adjustable timing range from 10 seconds to 180 seconds.
It can be mounted in three ways: flush, DIN rail, or surface mounted, providing versatile installation options.
The operating temperature range for this timer is from -15°C to 60°C.
The response time of this timer is between 2 to 3 milliseconds, allowing for rapid switching.
This unit includes a solenoid coil/core, operating spring, timing disk, filter, and diaphragm for effective timing functionality.
It is certified under ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, along with several hazardous area certifications.
The minimum operating pressure for the Parker Pneumatic Timer is 3 bar.
Yes, it requires a 2 or 3 port subbase mount, which is sold separately, for operation.
The body of this timer is constructed from durable polyamide, ensuring long service life.
This timer is commonly used in pneumatic circuitry for automation in industrial, laboratory, HVAC, and manufacturing environments.
The timer complies with standards including NFC 23519, EN 50014, and EN 50019.
