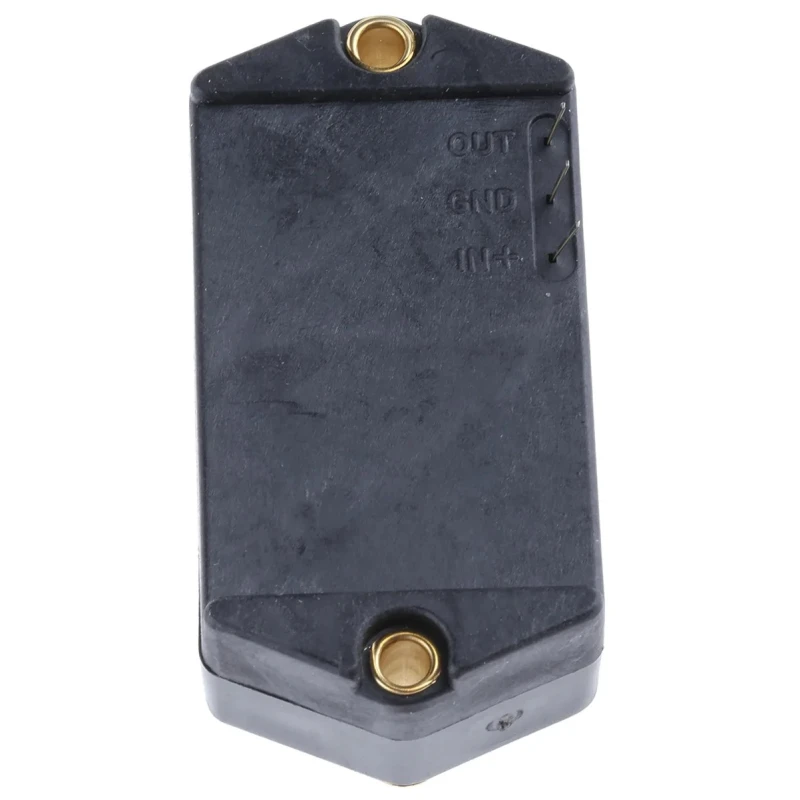

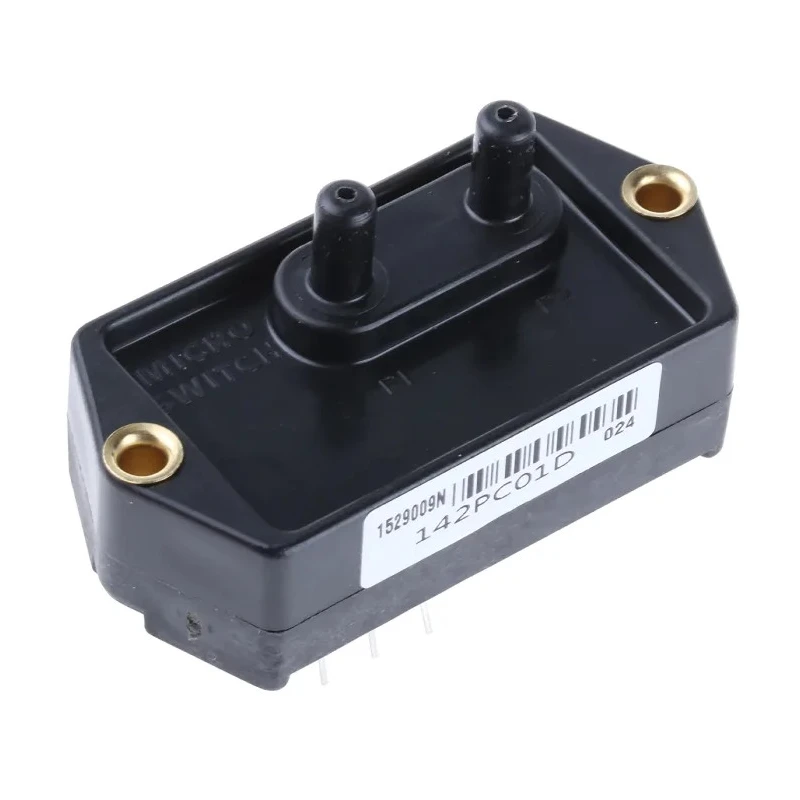

Honeywell Technologies Low Pressure Sensor 1 psi Maximum Operating Pressure 20 psi Breaking Pressure 142PC01D

Honeywell 142PC01D Low Pressure Sensor offers reliable pneumatic pressure sensing for industrial and fluid power applications. This sensor features a piezo-resistive semiconductor design with a silicon membrane that produces a linear output signal proportional to pressure, eliminating ripple effects.

With a maximum operating pressure of 1 psi and breaking pressure of 20 psi, it supports sensitive and precise pressure readings suitable for various fluid and gas systems. The device operates reliably across a temperature range from -40°C to 85°C, making it appropriate for demanding environmental conditions.

The sensor is made from durable materials including borosilicate glass, polyester, glass bond, epoxy adhesive, and silicon that ensure stability and long operational life. It complies with military standards MIL-STD-202 Method 204 and Method 213, ensuring robust performance.

A key feature is the very short response time of 1 millisecond, enabling real-time monitoring and control in pneumatic systems. The sensor supports both absolute pressure measurement relative to a perfect vacuum and differential pressure measurement between two pressure sources, broadening its application scope.

Equipped with a silicon membrane for linear output proportional to pressure. Features piezo-resistive semiconductor technology for high sensitivity and reliability. Operates within temperature range from -40°C to 85°C. Constructed with borosilicate glass, polyester, glass bond, epoxy adhesive, and silicon materials.

Complies with MIL-STD-202 standards including Method 204 and Method 213. Provides very short response time of 1 ms for fast pressure detection. Suitable for absolute and differential pressure measurements relative to vacuum or between two pressures.

This sensor is ideal for industrial, laboratory, manufacturing, HVAC, and fluid power applications requiring precise low pressure sensing and rapid response. Explore EnvMart's extensive selection of pneumatic Pressure Sensors for your automation and control needs.
