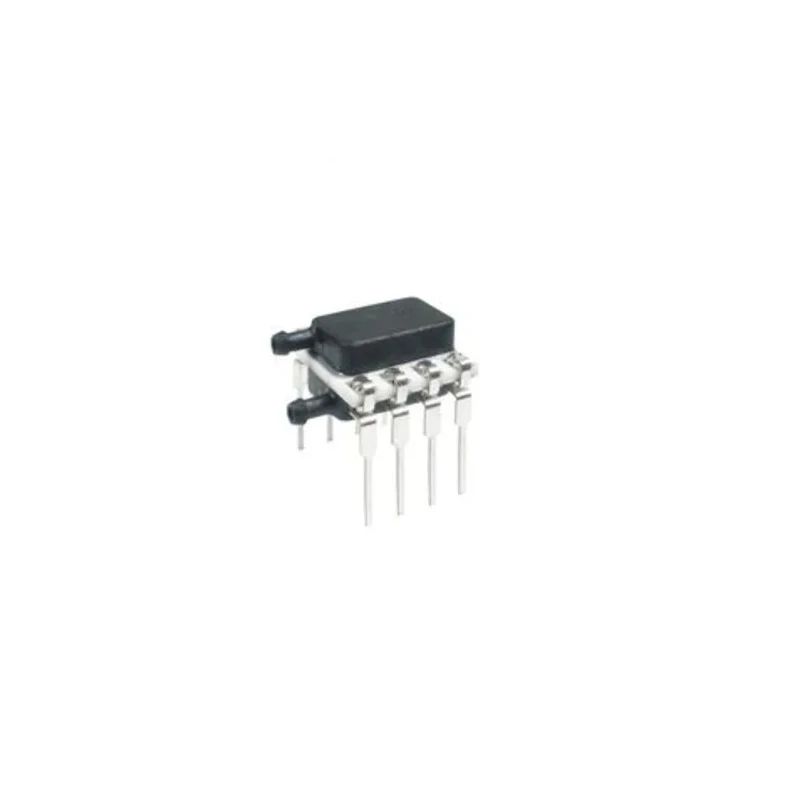

Honeywell Technologies Piezoresistive Pressure Sensor 6.89 kPa Operating Max HSCDRRV001PGAA5

Honeywell HSCDRRV001PGAA5 is a piezoresistive pressure sensor designed for precise pressure measurement up to 6.89 kPa maximum operating pressure. It features a board-mount design suitable for industrial and medical instrumentation requiring compact, low-power sensing solutions. The sensor operates reliably over an ambient temperature range of -20°C to +85°C, with temperature compensation over 0°C to 50°C, ensuring enhanced measurement stability in various environments.

This sensor provides ratiometric analogue output and 14-bit digital output with on-board ASIC calibration. It supports frequent output updates at approximately 1 kHz analogue and 2 kHz digital, making it ideal for integration with microprocessors and fast data acquisition systems. Operating from single 3.3V or 5.0V supplies, it simplifies system design while consuming less than 10mW power to extend battery life in portable equipment.

The sensor’s compact 10mm x 10mm package saves valuable PCB space, making it suitable for compact systems. It is designed for non-corrosive, non-ionic gases and certain liquids, supporting absolute, gauge, and differential pressure measurement types, enhancing versatility across applications.

Typical applications include airflow monitoring in respiratory and ventilator systems, oxygen concentrators, anaesthesia machines, HVAC flow detection, clogged filter sensing, gas flow instrumentation, chromatography systems, and medical analyzers such as spirometers and nebulizers.

This sensor is manufactured in China and is part of Honeywell’s HSC Series, offering high accuracy with ±0.25%FSS BFSL performance. It does not have specific standards or approvals listed but is engineered for industrial and medical sensor applications requiring reliable pressure measurement.

Provides ±0.25%FSS BFSL accuracy reducing software correction needs. High update rates with 1 kHz analogue and 2 kHz digital output. Temperature compensation between 0°C to 50°C enhances stability. Operates on low voltage supplies of 3.3V or 5.0V.

Extremely low power consumption extends operational life. Compact 10mm x 10mm form factor conserves PCB space. Supports absolute, gauge, and differential pressure types. Suitable for non-corrosive gases and select liquids.

Used in medical and HVAC applications for airflow and pressure monitoring. Manufactured in China, part of the Honeywell HSC Series. Discover more products in the Pneumatic Pressure Sensors category on EnvMart, featuring high-quality industrial sensors for diverse applications.
