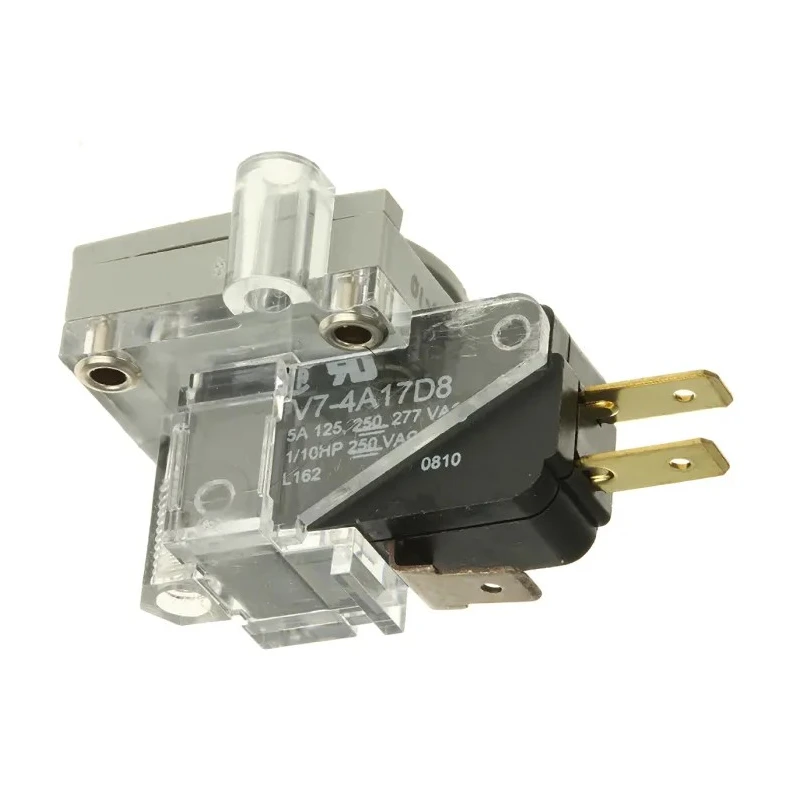

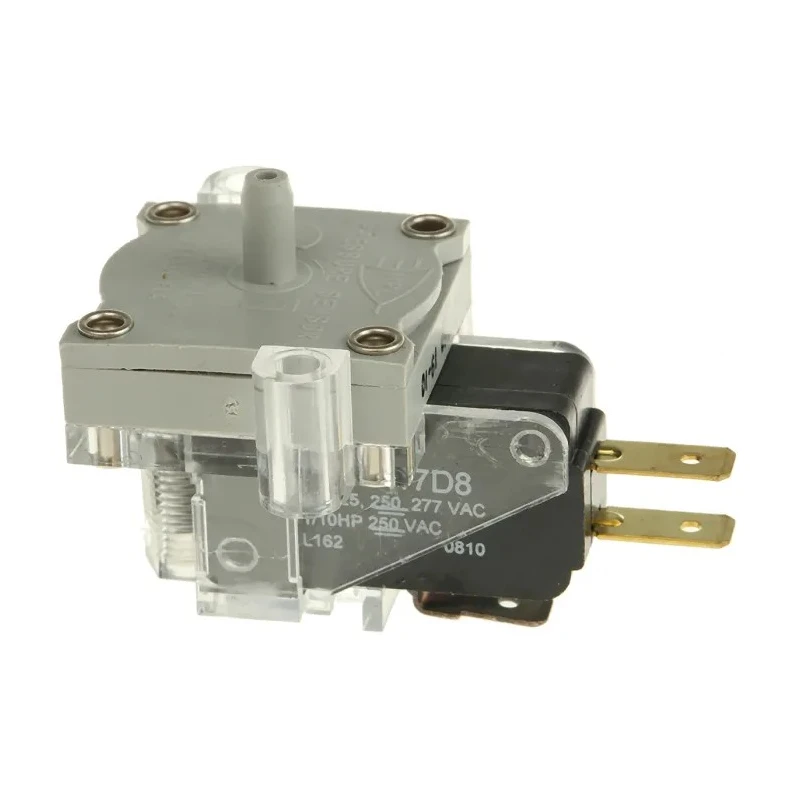

Herga Pressure Sensor SPDT (NO/NC) Adjustable Snap Action 0.07 to 2.75 bar 250V AC 5A 6101-0008
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V ac |
| Brand | Herga |
| Maximum Operating Pressure | 2.75 bar |
| Current | 5A |
| Series | 2 |
| Termination Type | Faston |
| Maximum Operating Temperature | 85°C |
| Pressure Type | Differential |
| Contact Configuration | SPDT (NO/NC) |
| Minimum Operating Temperature | -40°C |
| Ratings | from 70mbar to 2.75bar |
| Standards/Approvals | UL, CSA, RoHS |
| Minimum Operating Pressure | 0.07bar |
| Herga Pressure Sensor SPDT (NO/NC) 0.07 bar to 2.75 barBrand | Herga |
| Herga Pressure Sensor 2 CO 16 psi to 30 psiBrand | Herga |
| Herga Pressure Sensor 0.9 psiBrand | Herga |
Key Features
- Equipped with adjustable snap action for accurate switching.
- Features SPDT contact configuration supporting 5A current at 250V AC.
- Constructed with GF polyester housing and polyurethane diaphragm for durability.
- Includes factory-fitted spring and three additional color-coded springs for pressure range selection.
- Operates reliably between -40°C and 85°C temperature range.
- Termination type is Faston for easy installation.
- Certified to UL, CSA, and RoHS standards ensuring safety and compliance.
- Designed for industrial pneumatic and hydraulic pressure sensing applications.
Product Description
Herga 6101-0008 Pressure Sensor SPDT (NO/NC) is an adjustable snap action pressure switch designed for accurate differential pressure measurement ranging from 0.07 to 2.75 bar. Constructed with a robust GF polyester housing and a polyurethane diaphragm, this sensor ensures long-lasting performance under diverse operating conditions.
The device supports a contact current rating of 5A at 250V AC and offers three distinct port options: 5.0mm radial, 4.0mm perpendicular, and 1/8 NPT brass connection, allowing compatibility with various pneumatic systems. Termination is via Faston connections for straightforward installation.
This model includes a factory-fitted spring for a pressure range of 0.07 to 0.27 bar and comes with three additional color-coded springs (red, dark blue, yellow) to customize operating pressure ranges up to 2.75 bar as per application requirements.
It operates efficiently over a broad temperature span from -40°C to 85°C, making it suitable for demanding industrial, laboratory, HVAC, and manufacturing environments. The product is UL, CSA, and RoHS certified, assuring compliance with key safety and environmental standards.
With its versatile design and reliability, the Herga 6101-0008 pressure sensor is ideal for fluid power control, pneumatic systems, and vacuum component applications. Equipped with adjustable snap action for accurate switching.
SPDT contact configuration supporting 5A current at 250V AC. GF polyester housing and polyurethane diaphragm for durability. Includes factory-fitted spring and three additional springs for alternative pressure ranges. Operating temperature range from -40°C to 85°C.
Termination type: Faston. Three port options for installation flexibility. UL, CSA, and RoHS certified for safety and compliance. Suitable for industrial pneumatic and hydraulic applications. Explore more from Herga and the broad range of Pressure Sensors at EnvMart for all your precise pressure measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an adjustable pressure measurement range from 0.07 to 2.75 bar.
It features an SPDT (Single Pole Double Throw) contact configuration, which supports both normally open and normally closed operations.
The pressure sensor supports a maximum current of 5A at a voltage of 250V AC.
Termination is via Faston connections, allowing for straightforward installation.
It operates efficiently within a temperature range of -40°C to 85°C.
The sensor is constructed with a GF polyester housing and a polyurethane diaphragm, ensuring durability under various conditions.
It includes a factory-fitted spring for a pressure range of 0.07 to 0.27 bar and three additional color-coded springs for customizing the operating pressure up to 2.75 bar.
The product is certified to UL, CSA, and RoHS standards, ensuring safety and compliance with key regulations.
This model offers three distinct port options: 5.0mm radial, 4.0mm perpendicular, and 1/8 NPT brass connection.
It is suitable for industrial pneumatic and hydraulic pressure sensing applications, as well as fluid power control and vacuum component applications.
The minimum operating pressure for this model is 0.07 bar.
The maximum operating pressure for this pressure sensor is 2.75 bar.
