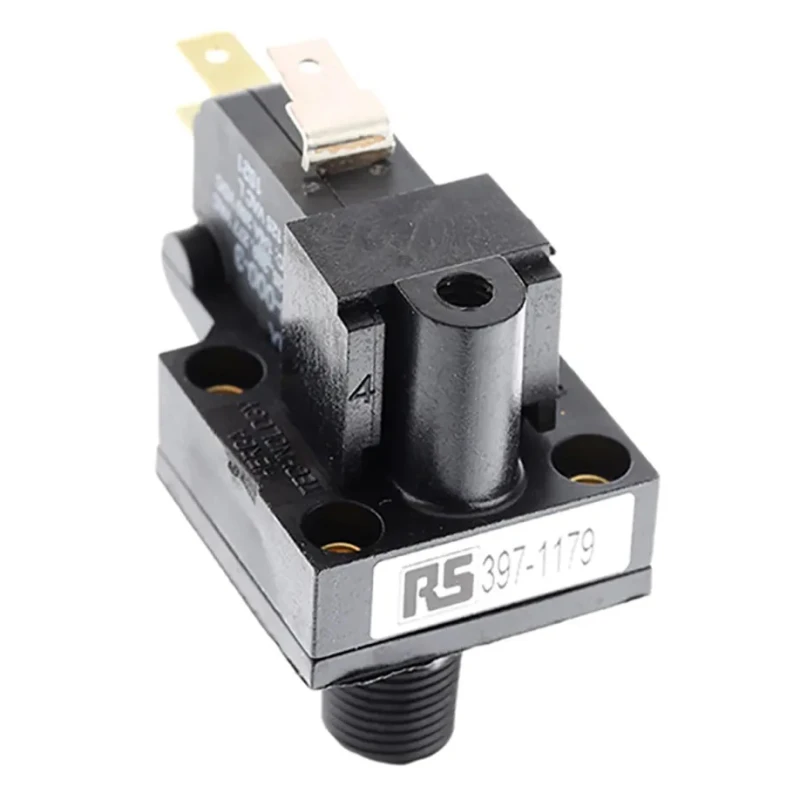

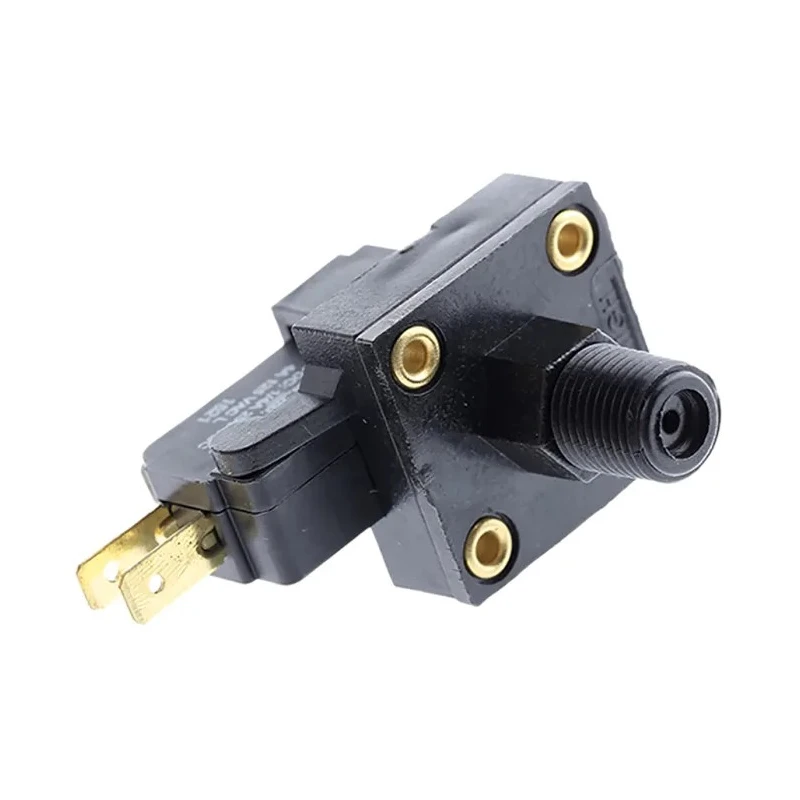

Herga Differential Pressure Sensor 0.07 bar to 2.75 bar 5A Relay Output 250V AC Series 2 6101-0012

Herga 6101-0012 differential pressure sensor is designed for reliable pressure monitoring with an operating range of 0.07 bar to 2.75 bar, a 5A relay switch output, and rated for 250V AC supply. This Series 2 pressure switch features an adjustable snap action mechanism housed in durable GF polyester with a polyurethane diaphragm, ensuring accurate differential pressure sensing in pneumatic and fluid power systems.

The device includes a single port on the pressure side with three port mounting options: 5.0 mm radial, 4.0 mm perpendicular, or 1/8 NPT brass connections, accommodating adaptors for NPT as needed. It comes factory-fitted with a spring calibrated for the 0.07 to 0.27 bar range, and additional color-coded springs are supplied to extend the setting range up to 2.75 bar, offering flexibility to users for varied pressure requirements.

Termination is facilitated by Faston-style connectors for ease of installation and electrical interfacing. The sensor is known for stable performance under harsh environments, demonstrated by its operating temperature span from -40°C to +85°C, making it suitable for diverse industrial, laboratory, and HVAC applications.

Certified by UL and CSA standards and compliant with RoHS directives, the sensor meets modern safety and environmental requirements. It is manufactured in the United States, assuring consistent quality for professional use.

Versatile adjustable pressure switch with multiple port options and spring settings. Robust construction with polyester housing and polyurethane diaphragm. Gold inlay contacts for long-lasting reliable switching action. Wide temperature range operation suitable for multiple industries.

UL, CSA, and RoHS certified for safety and environmental compliance.

This Herga 6101-0012 pressure sensor is ideal for precise differential pressure measurement in industrial machines, fluid power equipment, pneumatic controls, and laboratory instruments requiring dependable pressure switch operation.
