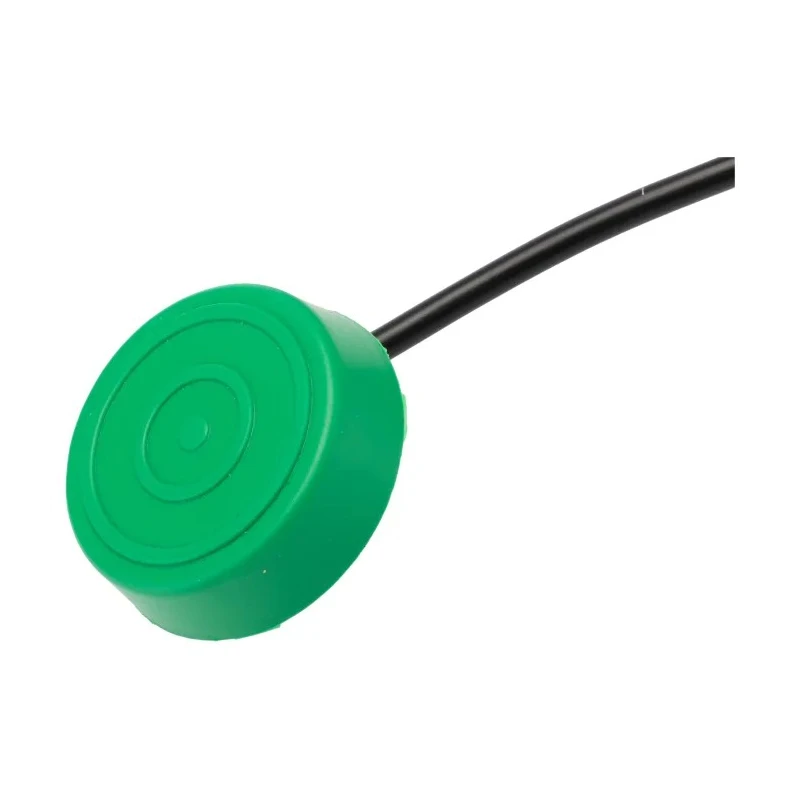

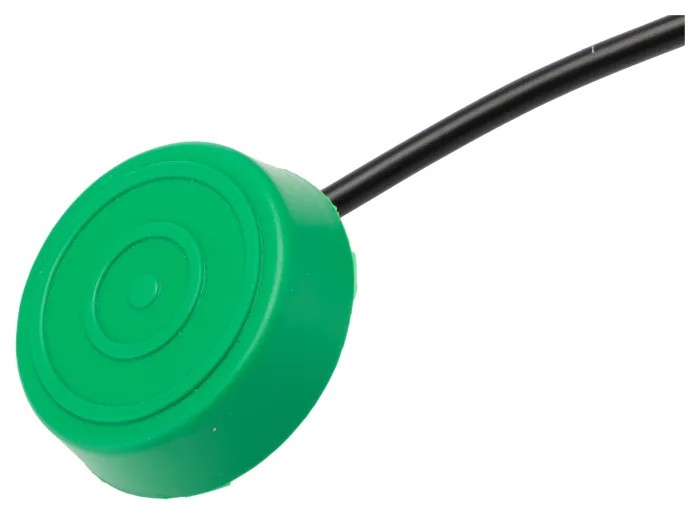

Herga Medically Approved Foot Switch Bellow Momentary SPST Polyvinyl Chloride PVC 50mA Contact Current 6241-0004
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Herga |
| Colour | Green |
| Operating Temperature | -5°C to +40°C |
| Height | 12mm |
| Length | 40mm |
| IP Rating | IP67 |
| Width | 40mm |
| Housing Material | Polyvinyl Chloride |
| Series | 6241 |
| Contact Configuration | SPST |
| Contact Rating | 50 mA |
| Switch Configuration | SPST |
| Terminal type | Cable |
| Standards/Approvals | EN |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 50mA |
| Switch Environment | Medically Approved Foot Switch Bellow |
| Black, RS stock no | 456-1701 |
| Grey, RS stock no | 456-1739 |
| Red, RS stock no | 456-1717 |
| Green, RS stock no | 456-1745 |
Key Features
- Features a momentary SPST switch operation for precise control.
- Constructed with durable polyvinyl chloride for corrosion resistance.
- Electrical rating of 50mA contact current at 30V dc.
- Sealed to IP67 for dust and temporary water immersion protection.
- Compact dimensions of 40mm length, 40mm width, and 12mm height.
- Operates over a temperature range of -5°C to +40°C.
- Complies with medical standards IEC 60601-1 and UL 60601-1.

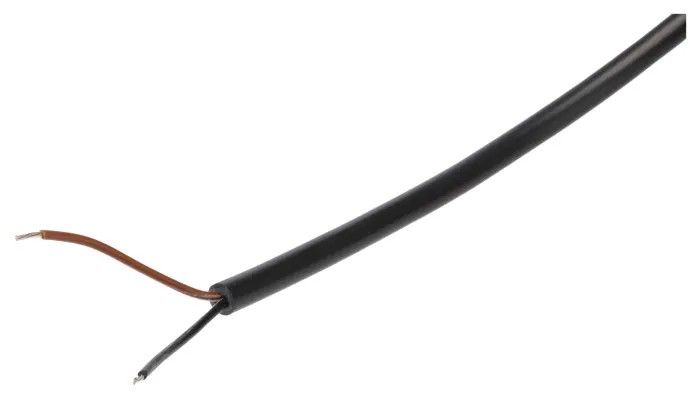

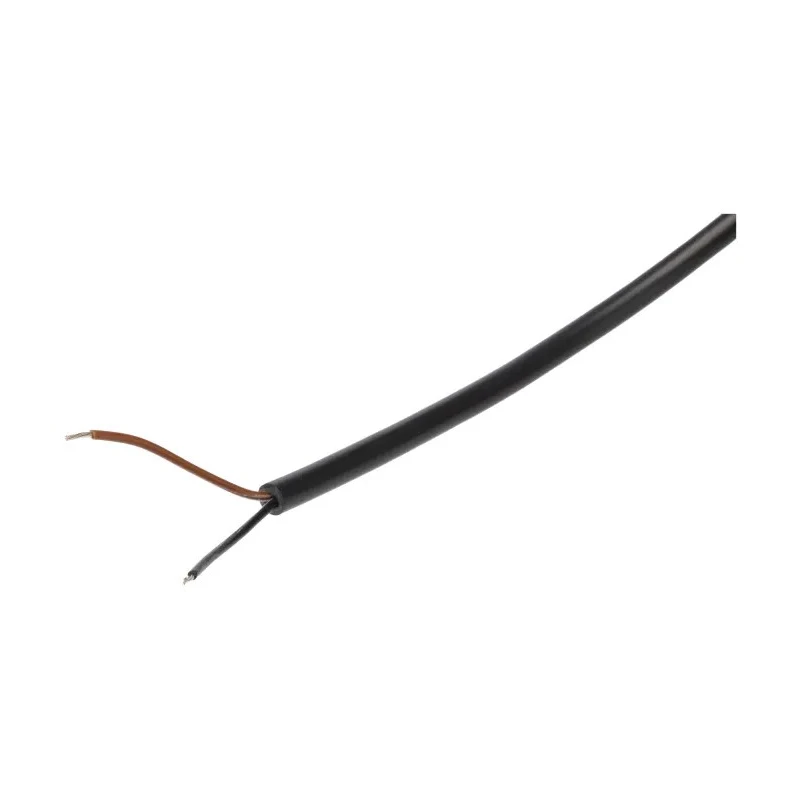

- Includes 2 metres of black 2-core cable with back entry base fitting.
Product Description
Herga 6241-0004 is a medically approved momentary foot switch featuring a single pole single throw (SPST) configuration and crafted from robust polyvinyl chloride (PVC). It offers dependable electrical control with a contact rating of 50mA and contact DC voltage of 30V, ensuring safety and precision in operation.
This bellow-style foot switch is designed to be activated with a light touch by foot, enabling hands-free operation for industrial machinery, medical devices, and musical instruments among other use cases. Its low profile and flat top bellows design enhance ergonomic usability.
The housing material PVC ensures chemical and wear resistance, while the IP67 rating provides protection against dust ingress and temporary submersion in water, making it suited for demanding environments. The operating temperature range from -5°C to +40°C ensures reliable performance across various conditions.

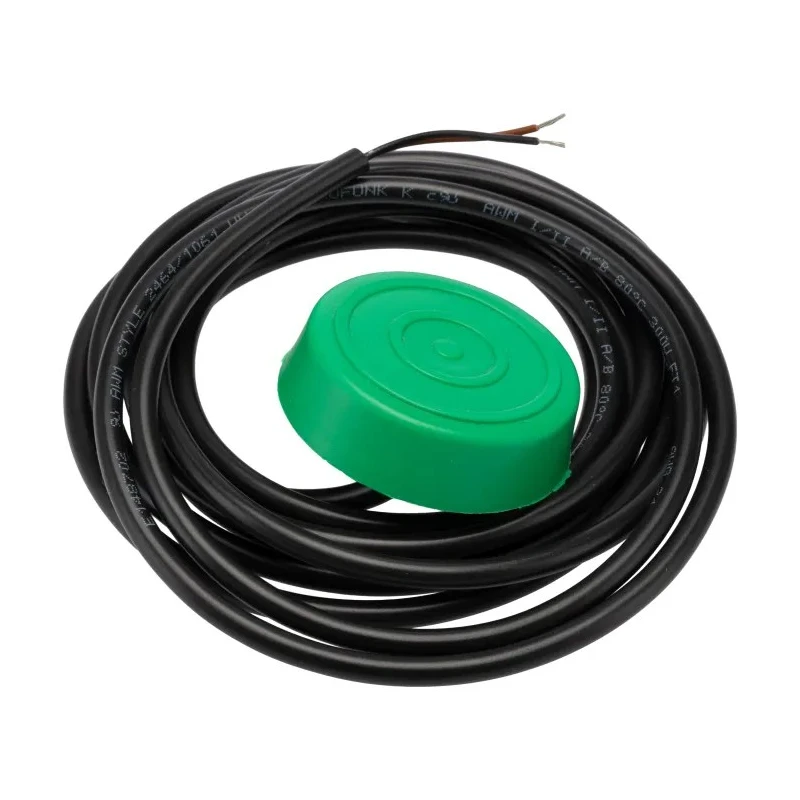

The switch includes a 2 metre pre-fitted black 2-core cable and features back entry cable fitting with M4 inserts for secure mounting. It is compliant with recognized safety and electrostatic discharge standards including IEC 60601-1 and UL 60601-1.
Momentary SPST switching for controlled circuit activation. Durable polyvinyl chloride housing resistant to corrosion and wear. IP67 ingress protection rating for dust and water resistance. Compact footprint: 40mm x 40mm x 12mm.
Operates reliably between -5°C and +40°C ambient temperatures. Complies with medical electrical safety standards IEC 60601-1 and UL 60601-1. Includes 2 metres of 2-core black cable with back entry mounting.
Herga products are trusted in the electrical and automation industry for their quality and compliance. This foot switch is ideal for applications requiring durable, precise, and safe momentary control within industrial, medical, and musical environments.
Explore more precision switching solutions and Foot Switch variants in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The foot switch has a contact rating of 50mA at a contact DC voltage of 30V.
It is sealed to IP67, providing protection against dust and temporary water immersion.
The compact dimensions are 40mm in length, 40mm in width, and 12mm in height.
It operates reliably within a temperature range of -5°C to +40°C.
This model features a momentary single pole single throw (SPST) switch configuration.
The housing is made from durable polyvinyl chloride (PVC), which is resistant to corrosion and wear.
It includes a 2 metre pre-fitted black 2-core cable with a back entry base fitting.
It complies with medical standards IEC 60601-1 and UL 60601-1.
It is designed for use in industrial machinery, medical devices, and musical instruments, allowing for hands-free operation.
The bellow-style foot switch is activated with a light touch by foot, enabling precise control without hands.
The foot switch is manufactured in the United Kingdom.
This model is available in green.
