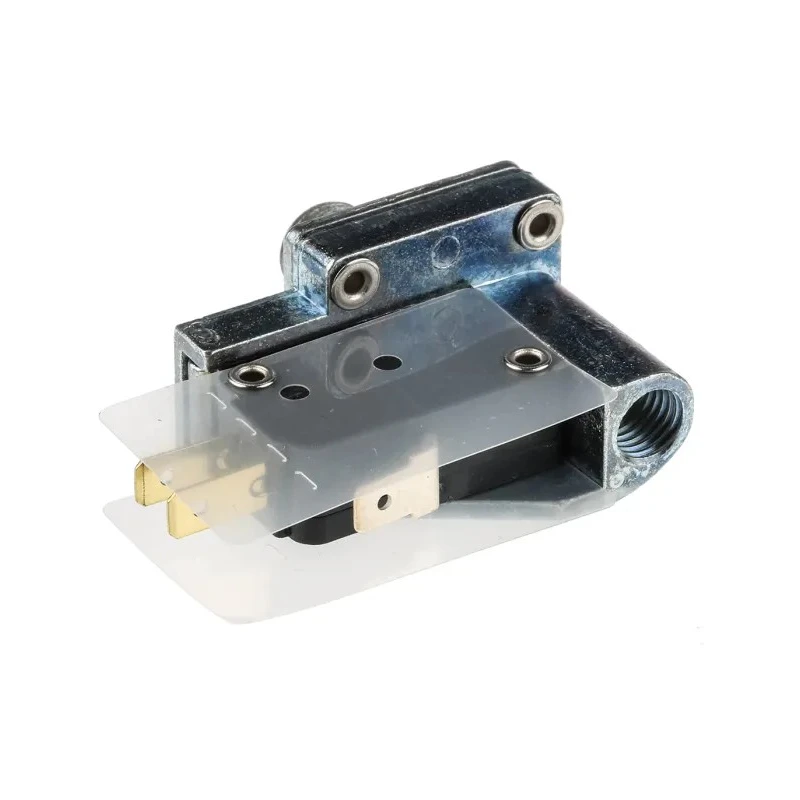

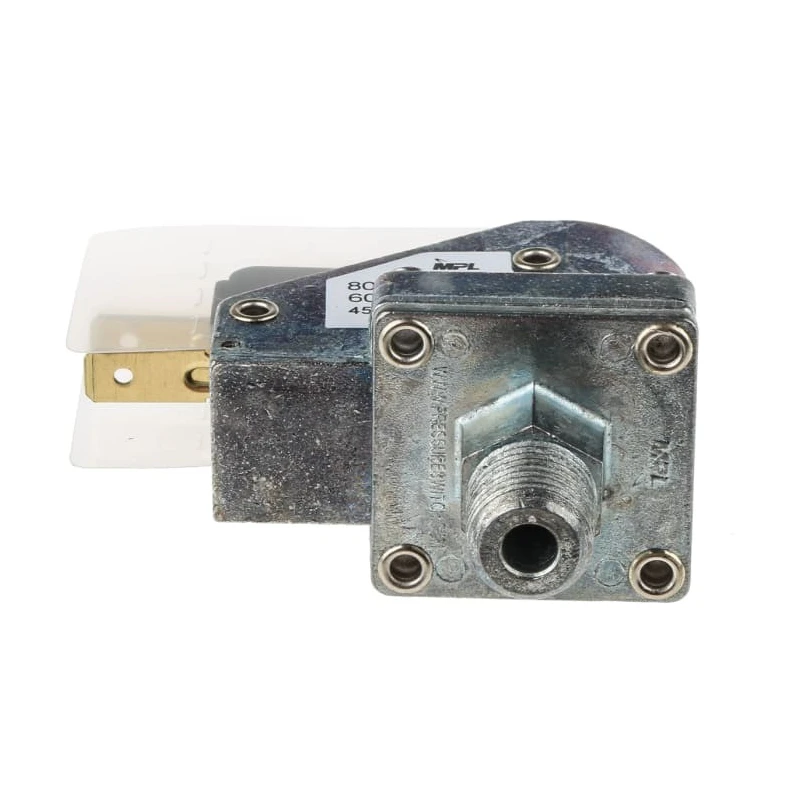

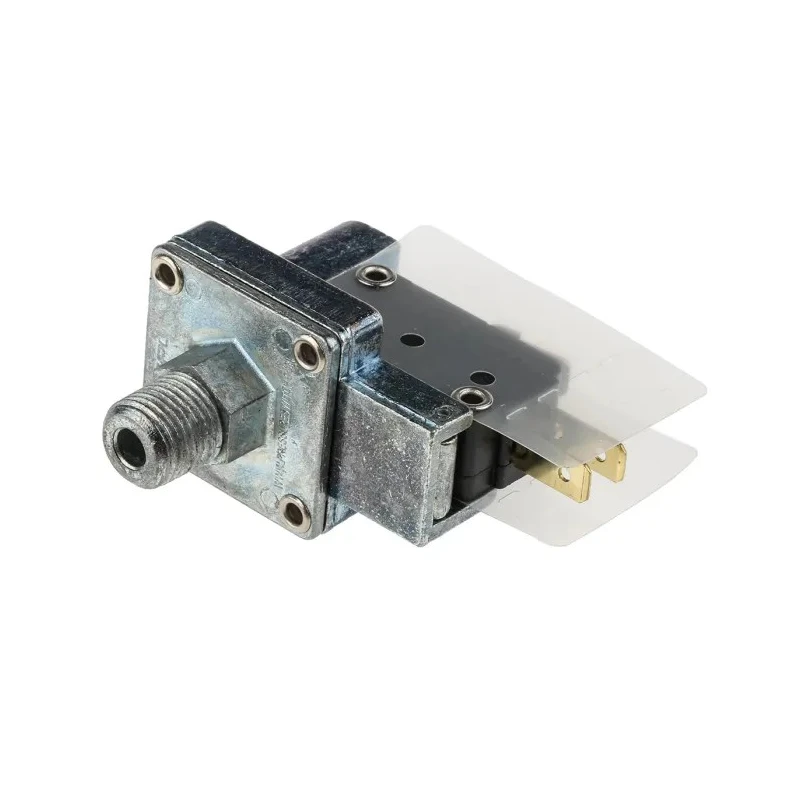

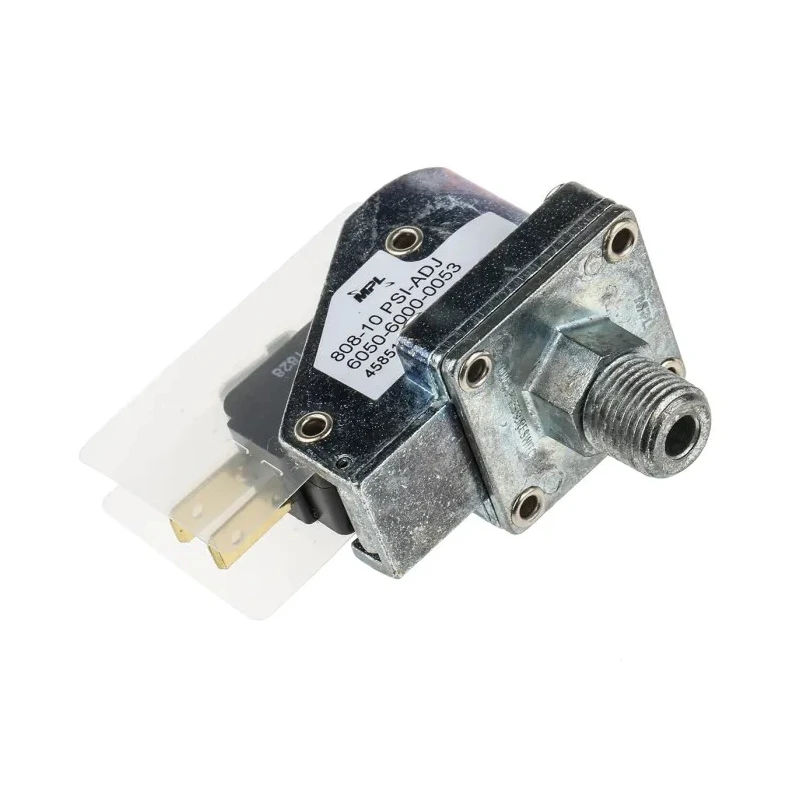

Herga Vacuum and Differential Pressure Sensor 0.25 mbar to 16 bar, 24V, MPL Series 6101-0013
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 24V |
| Brand | Herga |
| Maximum Operating Pressure | 16 bar |
| Current | 20mA |
| Series | MPL |
| Termination Type | Faston |
| Maximum Operating Temperature | 85°C |
| Pressure Type | Vacuum and Differential |
| Rating | 0.69 to17.2 bar (10 to 250 psi) |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL, RoHS, CSA |
| Connection Thread Standard | NPT |
| Minimum Operating Pressure | 0.25mbar |
| Burkert Type 1045 Series Pressure Sensor 3 bar 16 barBrand | Burkert |
Key Features
- Miniature medium to high-pressure sensor rated from 0.69 to 17.2 bar (10 to 250 psi).
- Die cast housing with integral 1/8 NPT connection and polyurethane diaphragm.
- Silver alloy contacts with external adjustment screw for flexible calibration.
- Faston termination with factory-fitted and three additional color-coded springs.
- Operating temperature range from -40°C to 85°C for versatile applications.
- UL recognised, RoHS, and CSA approved for safety and environmental standards.
- Can be mounted in any orientation suited to various industrial setups.
- Manufactured in the United States with high-quality standards.
Product Description
Herga 6101-0013 vacuum and differential pressure sensor is engineered for precise pressure measurement from 0.25 mbar to 16 bar. Operating on 24V within the MPL series, this sensor is a reliable choice for diverse industrial, pneumatic, and hydraulic applications requiring accurate pressure sensing and switching.
Constructed with a miniature die-cast housing, the sensor features an integral 1/8 NPT connection and a durable polyurethane diaphragm that ensures excellent resistance and longevity. Its silver alloy contacts and an external adjustment screw allow for accurate calibration and adaptability in various setups.
The sensor has a pressure rating from 0.69 to 17.2 bar (10 to 250 psi) and includes a factory-fitted spring designed for operating pressures ranging 0.69 to 2.76 bar. Additionally, three alternative color-coded springs - red, dark blue, and yellow - are included for user-selectable pressure ranges from 2.07 to 17.2 bar, enhancing its flexibility.
Designed for fast termination, the sensor is equipped with a Faston connector and is approved by UL, RoHS, and CSA, ensuring compliance with high safety and quality standards. With an operating temperature range from -40°C to +85°C, it suits a wide spectrum of industrial environments.
This Herga pressure sensor is manufactured in the United States and is essential for applications in pneumatic pressure regulation, monitoring hydraulic systems, and other industrial and laboratory measurement tasks requiring dependable pressure sensing. Its ability to be mounted in any orientation offers installation versatility.
Miniature medium to high-Pressure Sensor rated 0.69 to 17.2 bar (10 to 250 psi). Die cast housing with integral 1/8 NPT connection, polyurethane diaphragm, and silver alloy contacts. External adjustment screw with factory-fitted and three additional color-coded springs.
Faston termination type simplifies electrical connections. Operating temperature range from -40°C to 85°C suits diverse environments. UL, RoHS, and CSA approved for quality and safety compliance. Flexible mounting in any orientation for industrial and pneumatic applications.
Explore more Herga pneumatic and hydraulic sensors and related pressure measurement instruments at EnvMart for advanced pressure control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Herga MPL Series 6101-0013 pressure sensor measures from 0.25 mbar to 16 bar (0.69 to 17.2 bar or 10 to 250 psi).
It features an integral 1/8 NPT connection for easy installation in various setups.
This sensor operates at a voltage of 24V.
The operating temperature range is from -40°C to +85°C, making it suitable for diverse industrial environments.
It includes an external adjustment screw for flexible calibration, allowing users to adapt the sensor to their specific needs.
The sensor is equipped with a Faston termination type for simplified electrical connections.
It is UL recognized, RoHS compliant, and CSA approved, ensuring adherence to safety and environmental standards.
Yes, it can be mounted in any orientation, providing versatility for various industrial applications.
The sensor features a die-cast housing and a polyurethane diaphragm, ensuring durability and resistance.
The maximum operating pressure is 16 bar.
It comes with a factory-fitted spring and three additional color-coded springs for user-selectable pressure ranges from 2.07 to 17.2 bar.
This sensor is suitable for pneumatic pressure regulation, monitoring hydraulic systems, and various industrial and laboratory measurement tasks.
