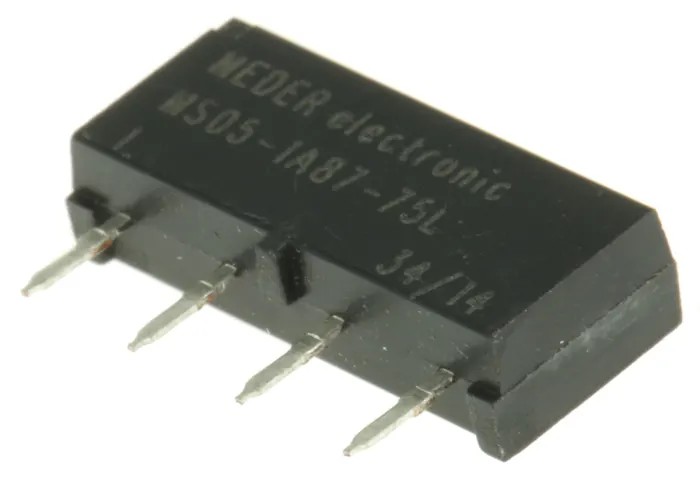

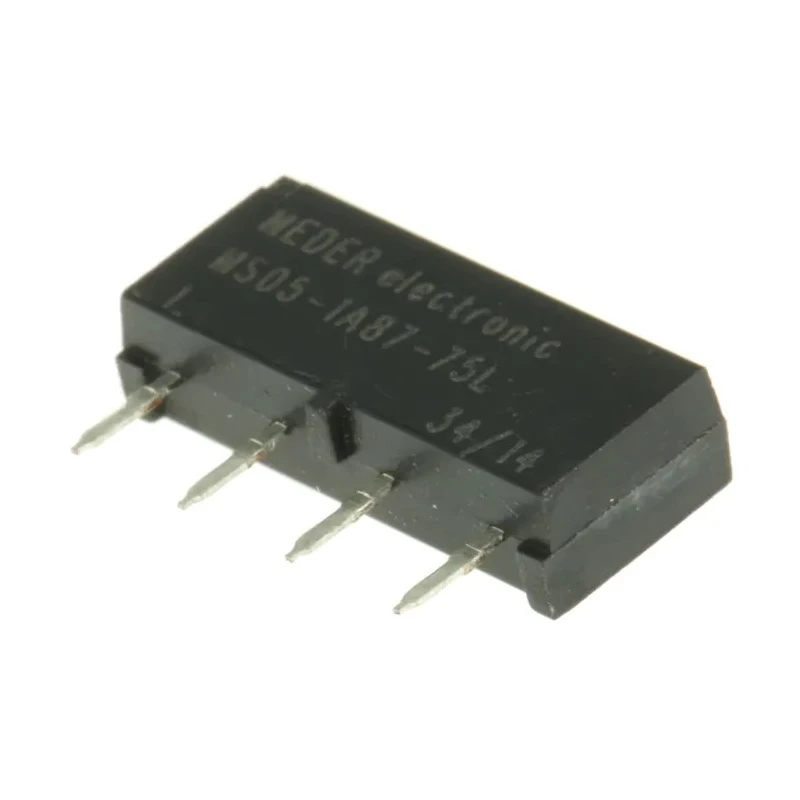

Meder Reed Relay Normally Open Micro SIL Coil Protection Diode UL Approved MS05-1A87-75L
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Meder |
| Model | MS05-1A87-75L |
| Series | MS |
| Accessory Type | Reed Relay |
| Vibration resistance | 10 - 2000 Hz, 20g |
| Standards/Approvals | UL |
Key Features
- Features standard coil voltages for 5 and 12 Vdc.
- Includes an optional integral coil protection diode.
- Compact size uses only 15.2 x 3.81 mm of board space.
- Designed with vibration resistance of 10 to 2000 Hz at 20g for durability.
- UL approved for reliable safety and quality.
- Ideal for industrial and automation applications requiring precise switching.
- Manufactured in Germany assuring quality craftsmanship.
Product Description
Meder MS05-1A87-75L is a UL-approved reed relay featuring a normally open (form A) micro SIL design optimized for compact electronic circuit board usage. With its standardized coil voltages of 5 and 12 Vdc, this relay integrates an optional integral coil protection diode for enhanced reliability and protection.
The relay footprint is minimal, occupying just 15.2 x 3.81 mm, making it suitable for high-density PCB layouts. It exhibits robust vibration resistance across a frequency range of 10 to 2000 Hz at 20g, ensuring mechanical resilience in demanding industrial environments.
Manufactured in Germany, the MS05-1A87-75L adheres to UL standards, validating its safety and performance credentials. This assembly is ideal for use in electrical automation, control, and signal conditioning circuits that require dependable reed relay functionality in compact form factors.
Reed relays like the MS05-1A87-75L are widely employed in industrial control systems, instrumentation, telecommunications, and HVAC equipment. Their small size and low coil power consumption contribute to efficient, precise switching operations critical in modern automated technologies.
Standard coil voltages: 5 and 12 Vdc. Normally open (form A) micro SIL contact arrangement. Integral coil protection diode optional feature. Compact PCB footprint: 15.2 x 3.81 mm. High vibration endurance: 10 - 2000 Hz, 20g.
UL approval ensures safety and reliability. Manufactured in Germany with high quality standards.
Explore more high-quality Reed Relays and related electrical components in the Electronics & Electricals category on EnvMart to support your industrial, laboratory, construction, and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Meder MS05-1A87-75L relay features standard coil voltages of 5 and 12 Vdc.
This model occupies a compact footprint of 15.2 x 3.81 mm, making it suitable for high-density PCB layouts.
It exhibits vibration resistance across a frequency range of 10 to 2000 Hz at 20g, ensuring mechanical resilience in demanding environments.
Yes, the Meder MS05-1A87-75L is UL approved, ensuring its safety and performance credentials.
This relay features a normally open (form A) micro SIL contact arrangement.
This relay is ideal for use in electrical automation, control, and signal conditioning circuits, as well as in industrial control systems, telecommunications, and HVAC equipment.
Yes, the Meder MS05-1A87-75L includes an optional integral coil protection diode for enhanced reliability and protection.
This relay is manufactured in Germany, assuring high quality standards.
The relay belongs to the MS series, which includes various models of reed relays.
The integral coil protection diode serves to protect the relay from voltage spikes that can occur when the coil is de-energized, enhancing reliability.
The weight of this relay is not specified in the provided data.
Key features include standard coil voltages of 5 and 12 Vdc, a compact footprint of 15.2 x 3.81 mm, high vibration resistance, and UL approval.
