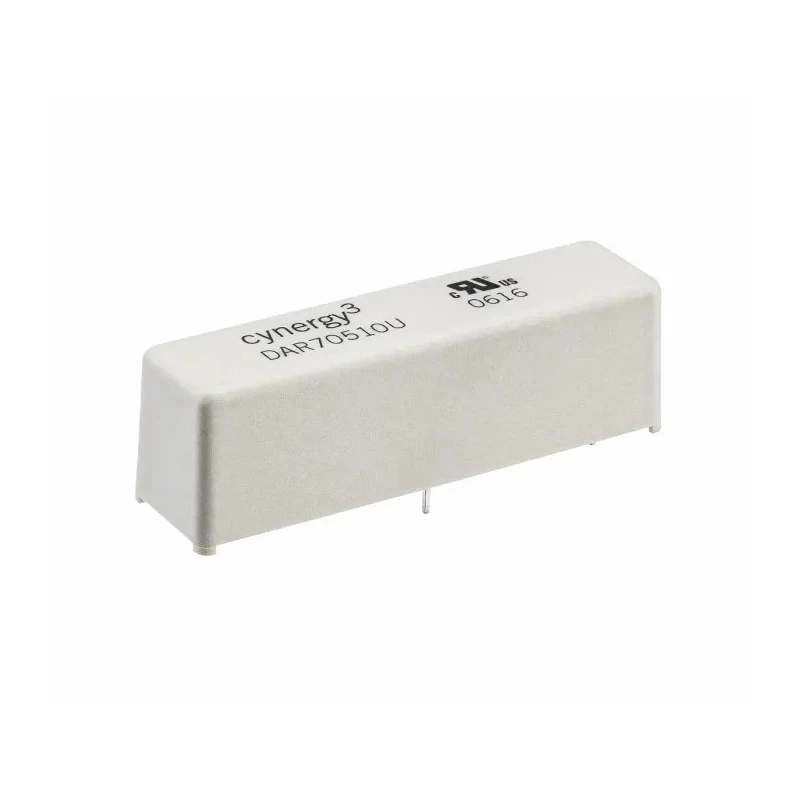

Cynergy3 PCB Reed Relay 24V DC Coil, SPNC Contact Configuration, 50W Coil Power, 7000V DC Max, 2A Max, Model

Cynergy3 DBT72405U is a high performance PCB Reed Relay featuring a 24V DC coil and SPNC contact configuration. With coil power and switching power rated at 50W, this relay is engineered to deliver high reliability in industrial, automation, test equipment, and high voltage power supply applications. Its compact dimensions (60mm length x 18.5mm height) and PCB terminal mount make it suitable for dense circuit assemblies requiring robust switching components.

The relay provides excellent electrical isolation with up to 7000V DC maximum switching voltage and 17kV coil to contact isolation voltage, making it ideal for sensitive electronic circuits and safety-critical systems. Contact resistance is low at 250mΩ, supported by high vacuum Tungsten or Rhodium contacts to ensure minimal signal loss and long service life. Operating temperature ranges from -20°C to 70°C, ensuring reliable performance in diverse environmental conditions.

The fast 2ms operating time and 2A maximum switching current enable it to handle rapid switching tasks in control systems. This model is non-latching and meets UR standards, reflecting its compliance with relevant industrial safety approvals. The coil resistance is 925Ω, minimizing coil power consumption and heat generation during operation.

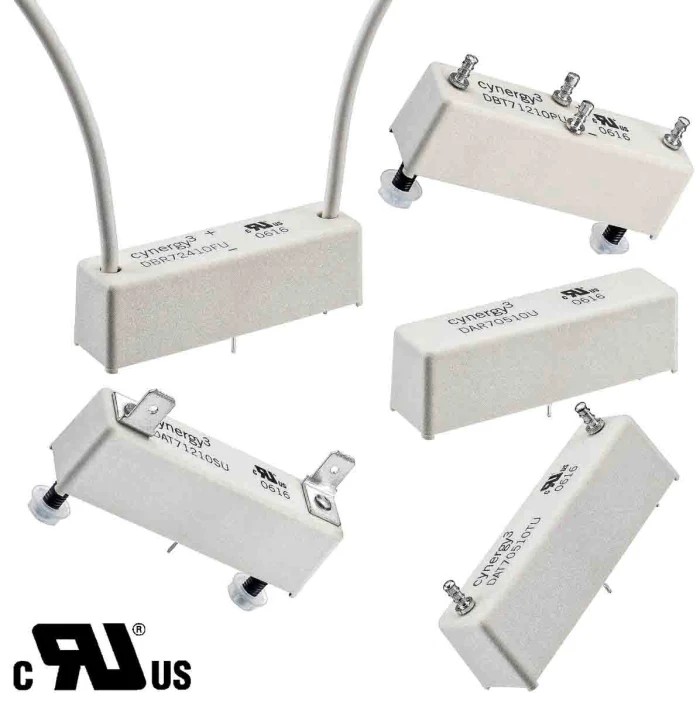

Suitable for industrial automation, manufacturing, electrical control panels, laboratory instrumentation, and other demanding electronic relay switching applications, the Cynergy3 DBT72405U PCB Reed Relay ensures precision, durability, and safety in critical relay needs. It supports various mounting options including PCB mounting and options for connection via flying leads, solder turret, or spade terminals.

Operates efficiently with 24V DC coil power and coil resistance of 925Ω. Provides 7000V DC maximum switching voltage with outstanding isolation of 17kV between coil and contact. Compact form factor for PCB mounting with dimensions 60mm by 18.5mm.

Switches currents up to 2A with a quick operating time of 2 ms. Equipped with Tungsten or Rhodium contacts for enhanced durability and performance. Designed for industrial, laboratory, manufacturing, and automation applications.

Complies with UR industrial safety standards for quality assurance. Non-latching design with high vacuum reed switch mechanism for reliable switching. Explore high quality Cynergy3 Reed Relays and related components in the Electronics & Electricals section on EnvMart for industrial and commercial applications.
