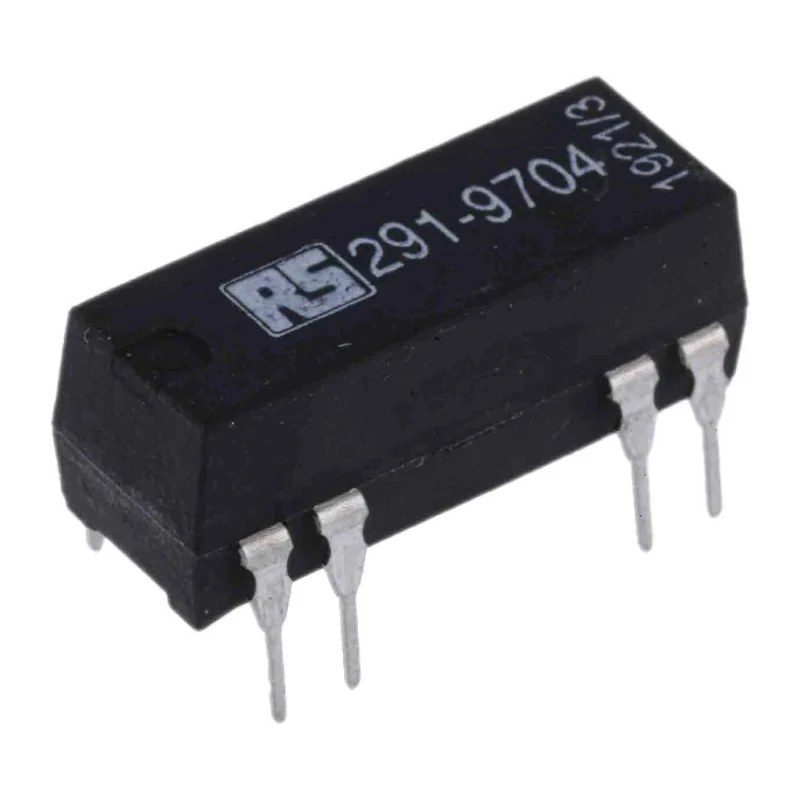

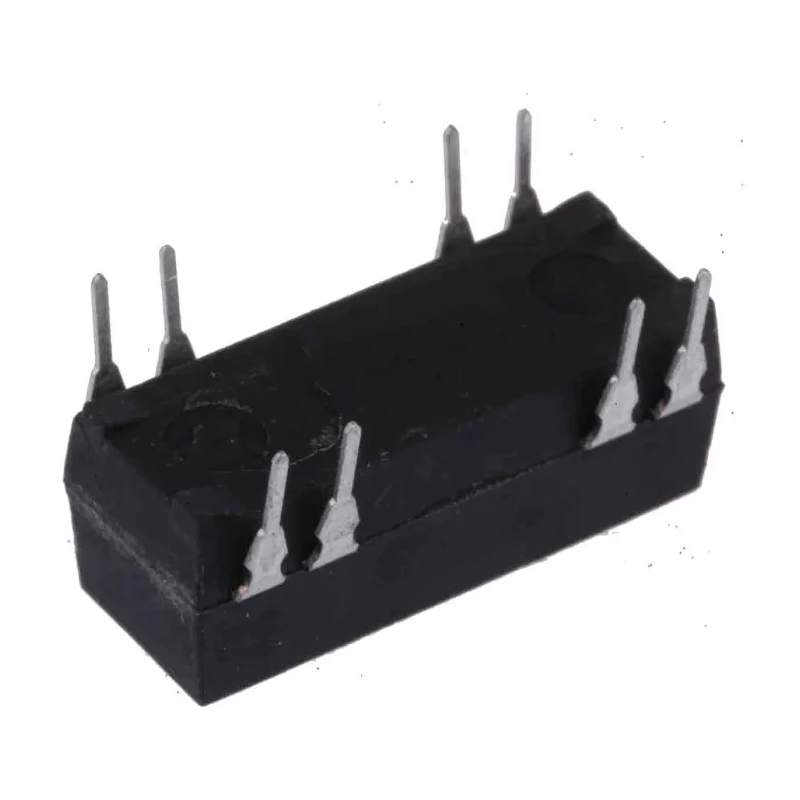

RS PRO PCB Reed Relay, SPDT, 5 V DC Coil, 0.25 A Max Switching Current, 175 V DC Max, 200 Ω Coil Resistance 291-9704

RS PRO 291-9704 is a high-quality PCB Reed Relay featuring a single-pole double-throw (SPDT) contact configuration with a 5 V DC coil voltage, ideal for precise switching applications.

Constructed with a mineral-filled casing and copper alloy pins, this relay delivers both strength and high conductivity, ensuring durability and consistent electrical performance in demanding industrial environments.

With a maximum switching current of 0.25 A and voltage up to 175 V DC, this relay meets the operational needs of various electronic and electrical circuits. The coil power consumption is merely 125 mW, making it energy efficient for sustained use.

Its through-hole terminal and PCB mounting style allow for easy integration on printed circuit boards, supporting compact and low-profile electronic designs. The sealed casing protects internal components against environmental influences, increasing reliability and lifespan.

The relay maintains performance with an operating temperature range from -20°C to +70°C and possesses an isolation voltage of 1.5 kV DC between coil and contacts for enhanced safety and noise immunity. The contact resistance is limited to 250 milliohms, supporting efficient conduction.

Operating time is fast at 0.7 ms, suitable for applications requiring rapid switching. The dimensions of 19.3 mm length by 5.1 mm height contribute to its compact footprint.

Manufactured in Germany, the RS PRO 291-9704 complies with high industrial standards, guaranteeing reliable and safe operation in electronics, automation, manufacturing, and testing laboratory environments.

The relay features a maximum switching current of 0.25 A for AC/DC loads. It supports a maximum switching voltage of 175 V DC ensuring robust performance. Coil resistance is rated at 200 ohms with coil power consumption of 125 mW.

Its through-hole terminal and PCB mount type facilitate secure installation. The relay operates in temperature ranges from -20°C to +70°C for versatile environments. Operating time is a fast 0.7 milliseconds for quick response.

Isolation voltage between coil and contacts is 1.5 kV DC to ensure circuit protection. Contact resistance measures 250 milliohms, guaranteeing reliable conductivity. The compact design measures 19.3 mm length and 5.1 mm height, suitable for low-profile PCB assemblies.
