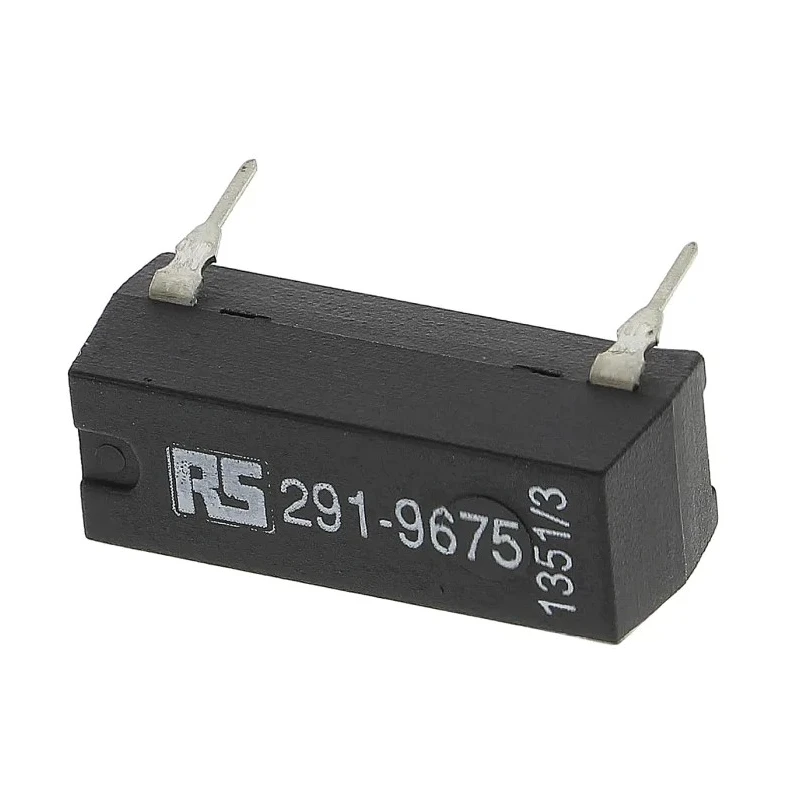

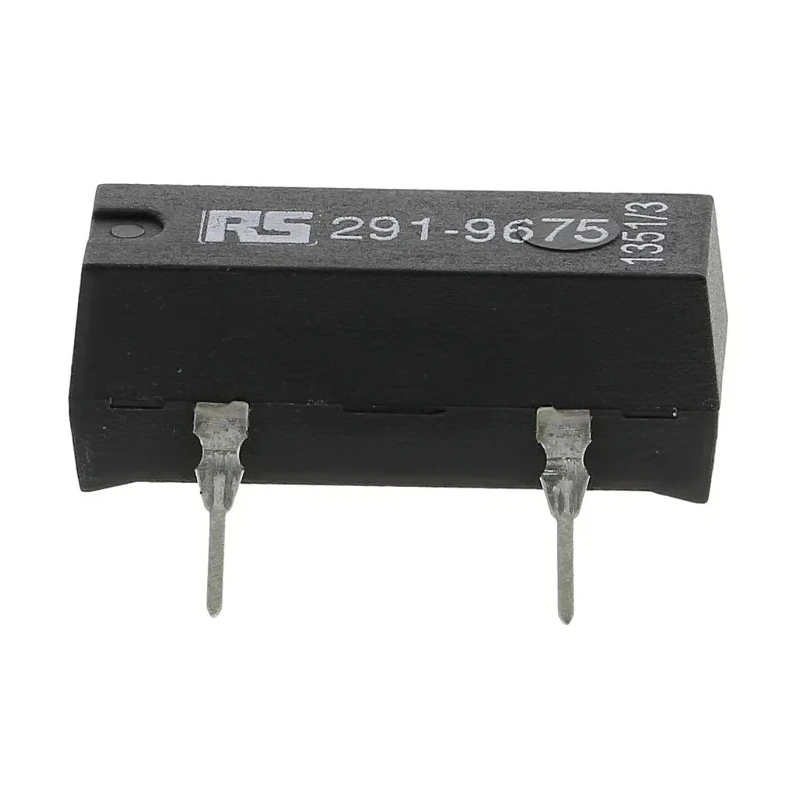

RS PRO PCB Reed Relay 5 V DC Coil, SPNO Contact Configuration, 0.5 A Max, 300 V DC Max, 200 Ω Coil Resistance Model 291-9675
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Height | 7.5mm |
| Length | 19.3mm |
| Model | 291-9675 |
| Operating Time | 0.5ms |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPNO |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder Pin |
| Contact Resistance | 200mΩ |
| Coil Resistance | 200Ω |
| Coil Power | 125mW |
| Switching Power | 15W |
| Isolation Coil To Contact | 2.5kV |
| RS PRO PCB Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25A Max, 200 ΩBrand | RS PRO |
| REED RELAY DIL SPBrand | NEUTRAL |
Key Features
- The relay features a coil power of 125 mW for efficient operation.
- It has a coil resistance of 200 Ω providing stable coil performance.
- The relay supports a maximum switching voltage of 300 V AC/DC and current of 0.5 A.
- Its compact dimensions include a length of 19.3 mm and height of 7.5 mm suitable for PCB mounting.
- Operating temperature ranges from -20°C to 70°C, making it suitable for varied environments.
- The relay contact material is tin-plated copper alloy ensuring low contact resistance of 200 mΩ.
- It features a fast operating time of 0.5 milliseconds including bounce time for quick switching.
- Isolation between coil and contact is rated at 2.5 kV DC ensuring high reliability and safety.
Product Description
RS PRO 291-9675 PCB Reed Relay is a high-quality industrial relay designed for reliable electromagnetic switching with minimal mechanical wear. Featuring a 5 V DC coil and single pole normally open (SPNO) contact configuration, this relay provides precise control for various electronic and electrical applications, including automation, control systems, and signal conditioning.
The coil power is rated at a low 125 mW with a coil resistance of 200 Ω, which reduces power consumption and heat generation during operation. The relay supports a maximum switching voltage of 300 V AC/DC and can handle currents up to 0.5 A, making it suitable for signal-level switching and low power devices. Its fast operating time of 0.5 ms ensures responsive performance in dynamic circuits.
With compact dimensions (19.3 mm length, 7.5 mm height, and 7 mm depth), this PCB mounted relay fits easily on circuit boards using its through-hole solder pin terminals. The tin-plated copper alloy contacts offer low contact resistance of 200 mΩ, enhancing signal integrity and reducing loss.
The device offers robust electrical isolation of 2.5 kV DC between coil and contacts, ensuring safety and minimal interference. It is capable of operating reliably in temperatures ranging from -20°C to +70°C, accommodating diverse industrial environments.
Coil power: 125 mW for efficient operation. SPNO contact configuration for standard switching applications. Maximum switching voltage 300 V AC/DC. Maximum switching current 0.5 A AC/DC. Fast operating time of 0.5 ms including bounce.
Low contact resistance of 200 mΩ. Isolation voltage of 2.5 kV DC. Through-hole PCB mount with solder pin terminals. RoHS compliant and manufactured in Germany. Operating temperature range: -20°C to +70°C.
This RS PRO Reed Relay is ideal for industrial, automation, and electronic circuit design applications requiring compact, reliable, and low power switching solutions. It benefits construction, manufacturing, HVAC, and instrumentation fields where durability and precision are necessary.
Explore more RS PRO relay products and related electronic components at EnvMart for high-quality and trusted industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching voltage of this relay is 300 V AC/DC.
The coil resistance of this model is 200 Ω.
It operates reliably in temperatures ranging from -20°C to +70°C.
This relay can handle a maximum current of 0.5 A.
The operating time of this relay is 0.5 milliseconds, including bounce time.
It features a single pole normally open (SPNO) contact configuration.
The relay has a height of 7.5 mm and a length of 19.3 mm.
This relay is designed for PCB mounting with solder pin terminals.
The contact resistance is rated at 200 mΩ.
The isolation voltage between the coil and contact is rated at 2.5 kV DC.
The coil power rating for this relay is 125 mW.
This relay is manufactured in Germany.
